HEADLAMP

DRZ400E 2005 2006 (K5) (K6) USA (E03)

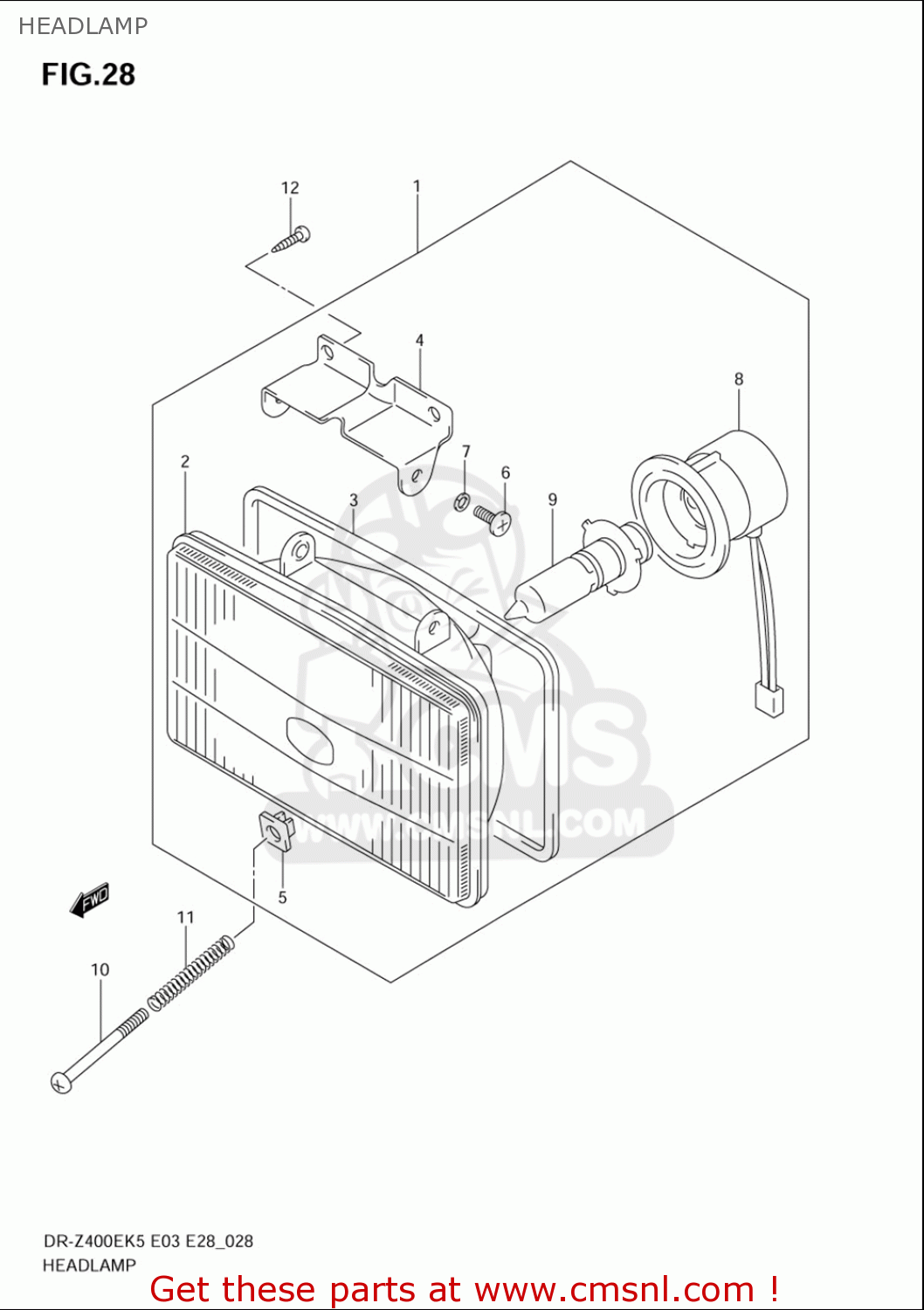

Headlamp diagram DRZ400E 2005 2006 (K5) (K6) USA (E03)

HEADLAMP DRZ400E 2005 2006 (K5) (K6) USA (E03)

HEADLAMP DRZ400E 2005 2006 (K5) (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510003D04
ref: 1

HEADLAMP ASSY

€ 160.50

2

3512103D02
ref: 2

UNIT,LAMP

€ 43.00

3

3512503D00
ref: 3

GASKET,HEADLAMP (NAS)

€ 7.50

4

3523005D00
ref: 4

BRACKET,LAMP

€ 9.00

5

3513512E20
ref: 5

NUT,ADJUSTING

€ 2.50

6

3513616700
ref: 6

SCREW

€ 3.00

7

0832101057
ref: 7

WASHER,LOCK

€ 2.00

8

3517103D03
ref: 8

SOCKET

€ 33.00

9

0947112105
ref: 9

BULB(12V35/36.5W)

€ 75.50

10

0912504034
ref: 10

SCREW(4X75)

€ 4.00

11

0944007075
ref: 11

SPRING

€ 2.00

12

0351104103
ref: 12

SCREW

€ 1.50
