ELECTRICAL

DRZ400E 2005 2006 (K5) (K6) USA (E03)

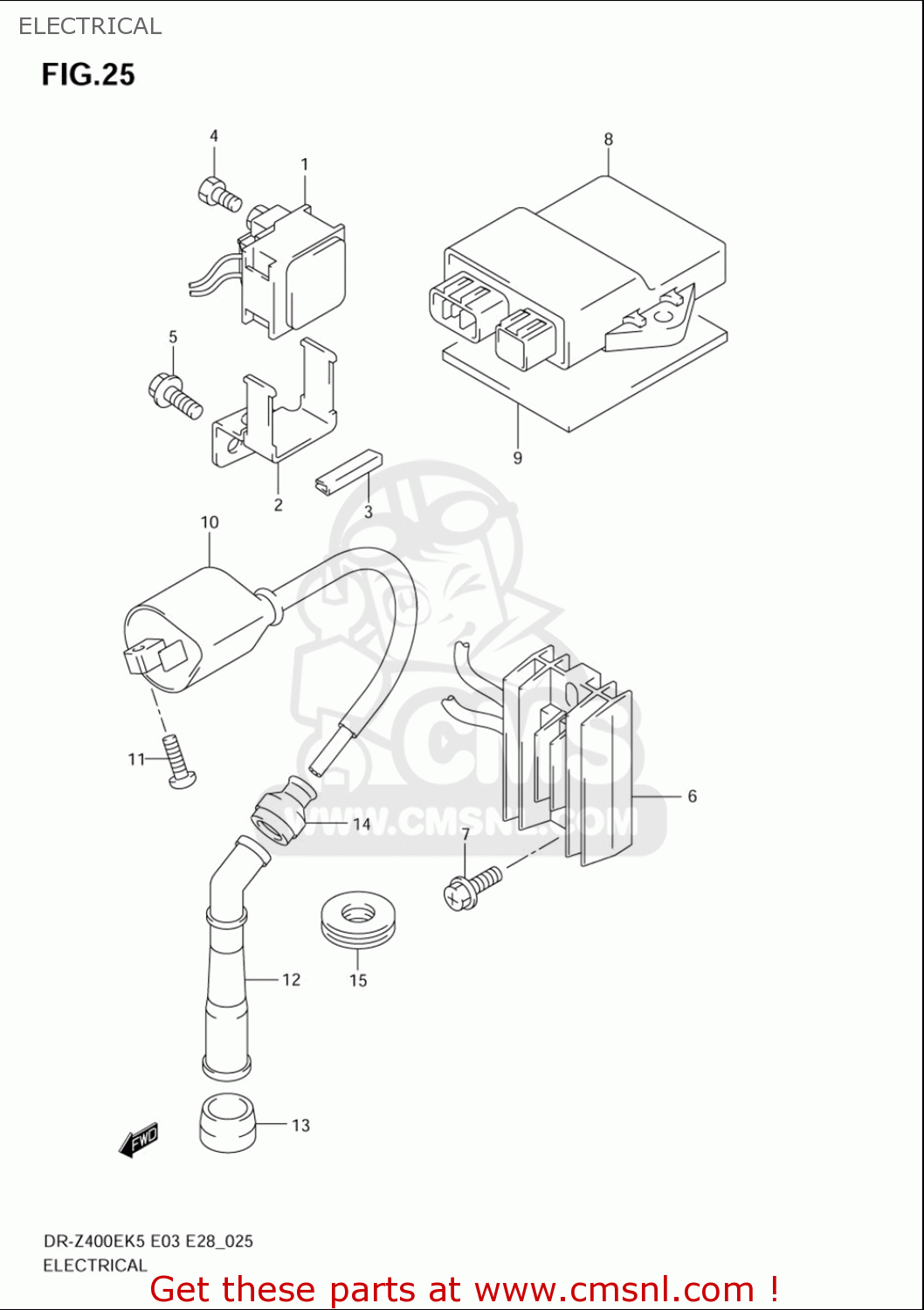

Electrical diagram DRZ400E 2005 2006 (K5) (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

3180029F00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 71.50

3181129F00
ref: 2

BRACKET,STARTING MOTOR RELAY

€ 4.50

3181229F00
ref: 3

PROTECTOR,STARTING MOTOR LEAD

€ 3.50

0912806013
ref: 4

SCREW(6X8)

€ 1.50

015500612A
ref: 5

BOLT

€ 2.50

3280029F00
ref: 6

RECTIFIER ASSY

€ 184.00

0216206203
ref: 7

BOLT

€ 2.00

8-1

3290029F10
ref: 8-1

CDI UNIT

€ 564.50

8-2

3290029F60
ref: 8-2

CDI UNIT

€ 459.00

3365137000
ref: 9

PROTECTOR(170X95X3.0)

€ 5.00

3341009F00
ref: 10

COIL ASSY,IGNITION

€ 76.50

0154706163
ref: 11

BOLT

€ 2.50

3351048B10
ref: 12

CAP,SPARK PLUG

€ 29.50

3354123E01
ref: 13

SEAL,SPARK PLUG CAP

€ 7.00

3354238B00
ref: 14

SEAL,HIGH TENSION CORD

€ 4.50

3354333E01
ref: 15

COVER,SPARK PLUG CAP

€ 4.00
