CYLINDER HEAD COVER

DRZ400E 2005 2006 (K5) (K6) USA (E03)

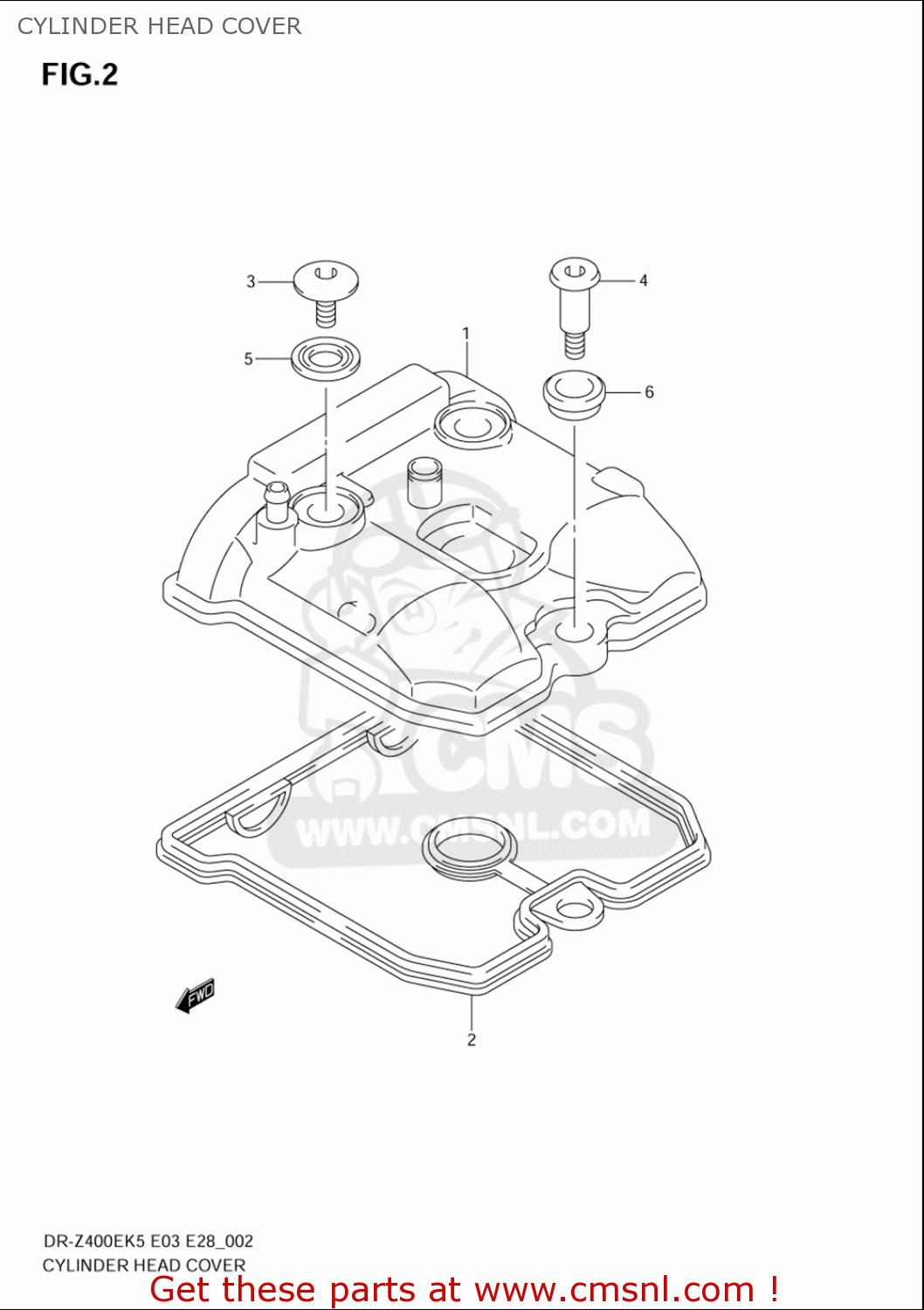

Cylinder head cover diagram DRZ400E 2005 2006 (K5) (K6) USA (E03)

CYLINDER HEAD COVER DRZ400E 2005 2006 (K5) (K6) USA (E03)

CYLINDER HEAD COVER DRZ400E 2005 2006 (K5) (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1117029F00
ref: 1

COVER,CYLINDER HEAD

€ 308.50

2

1117329F00
ref: 2

GASKET,CYL HEAD COVER (NAS)

€ 24.00

3

0910607009
ref: 3

BOLT(7X17.5)

€ 4.50

4

0910607010
ref: 4

BOLT(7X31)

€ 4.50

5

0916111008
ref: 5

WASHER(10.6X25.5X2.3)

€ 4.50

6

1119213E00
ref: 6

CUSHION,HEAD COVER BOLT

€ 4.50
