REAR BRAKE

DRZ400E 2005 2006 (K5) (K6) USA (E03)

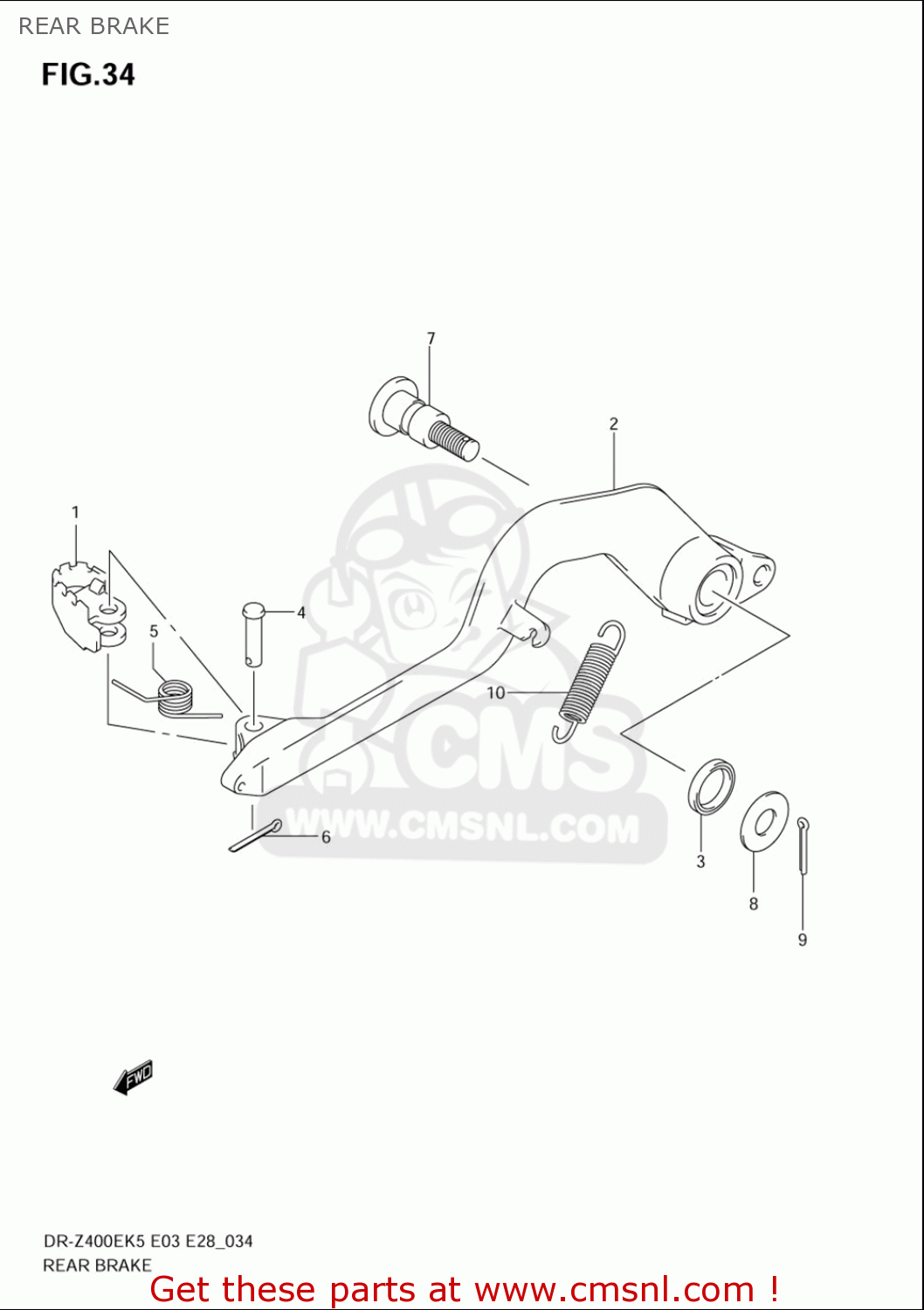

Rear brake diagram DRZ400E 2005 2006 (K5) (K6) USA (E03)

REAR BRAKE DRZ400E 2005 2006 (K5) (K6) USA (E03)

REAR BRAKE DRZ400E 2005 2006 (K5) (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4311043D00
ref: 1

PEDAL,BRAKE

€ 6.00

2

4312029F00
ref: 2

ARM,BRAKE PEDAL

€ 226.00

3

0928415006
ref: 3

SEAL,OIL(15X21X3)

€ 3.50

4

0920006062
ref: 4

PIN(6X23.5)

€ 2.50

5

0944411006
ref: 5

SPRING

€ 3.50

6

0411120158
ref: 6

PIN

€ 1.50

7

4314227C00
ref: 7

SHAFT,BRAKE PEDAL

€ 15.00

8

0821110261
ref: 8

WASHER

€ 2.50

9

041112020A
ref: 9

PIN

€ 1.50

10

0944311033
ref: 10

SPRING

€ 4.50
