TAIL LAMP

DRZ400E 2005 2006 (K5) (K6) USA (E03)

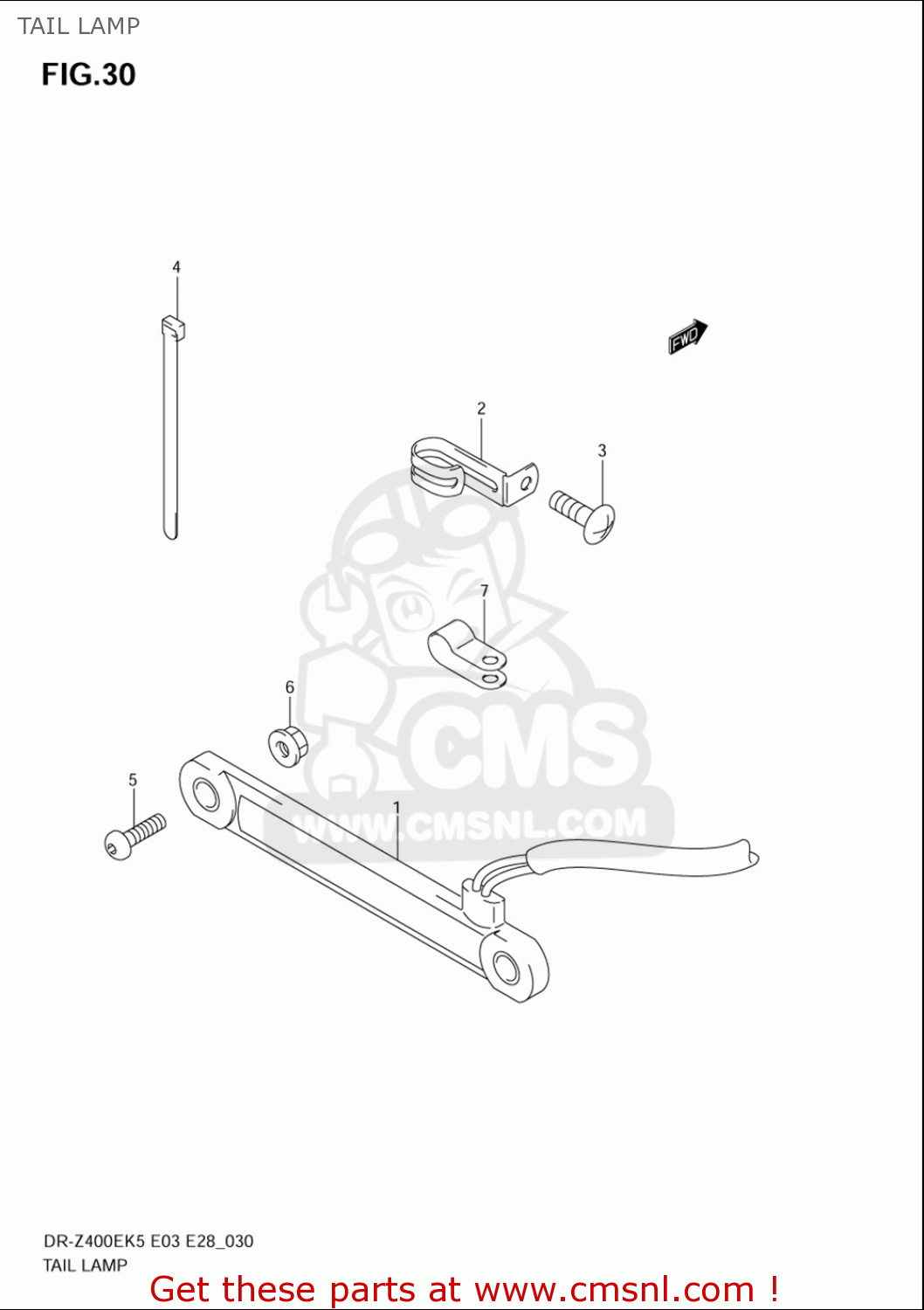

Tail lamp diagram DRZ400E 2005 2006 (K5) (K6) USA (E03)

TAIL LAMP DRZ400E 2005 2006 (K5) (K6) USA (E03)

TAIL LAMP DRZ400E 2005 2006 (K5) (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3571029F00
ref: 1

LAMP ASSY,TAIL

€ 159.50

2

3579329F00
ref: 2

CLAMP,TAIL LAMP LEAD

€ 3.50

3

0913905032
ref: 3

SCREW(5X18)

€ 2.50

4

0940710404
ref: 4

CLAMP(L:100)

€ 4.00

5

035410416A
ref: 5

SCREW

€ 1.50

6

0831931053
ref: 6

NUT

€ 3.00

7

0940306408
ref: 7

CLAMP

€ 2.50
