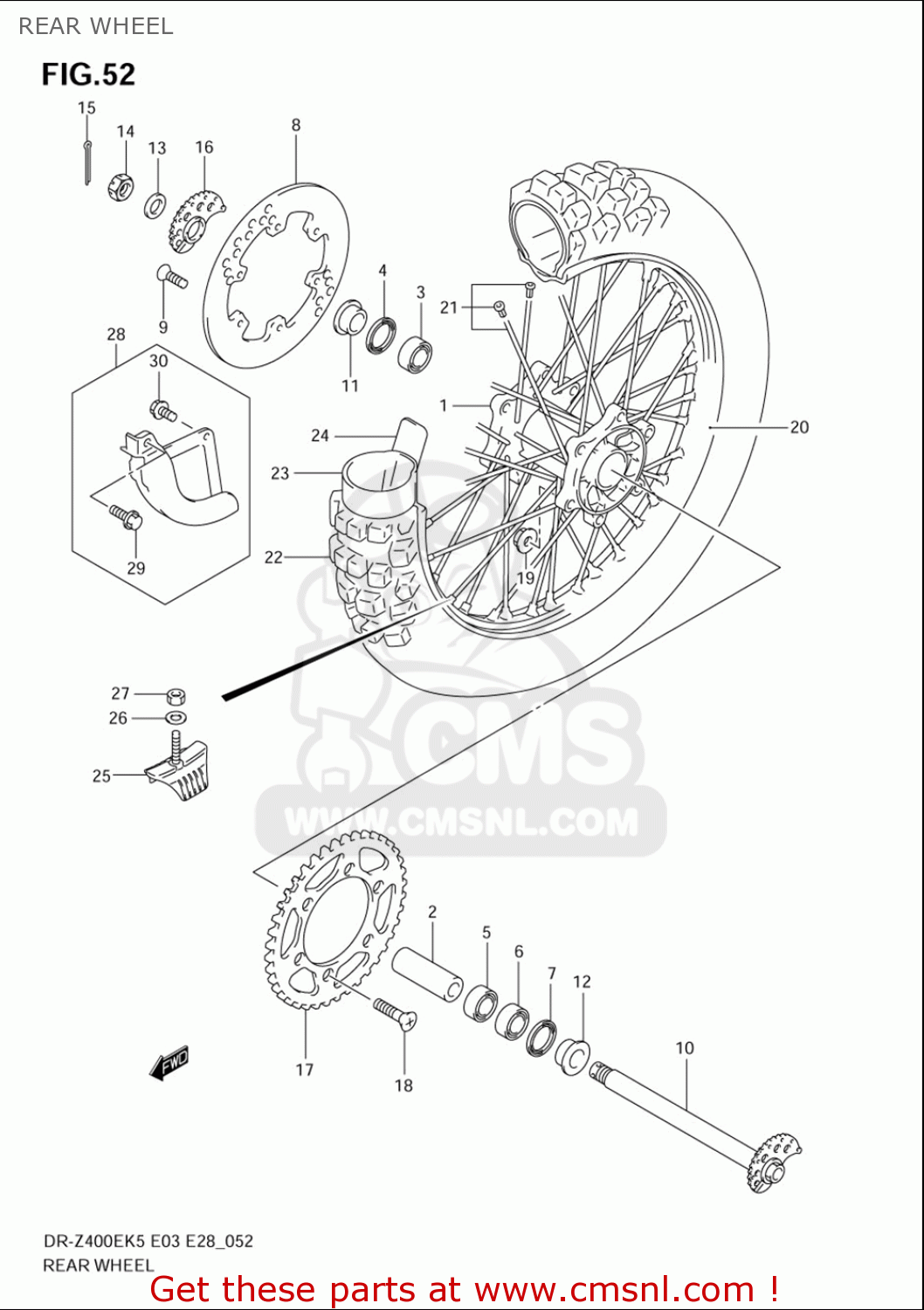

REAR WHEEL

ref

part #

description

quantity

1

6411129F00
ref: 1

HUB,RR WHEEL

€ 183.50

2

6473129F00
ref: 2

SPACER,RR HUB BEARING

€ 20.50

3

0813360047
ref: 3

BEARING

€ 21.00

4

6484128E00
ref: 4

SEAL(29X42X6)

€ 8.50

5

0813360047
ref: 5

BEARING

€ 21.00

6

0812362047
ref: 6

BEARING

€ 17.00

7

0928329006
ref: 7

SEAL,OIL(29X47X6)

€ 9.50

8

6921143D00
ref: 8

DISC,RR BRAKE

€ 160.00

9

0912006014
ref: 9

SCREW(6X18)

€ 2.50

10

6471029F10
ref: 10

AXLE,RR

€ 0.00

11

6475128E20
ref: 11

SPACER,RR AXLE

€ 13.00

13

0916019022
ref: 13

WASHER(19X32X3.2)

€ 5.00

14

083144018A
ref: 14

NUT

€ 4.50

15

041114030A
ref: 15

PIN

€ 1.50

16

6141029F00
ref: 16

ADJUSTER,CHAIN,R

€ 13.50

17

6451129F00
ref: 17

SPROCKET,RR(NT:47-520)

€ 115.00

18

0912008010
ref: 18

BOLT(8X30.5)

€ 2.50

19

083193108A
ref: 19

NUT

€ 2.50

20

6531129F10
ref: 20

RIM,RR WHEEL(18X2.15 AL)

€ 435.50

21

6532029F10
ref: 21

SPOKE SET,RR WHEEL

€ 84.50

22

6511029F00
ref: 22

TIRE,RR(110/100 18 64M)

€ 187.50

23

6520029F00
ref: 23

TUBE ASSY,WHEEL INNER

€ 43.00

24

6526144AF0
ref: 24

PROTECTOR,WHL INR TUBE

€ 4.50

25

6527029F00
ref: 25

STOPPER,BEAD(2.15)

€ 26.00

26

083220108A
ref: 26

WASHER

€ 2.00

27

083100008A
ref: 27

NUT

€ 2.00

28

6920028C00
ref: 28

COVER SET,RR BRAKE DISC

€ 29.50

29

015500620A
ref: 29

BOLT

€ 2.50

30

015500612A
ref: 30

BOLT

€ 2.50
