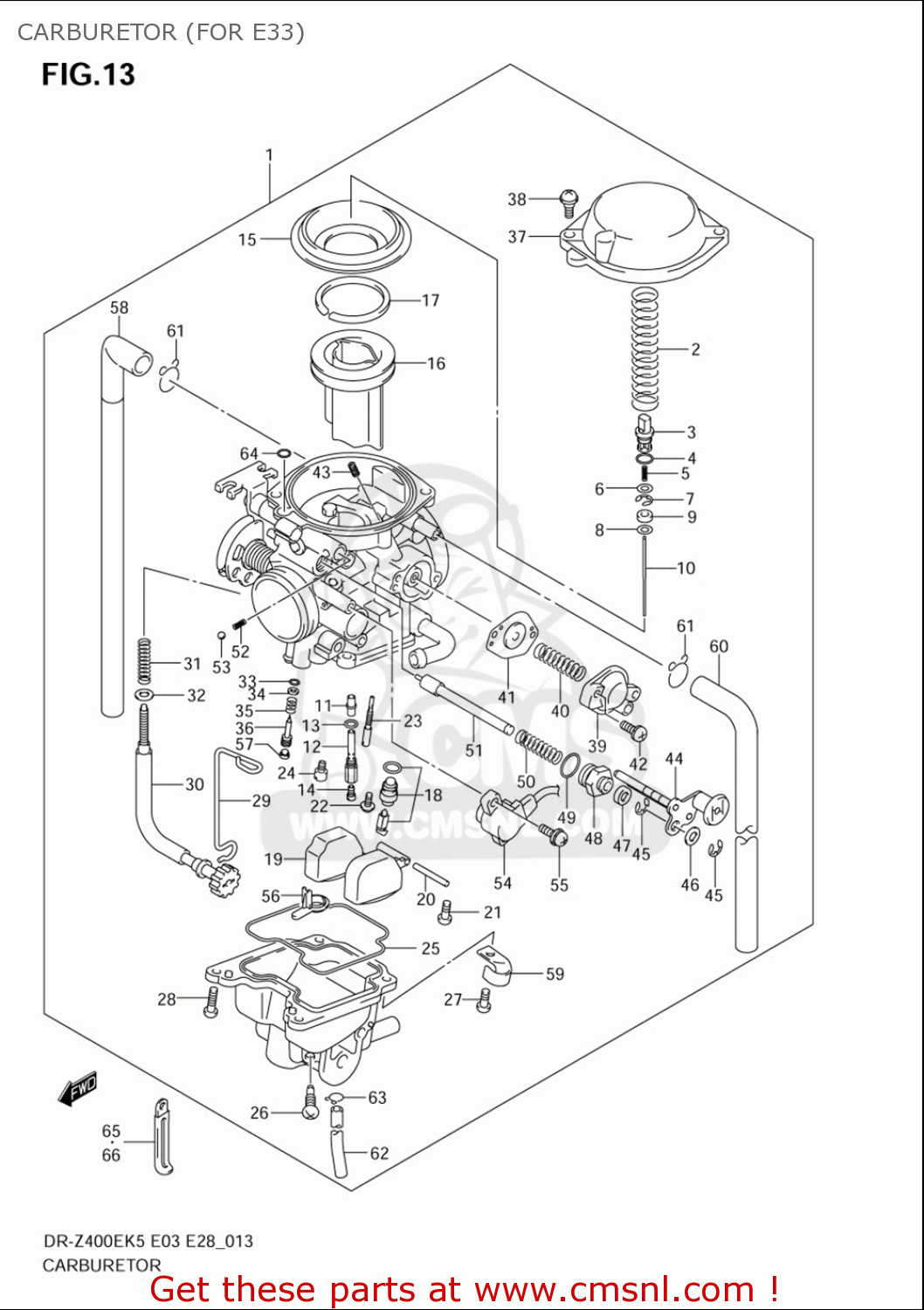

CARBURETOR (FOR E33)

ref

part #

description

quantity

1

1320029F21
ref: 1

CARBURETOR ASSY

€ 366.50

2

1357307F00
ref: 2

SPRING

€ 9.00

3

1341833E00
ref: 3

HOLDER

€ 4.50

4

0928005004
ref: 4

O RING(D:1.9,ID:4.8)

€ 2.00

5

1348104F00
ref: 5

SPRING

€ 2.50

6

1338219E00
ref: 6

WASHER

€ 3.00

7

1339417E60
ref: 7

E RING,MULTIPLE JET NOZZLE

€ 1.50

8

1338713F00
ref: 8

RING

€ 6.00

9

1329129FA0
ref: 9

WASHER

€ 2.50

10

1338329F20
ref: 10

NEEDLE,JET

€ 0.00

11

1334129F20
ref: 11

JET,NEEDLE

€ 0.00

12

1338529FA0
ref: 12

HOLDER,JET

€ 22.00

13

1324643010
ref: 13

O RING

€ 4.00

14

0949128011
ref: 14

JET,MAIN(140)

€ 11.50

15

1350717C01
ref: 15

DIAPHRAGM

€ 24.50

16

1350129FA0
ref: 16

VALVE,PISTON

€ 57.50

17

1350414E00
ref: 17

RING

€ 4.00

18

1337029FA0
ref: 18

VALVE ASSY,NEEDLE

€ 49.00

19

1325004F00
ref: 19

FLOAT ASSY

€ 27.50

20

1325401010
ref: 20

PIN,FLOAT

€ 3.00

21

021120408A
ref: 21

SCREW

€ 2.00

22

1360205A10
ref: 22

SCREW

€ 4.00

23

0949222014
ref: 23

JET,PILOT(22.5)

€ 11.50

24

0949162006
ref: 24

JET,MAIN(62.5)

€ 6.00

25

1325804F00
ref: 25

GASKET (NAS)

€ 9.00

26

1324702340
ref: 26

PLUG,DRAIN

€ 5.50

27

0211204107
ref: 27

SCREW

€ 2.00

28

0211204123
ref: 28

SCREW

€ 1.50

29

1367129FA0
ref: 29

CLIP

€ 12.00

30

1326729FA0
ref: 30

SCREW,ADJUST

€ 40.00

31

1326837420
ref: 31

SPRING,THROTTLE SCREW

€ 3.50

32

1361543010
ref: 32

WASHER,STARTER SHAFT

€ 2.50

33

1329529900
ref: 33

O RING,PILOT AIR SCREW

€ 4.00

34

1329129900
ref: 34

WASHER

€ 2.00

35

1326848700
ref: 35

SPRING,THROTTLE SCREW

€ 3.50

36

1327921G00
ref: 36

ADJUSTER

€ 9.50

37

1350208F00
ref: 37

COVER,DIAPHRAGM

€ 32.00

38

1324733E00
ref: 38

SCREW

€ 3.00

39

1350210F00
ref: 39

COVER ASSY

€ 26.00

40

1348141F20
ref: 40

SPRING

€ 4.50

41

1348010F00
ref: 41

DIAPHRAGM ASSY

€ 15.50

42

1360104148
ref: 42

SCREW

€ 2.50

43

0949231001
ref: 43

JET,PILOT AIR(155)

€ 0.00

44

1342029FA0
ref: 44

PLATE ASSY

€ 42.50

45

1341538300
ref: 45

E RING

€ 2.00

46

1342738300
ref: 46

WASHER

€ 1.50

47

1368231210
ref: 47

CAP,STARTER VALVE

€ 5.00

48

1341844080
ref: 48

GUIDE SCREW,PLUNGER

€ 8.00

49

1327847090
ref: 49

O RING

€ 2.00

50

1341743010
ref: 50

SPRING

€ 3.50

51

1341129FA0
ref: 51

PLUNGER ASSY

€ 20.00

52

1343443010
ref: 52

SPRING

€ 6.50

53

1359693010
ref: 53

BALL,CARBURETOR

€ 3.50

54

1358021F00
ref: 54

SENSOR ASSY

€ 86.50

55

1360219B50
ref: 55

SCREW

€ 3.00

56

1338729FA1
ref: 56

RING

€ 9.00

57

1328105A00
ref: 57

PLUG

€ 3.50

58

1368029F20
ref: 58

PIPE,RUBBER

€ 28.00

59

1367114D00
ref: 59

PLATE

€ 3.00

60

1368429FB0
ref: 60

HOSE,AIR VENT(6.5X10.5)

€ 22.00

61

1367111300
ref: 61

CLIP

€ 4.50

62

1368625D30
ref: 62

HOSE,OVER FLOW(4.5X8X400)

€ 0.00

63

0940108410
ref: 63

CLIP

€ 3.00

64

1329533010
ref: 64

O RING

€ 4.50

65-1

0940406432
ref: 65-1

CLAMP(L:65)

€ 2.50

65-2

0940406432
ref: 65-2

CLAMP(L:65)

€ 2.50

66

0940408420
ref: 66

CLAMP(L:120 T:1.0)

€ 3.50
