FRAME COVER

DRZ400E 2005 2006 (K5) (K6) USA (E03)

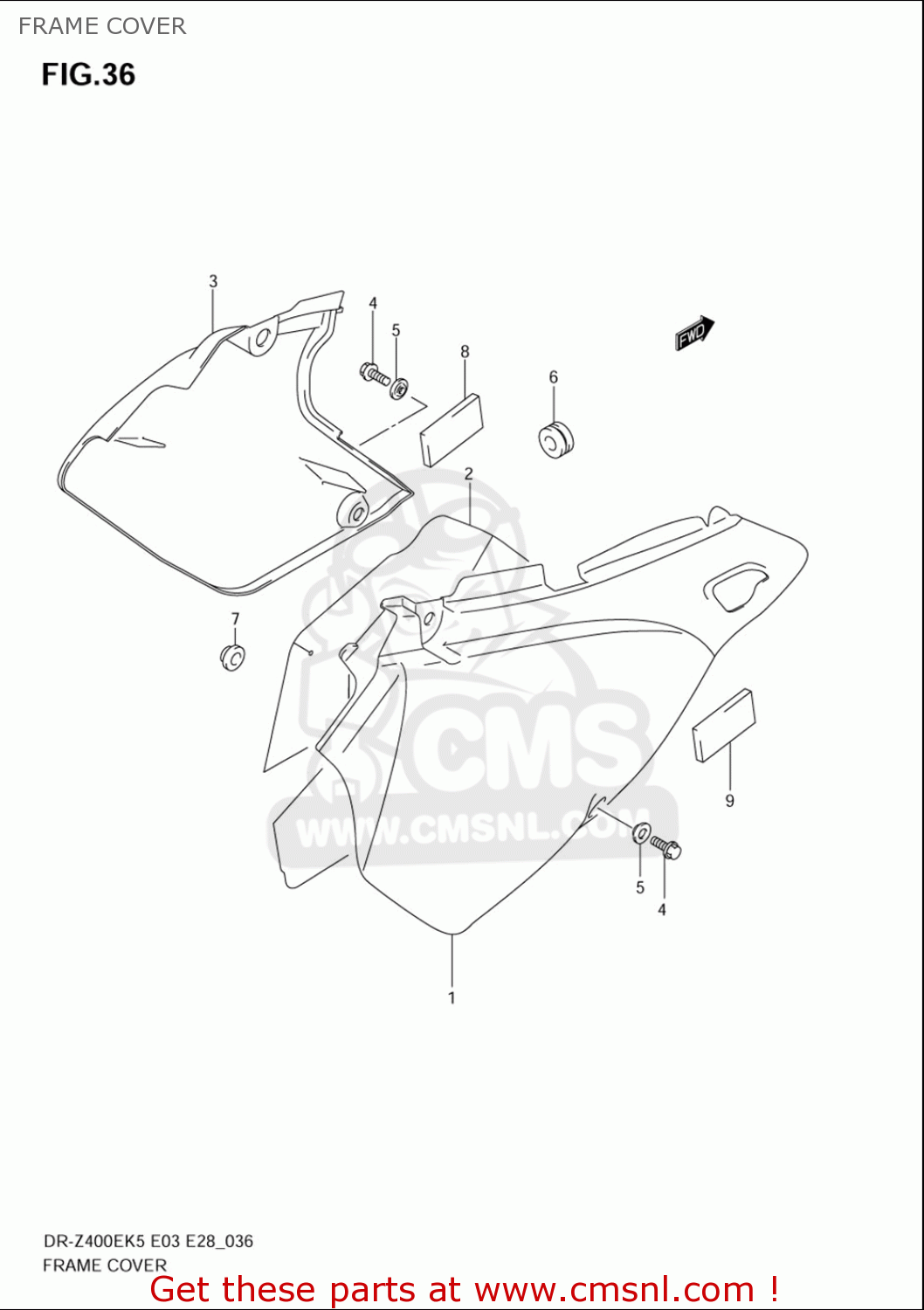

Frame cover diagram DRZ400E 2005 2006 (K5) (K6) USA (E03)

FRAME COVER DRZ400E 2005 2006 (K5) (K6) USA (E03)

FRAME COVER DRZ400E 2005 2006 (K5) (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4711129F0030H
ref: 1

COVER,FRAME,RIGHT

€ 69.50

2

4716629F00
ref: 2

SHIELD,FRAME COVER,R

€ 37.50

3

4721129F1030H
ref: 3

COVER,FRAME,LEFT

€ 34.00

4-1

0154706163
ref: 4-1

BOLT

€ 2.50

4-2

0910306273
ref: 4-2

BOLT(6X12)

€ 2.00

5-1

0916906041
ref: 5-1

WASHER

€ 2.00

5-2

0916906028
ref: 5-2

WASHER

€ 2.00

6

0932006504
ref: 6

CUSHION

€ 4.00

7

0932110018
ref: 7

CUSHION

€ 5.00

8

4716129F00
ref: 8

CUSHION,FRAME COVER,L

€ 3.00

9

7176265G10
ref: 9

CUSHION

€ 4.50
