STAND

DRZ400E 2005 2006 (K5) (K6) USA (E03)

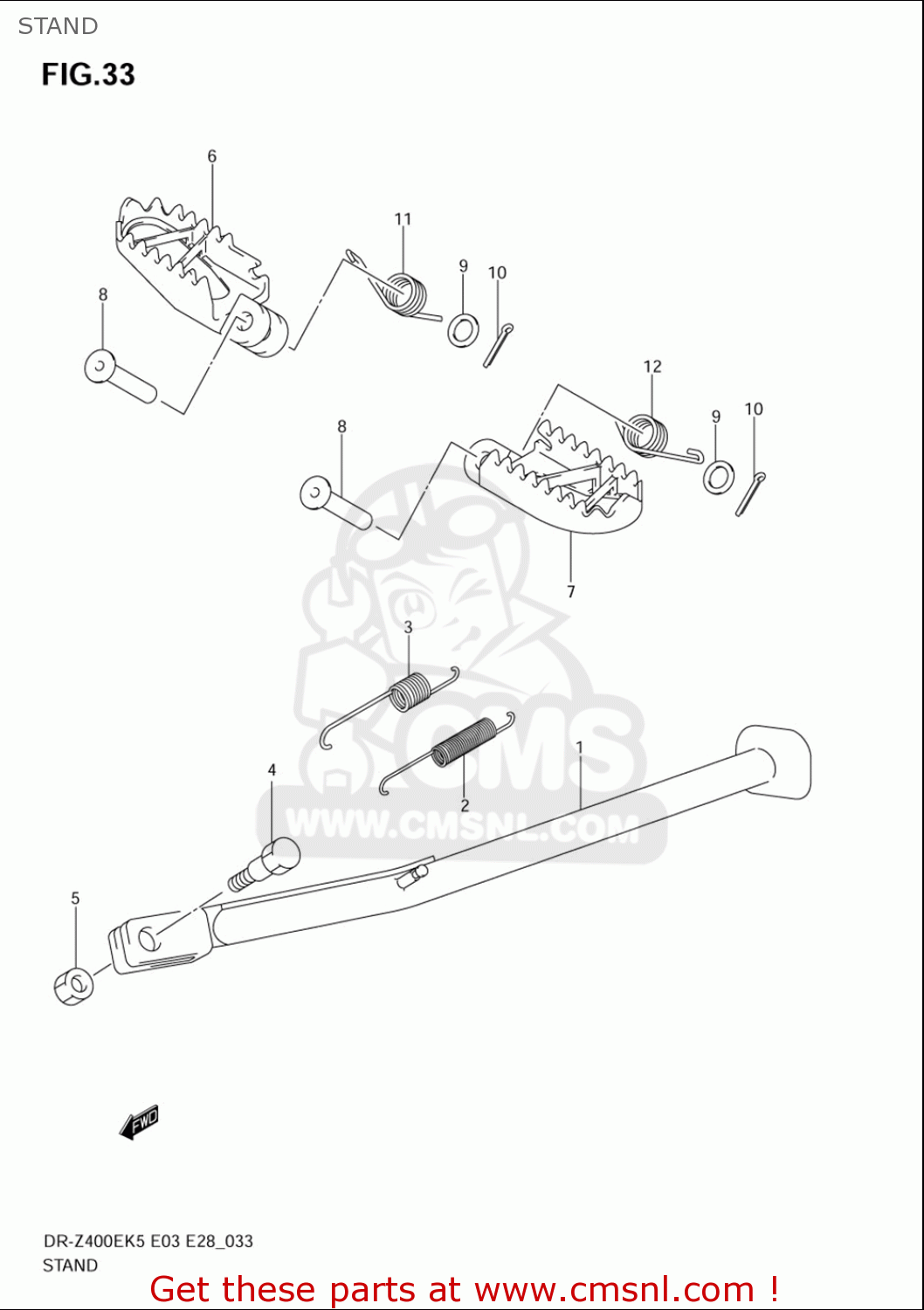

Stand diagram DRZ400E 2005 2006 (K5) (K6) USA (E03)

STAND DRZ400E 2005 2006 (K5) (K6) USA (E03)

STAND DRZ400E 2005 2006 (K5) (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231044E10
ref: 1

STAND,PROP

€ 155.00

2

0944312036
ref: 2

SPRING

€ 7.50

3

0944319010
ref: 3

SPRING

€ 6.00

4

0911110060
ref: 4

BOLT(10X33)

€ 3.50

5

4232103FK0
ref: 5

NUT,PROP STAND

€ 4.50

6

4355136E40019
ref: 6

FOOTREST,R

€ 59.50

7

4356136E40019
ref: 7

FOOTREST,L

€ 59.50

8

0920010019
ref: 8

PIN(10X41.5)

€ 6.00

9

083220110A
ref: 9

WASHER

€ 2.00

10

041112520A
ref: 10

PIN

€ 2.00

11

0944818030
ref: 11

SPRING

€ 5.00

12

0944818029
ref: 12

SPRING

€ 5.00
