STARTER CLUTCH

DRZ400E 2005 2006 (K5) (K6) USA (E03)

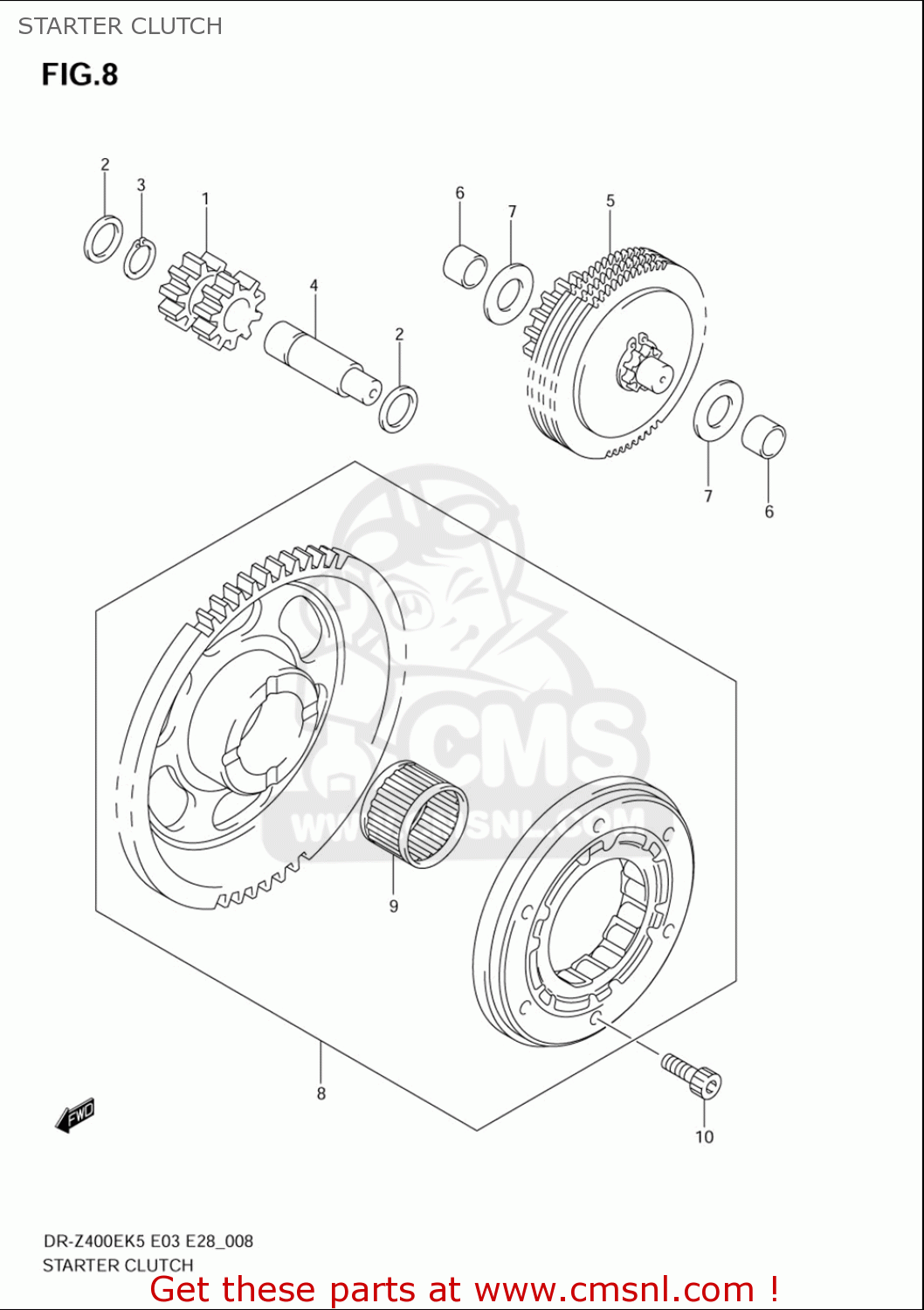

Starter clutch diagram DRZ400E 2005 2006 (K5) (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1261129F00
ref: 1

GEAR,STARTER IDLE NO.1

€ 37.50

0918112130
ref: 2

SHIM(12X18X0.5)

€ 2.50

0833131126
ref: 3

CIRCLIP,12 MM

€ 2.00

1261529F00
ref: 4

PIN,STARTER IDLE GEAR NO.1

€ 12.00

1260029F00
ref: 5

LIMITER ASSY,STARTER IDLE GEAR

€ 191.00

1261831D01
ref: 6

BUSH,LIMITER GEAR SHAFT

€ 17.50

0821110221
ref: 7

WASHER

€ 2.50

1260029810
ref: 8

CLUTCH SET,STARTER

€ 240.50

0926325049
ref: 9

BEARING(25X31X19)

€ 21.50

071300616A
ref: 10

BOLT

€ 3.00
