RIGHT HANDLE LEVER

DRZ400E 2005 2006 (K5) (K6) USA (E03)

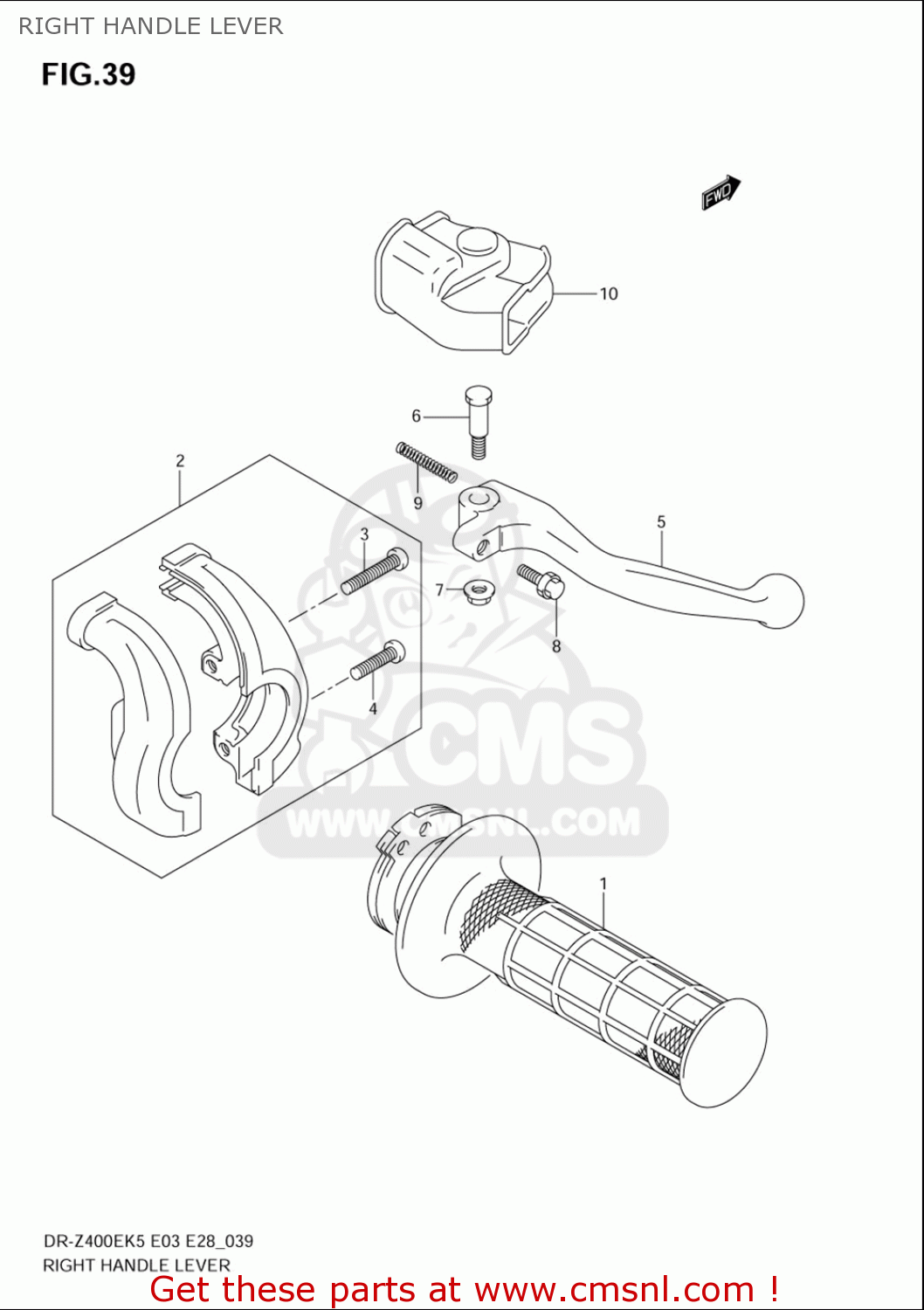

Right handle lever diagram DRZ400E 2005 2006 (K5) (K6) USA (E03)

RIGHT HANDLE LEVER DRZ400E 2005 2006 (K5) (K6) USA (E03)

RIGHT HANDLE LEVER DRZ400E 2005 2006 (K5) (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5711014D11
ref: 1

GRIP,THROTTLE

€ 25.50

2

5710014D00
ref: 2

CASE ASSY,THROTTLE

€ 24.00

3

0912505066
ref: 3

SCREW(5X25)

€ 2.00

4

0211205203
ref: 4

SCREW

€ 2.50

5

5742136E10
ref: 5

LEVER,BRAKE

€ 38.50

6

5743114500
ref: 6

BOLT,BRAKE LEVER

€ 4.00

7

083161006A
ref: 7

NUT

€ 2.50

8

5743036E00
ref: 8

BOLT,ADJUSTER

€ 5.00

9

5731814502
ref: 9

SPRING,RETURN

€ 3.00

10

5734136E00
ref: 10

COVER,BRAKE LEVER

€ 14.50
