CLUTCH

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

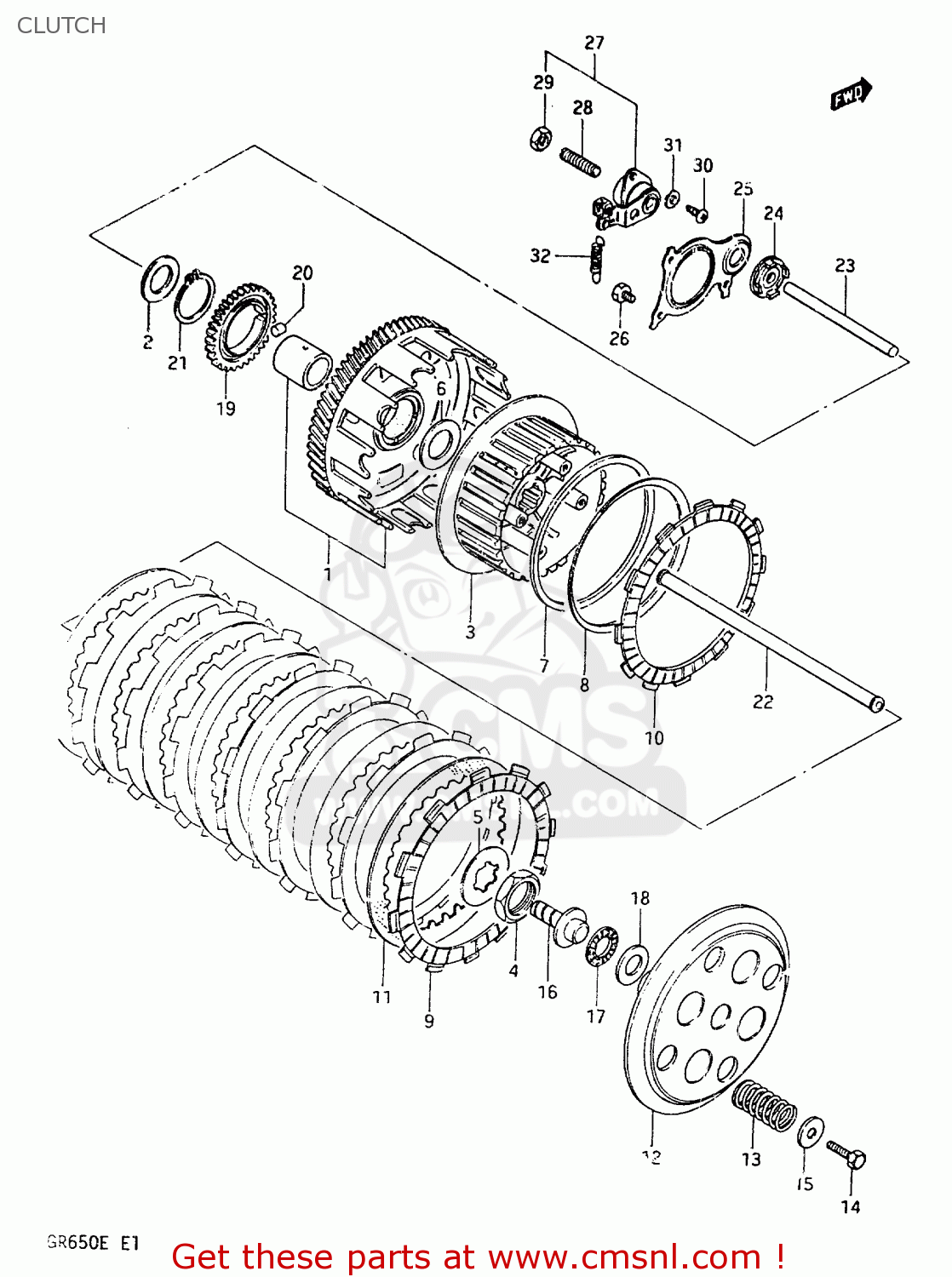

Clutch diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

CLUTCH GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
CLUTCH GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
CLUTCH GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1
2120015830
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 0.00
2
0916025045
ref: 2
WASHER
0916025045
€ 1.50
3
2141015501
ref: 3
HUB,CLUTCH SLEEVE
2141015501
€ 83.00
4
0914022006
ref: 4
NUT
0914022006
€ 6.00
5
0916722005
ref: 5
WASHER,LOCK
0916722005
€ 2.50
6
0916022028
ref: 6
WASHER (22X40X1.5)
0916022028
€ 4.00
7
2147137400
ref: 7
SEAT,WAVE WASHER(T:1.4)
2147137400
€ 8.00
8
0916400004
ref: 8
WASHER
0916400004
€ 9.00
9
2144137400
ref: 9
PLATE,CLUTCH DRIVE (NAS)
2144137400
€ 20.50
10
2144237400
ref: 10
PLATE,CLUTCH DRIVE
2144237400
€ 11.50
11
2145115500
ref: 11
PLATE,CLUTCH DRIVEN
€ 6.50
12
2146238200
ref: 12
DISC,CLUTCH PRESSURE
2146238200
€ 37.00
13
0944020010
ref: 13
SPRING
0944020010
€ 5.00
14
0110706168
ref: 14
BOLT, UPPER
€ 3.00
15
0916006020
ref: 15
WASHER
0916006020
€ 2.00
16
2312144100
ref: 16
PIECE,CLUTCH PUSH
2312144100
€ 21.50
17
0926315003
ref: 17
BEARING(15X28X2)
0926315003
€ 7.00
18
0916015015
ref: 18
WASHER
€ 4.00
19
1632115500
ref: 19
GEAR,OIL PUMP DRIVE
€ 0.00
20
0926106002
ref: 20
PIN(6X6)
0926106002
€ 1.50
21
0833131459
ref: 21
CIRCLIP
€ 2.00
22
2311031300
ref: 22
ROD,CLUTCH PUSH
2311031300
€ 25.00
23
2311115501
ref: 23
ROD,CLUTCH PUSH,L
2311115501
€ 11.50
24
0928506011
ref: 24
SEAL,OIL(6X34X10)
0928506011
€ 9.50
25
2311715501
ref: 25
PLATE,CLUTCH PUSH ROD
€ 4.50
26
0110706128
ref: 26
BOLT
0110706128
€ 2.00
27
2320033400
ref: 27
SCREW ASSEMBLY,RELEASE
2320033400
€ 46.50
28
0913406001
ref: 28
SCREW
0913406001
€ 3.00
29
0831022068
ref: 29
NUT 6MM
€ 2.50
30
0311106168
ref: 30
SCREW
€ 1.50
31
0832221068
ref: 31
WASHER
0832221068
€ 2.00
32
0944308001
ref: 32
SPRING
0944308001
€ 3.00
