CRANKCASE COVER

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

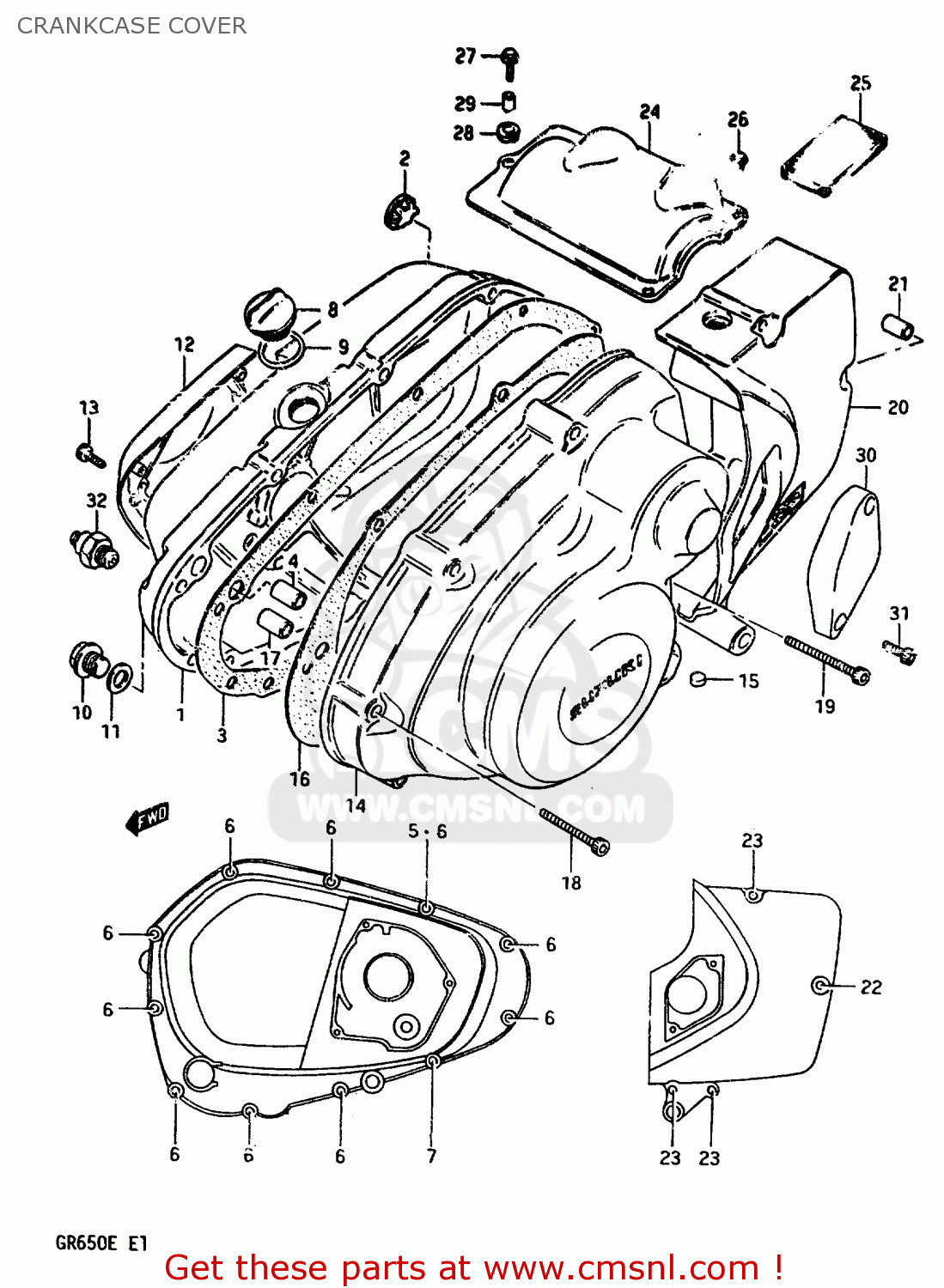

Crankcase cover diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

CRANKCASE COVER GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
CRANKCASE COVER GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
CRANKCASE COVER GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1
1134015501
ref: 1
COVER,CLUTCH
€ 148.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148215502
ref: 3
GASKET,CLUTCH COVER (MCA)
1148215502
€ 29.50
4
0920611005
ref: 4
PIN (11X20)(SUS)
€ 6.50
5
0916806015
ref: 5
WASHER
0916806015
€ 2.00
6
0154706308
ref: 6
BOLT (6X30)
0154706308
€ 2.50
7
0154706408
ref: 7
BOLT (6X40)
0154706408
€ 2.50
8
0925920007
ref: 8
PLUG(20X10)
0925920007
€ 6.50
9
0928017003
ref: 9
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
10
0924714012
ref: 10
PLUG (14X12)
0924714012
€ 3.50
11
0916814004
ref: 11
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
12
1138115500
ref: 12
COVER,CONTACT BREAKER
€ 33.00
13
0711205167
ref: 13
BOLT
€ 2.50
14
1135015501
ref: 14
COVER,MAGNETO
€ 119.00
15
1139315500
ref: 15
MAGNETO
€ 0.00
16
1148315502
ref: 16
GASKET,MAGNETO COVER
€ 26.50
17
0920611005
ref: 17
PIN (11X20)(SUS)
€ 6.50
18
0154706408
ref: 18
BOLT (6X40)
0154706408
€ 2.50
19
0154706508
ref: 19
BOLT (6X50)
0154706508
€ 2.50
20
1136115501
ref: 20
COVER,ENGINE SPROCKET
€ 86.00
21
0421109129
ref: 21
PIN
0421109129
€ 2.00
22
0154706658
ref: 22
BOLT (6X65)
0154706658
€ 2.00
23
0154706508
ref: 23
BOLT (6X50)
0154706508
€ 2.50
24
1138215501
ref: 24
COVER,STARTER MOTOR
€ 19.50
25
1136234200
ref: 25
DAMPER,STARTER MOTOR CLUTCH
€ 5.50
26
0154705084
ref: 26
BOLT
0154705084
€ 2.50
27
0154705165
ref: 27
BOLT 5X16
€ 2.00
28
0932008023
ref: 28
CUSHION
€ 0.00
29
0918005020
ref: 29
SPACER (5.2X9X5)
€ 0.00
30
1138715500
ref: 30
CAP,CLUTCH RELEASE ADJUST
€ 30.00
31
0711205167
ref: 31
BOLT
€ 2.50
32
3782033200
ref: 32
SWITCH ASSEMBLY
3782033200
€ 29.00
