Buy Suzuki GR Parts Online


FRAME

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

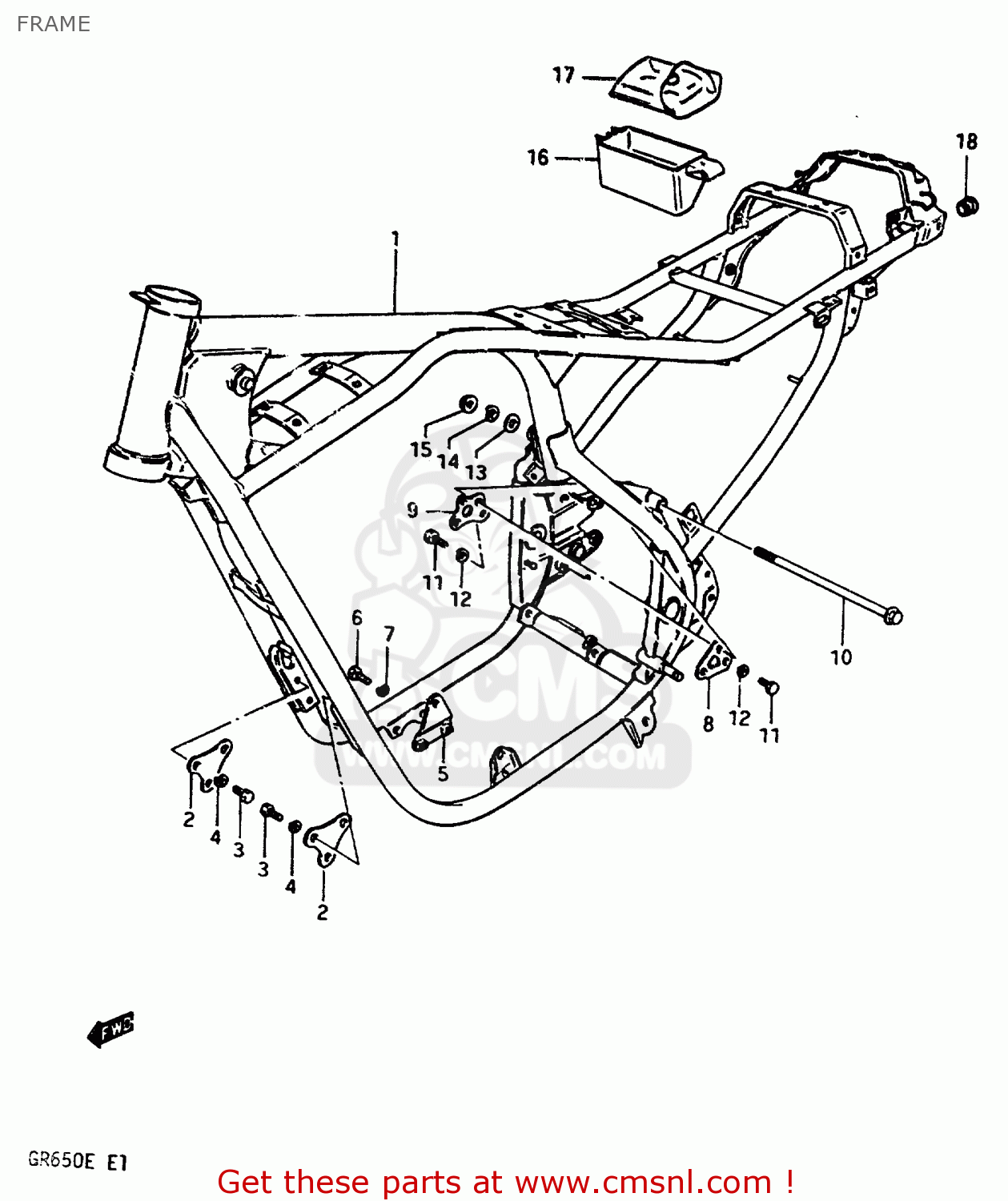

Frame diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

FRAME GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
FRAME GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
FRAME GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
4110015500019
ref: 1-1
FRAME
€ 1,016.50
1-2
4110015540019
ref: 1-2
E15,E17
FRAME (BLACK)
€ 0.00
1-3
4110015530019
ref: 1-3
E16,E18
FRAME (BLACK)
€ 1,150.00
1-4
4110015520019
ref: 1-4
E22,E26
FRAME (BLACK)
€ 0.00
2
4191115500019
ref: 2
PLATE,ENGINE MOUNTING NO
€ 4.50
3
0110708165
ref: 3
BOLT
€ 2.00
4
0832121085
ref: 4
LOCK WASHER
€ 2.50
5
4193015500019
ref: 5
PLATE,ENGINE MOUNTING NO
€ 0.00
6
0110708165
ref: 6
BOLT
€ 2.00
7
0832121085
ref: 7
LOCK WASHER
€ 2.50
8
4197115500019
ref: 8
PLATE,ENGINE MOUNTING NO
€ 0.00
9
4198115500019
ref: 9
PLATE,ENGINE MOUNTING NO
€ 0.00
10
0910308095
ref: 10
BOLT
€ 0.00
11
0110708165
ref: 11
BOLT
€ 2.00
12
0832121085
ref: 12
LOCK WASHER
€ 2.50
13
0832211085
ref: 13
WASHER,8.5X16X
€ 1.50
14
0832131085
ref: 14
LOCK WASHER
€ 2.50
15
0831921085
ref: 15
NUT
0831921085
€ 1.50
16
4743115500
ref: 16
HOLDER,TOOL
€ 0.00
17
0980000255
ref: 17
TOOL SET
€ 52.00
18
0925022002
ref: 18
CAP(OD:26)
0925022002
€ 2.00
up
