SIGNAL GENERATOR

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

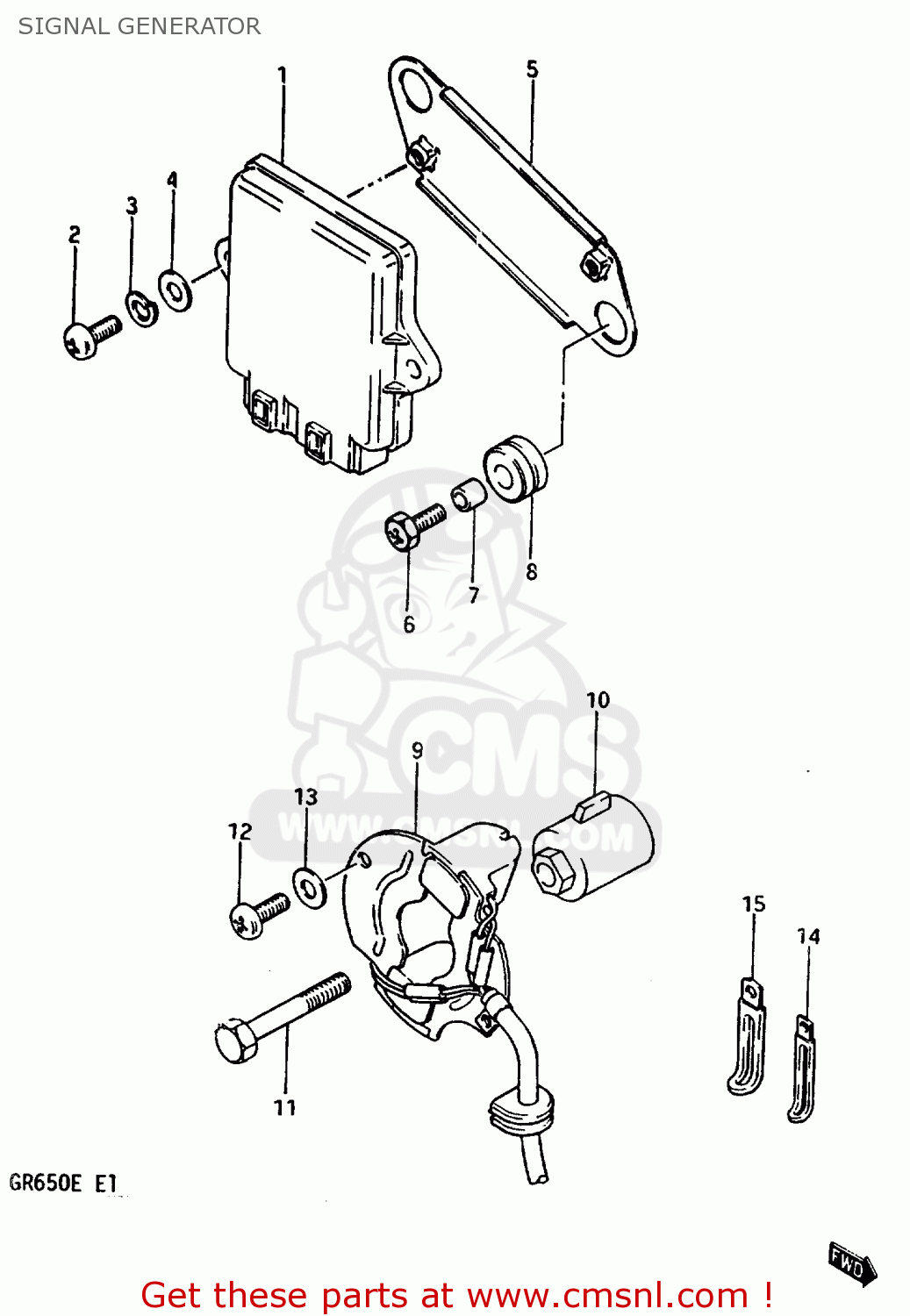

Signal generator diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

3290015500
ref: 1

IGNITER UNIT ASSEMBLY

€ 565.50

0211206168
ref: 2

SCREW

€ 2.50

0832121068
ref: 3

LOCK WASHER

€ 2.50

0832221068
ref: 4

WASHER

€ 2.00

3293115500
ref: 5

BRACKET,IGNITER

€ 0.00

0912806039
ref: 6

SCREW

€ 2.00

0918006092
ref: 7

SPACER(6.2X8.3X6.1)

€ 4.00

0932008007
ref: 8

CUSHION

€ 4.00

3311015500
ref: 9

SIGNAL GENERATOR ASSEMBLY

€ 226.50

3312015500
ref: 10

GOVERNOR ASSEMBLY

€ 73.50

0110708508
ref: 11

BOLT 8X50

€ 3.00

0912505024
ref: 12

SCREW(5X12)

€ 2.00

0916005027
ref: 13

WASHER

€ 2.50

0940406401
ref: 14

CLAMP L:35

€ 2.50

0940408401
ref: 15

CLAMP

€ 3.50
