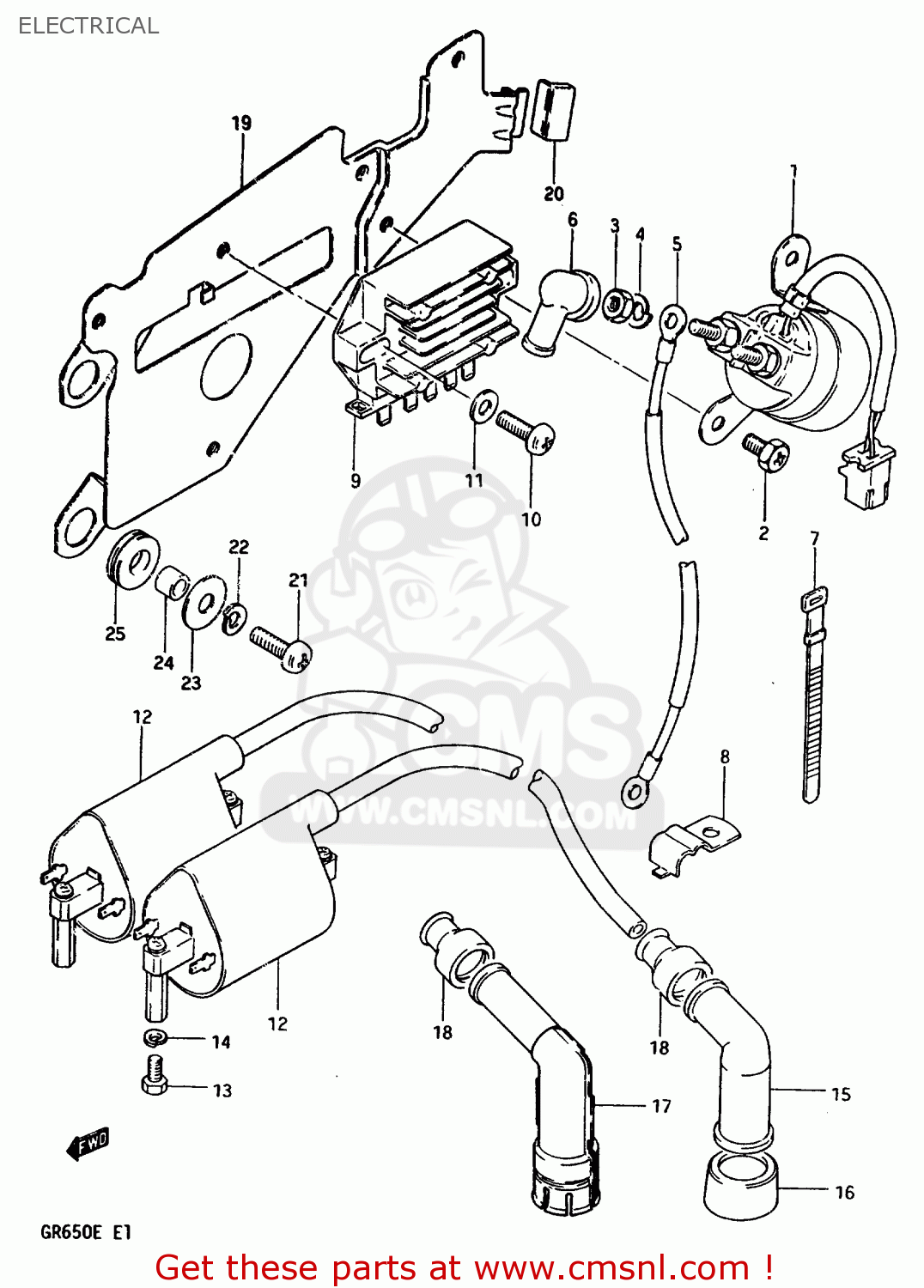

ELECTRICAL

ref

part #

description

quantity

1-1

3180031300
ref: 1-1
MODEL D

RELAY ASSEMBLY,STARTING MOTOR

€ 78.00

1-2

3180015500
ref: 1-2
MODEL E

RELAY ASSEMBLY,STARTING MOTOR

€ 78.00

2

0912806004
ref: 2

SCREW(6X10)

€ 1.50

3

0831022066
ref: 3

NUT

€ 2.00

4

0832121066
ref: 4

WASHER,LOCK

€ 2.00

5-1

3385034301
ref: 5-1
MODEL D

CABLE,STARTING MOTOR

€ 50.00

5-2

3385015520
ref: 5-2
MODEL E

LEAD WIRE, STARTING MOTOR

€ 13.00

6

3186105300
ref: 6
MODEL D

CAP,STARTER MOTOR TERMINAL

€ 4.50

7

0940708401
ref: 7

CLAMP(L:80)

€ 2.50

8

0940305301
ref: 8

CLAMP

€ 0.00

9

3280044130
ref: 9

RECTIFIER ASSEMBLY

€ 235.00

10

0211206208
ref: 10

SCREW

€ 2.00

11

0832221068
ref: 11

WASHER

€ 2.00

12

3341011911
ref: 12

COIL ASSY,IGNITION

€ 149.50

13

0110405108
ref: 13

BOLT

€ 1.50

14

0832121058
ref: 14

LOCK WASHER

€ 2.00

15

3351022010
ref: 15

CAP ASSY,SPARK PLUG

€ 16.50

16

3354138210
ref: 16

SEAL,SPARK PLUG

€ 7.00

17

3351005210
ref: 17
E16

CAP, SPARK PLUG

€ 0.00

18

3354298000
ref: 18

SEAL,SPARK PLU

€ 4.50

19

4742015500
ref: 19

PLATE, PARTS HOLDER

€ 0.00

20

4711702400
ref: 20

CUSHION,FRAME COVER

€ 2.00

21

0211206166
ref: 21

SCREW

€ 2.00

22

0832121066
ref: 22

WASHER,LOCK

€ 2.00

23

0916006007
ref: 23

WASHER

€ 2.00

24

0918006027
ref: 24

SPACER (6.3X9.1X6.7)

€ 3.00

25

0932008007
ref: 25

CUSHION

€ 4.00

all assemblies
