CYLINDER

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

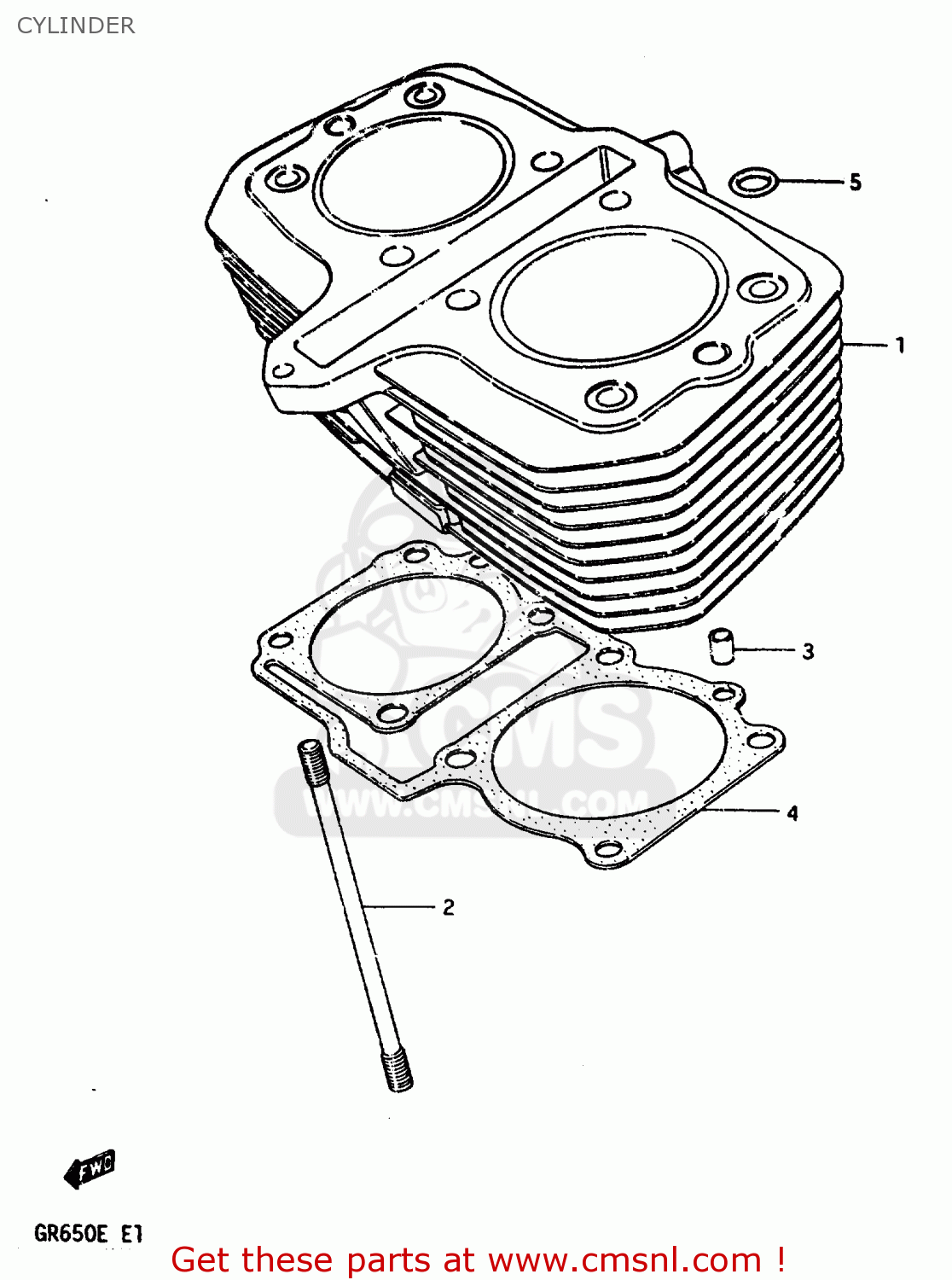

Cylinder diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

CYLINDER GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

CYLINDER GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

1-1

1121015502
ref: 1-1
MODEL D

CYLINDER

€ 674.00

1-2

1121015504
ref: 1-2
MODEL E

CYLINDER

€ 674.00

2

0910810054
ref: 2

STUD

€ 6.00

3

0421109129
ref: 3

PIN

€ 2.00

4

1124115504
ref: 4

GASKET,CYLINDER (MCA)

€ 39.00

5

0928011005
ref: 5

O RING(D:2.4,ID:11)

€ 4.50
