RIGHT HANDLE SWITCH

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

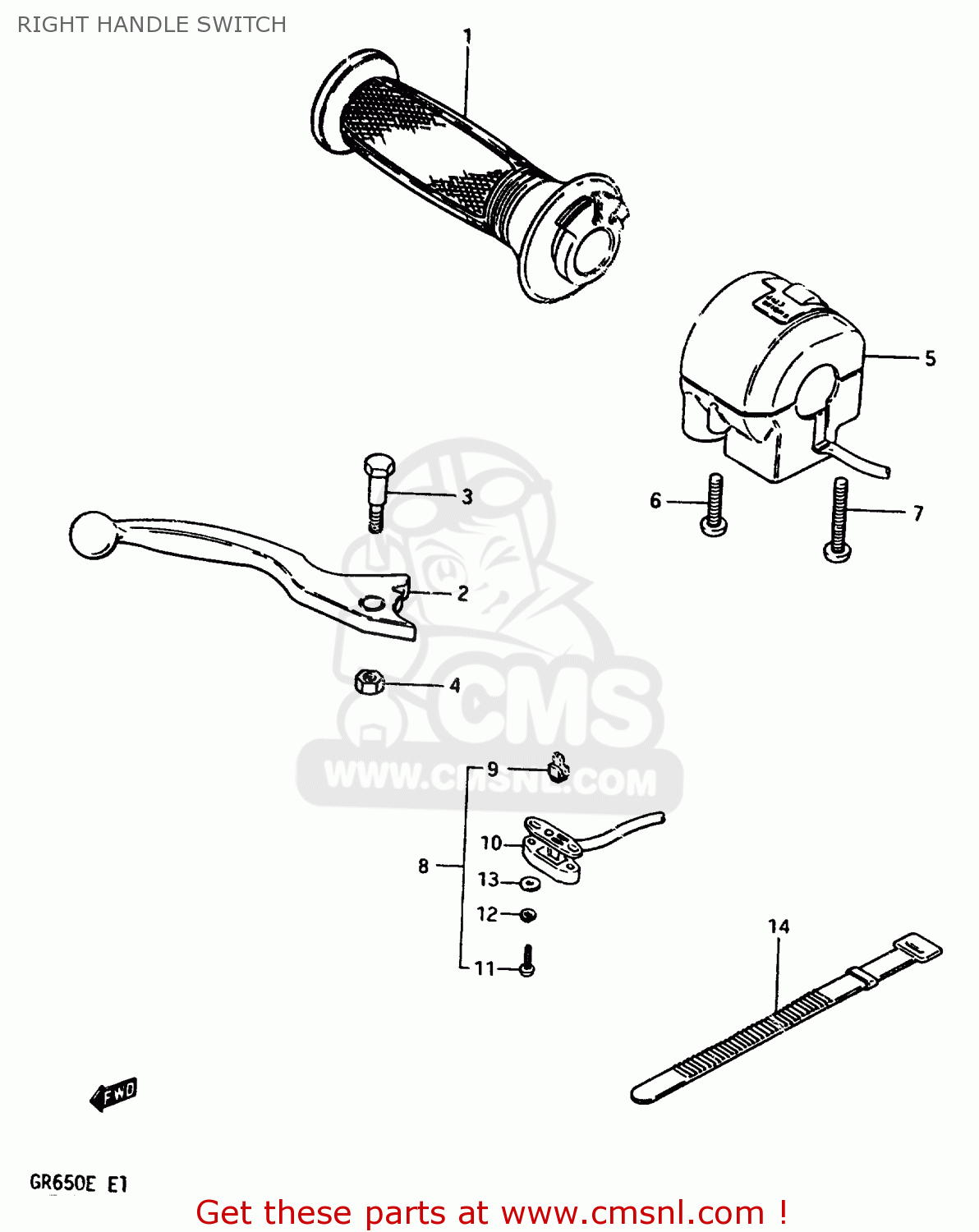

Right handle switch diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

RIGHT HANDLE SWITCH GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
RIGHT HANDLE SWITCH GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
RIGHT HANDLE SWITCH GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1
5711015500
ref: 1
GRIP,THROTTLE
5711015500
€ 26.00
2
5742049101
ref: 2
LEVER,BRAKE
5742049101
€ 36.50
3
5743118621
ref: 3
BOLT
5743118621
€ 8.00
4
0831921068
ref: 4
NUT 6MM
0831921068
€ 2.00
5-1
3720034320
ref: 5-1
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 74.50
5-2
3720034340
ref: 5-2
E34
SWITCH ASSY, HANDLE RH
€ 111.50
5-3
3720034310
ref: 5-3
GR650XD/XE E1,E24GR6
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 86.50
6
0211205255
ref: 6
SCREW
€ 2.00
7
0211205255
ref: 7
SCREW
€ 2.00
8
5746049300
ref: 8
SWITCH ASSEMBLY
5746049300
€ 40.00
9
5746518601
ref: 9
CONTACT,SWITCH
5746518601
€ 4.50
10
5748133010
ref: 10
COVER,FR BK TERMINAL BASE
5748133010
€ 19.50
11
0912503105
ref: 11
SCREW
0912503105
€ 2.50
12
0832121038
ref: 12
LOCK WASHER
€ 1.50
13
0832221038
ref: 13
WASHER
0832221038
€ 2.00
14
0940712402
ref: 14
CLAMP(L:120)
0940712402
€ 3.00
