REAR COMBINATION LAMP (E22)

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

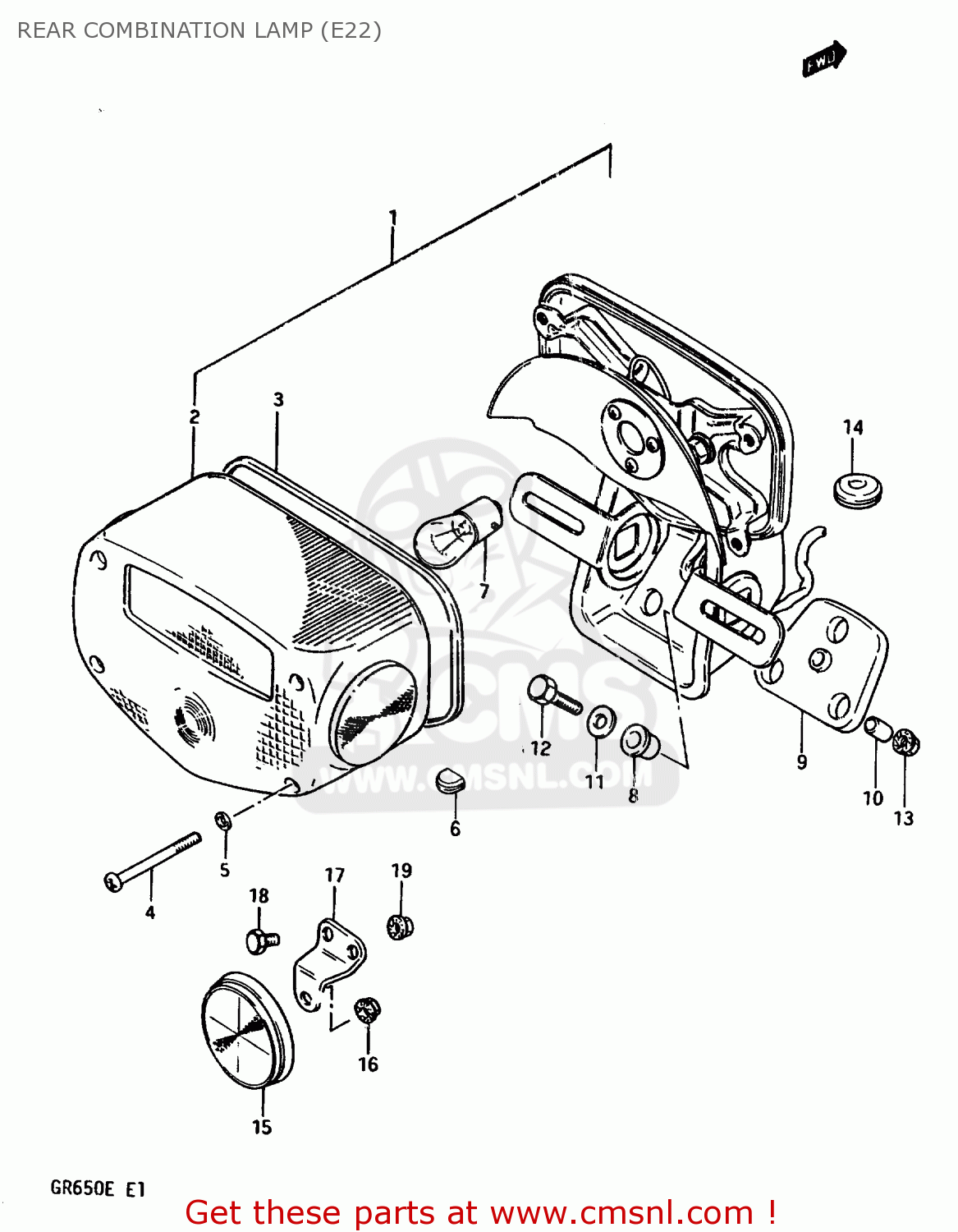

Rear combination lamp (e22) diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

REAR COMBINATION LAMP (E22) GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
REAR COMBINATION LAMP (E22) GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
REAR COMBINATION LAMP (E22) GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1
3571015590
ref: 1
LAMP ASSY, REAR COMBINATION
3571015590
€ 182.50
2
3571245631
ref: 2
LENS,RR COMBIN
3571245631
€ 41.00
3
3571345010
ref: 3
GASKET (NAS)
3571345010
€ 9.00
4
0912504002
ref: 4
SCREW (4X55)
0912504002
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
3572845630
ref: 6
GROMMET
€ 0.00
7
0947112046
ref: 7
EXECUTED LOCALLY
BULB(12V21/5W)
0947112046
€ 1.50
8
3576447290
ref: 8
CUSHION
3576447290
€ 2.00
9
3576547290
ref: 9
CUSHION
€ 0.00
10
3576637120
ref: 10
SPACER
3576637120
€ 2.50
11
0916006027
ref: 11
WASHER (6.5X20X1.2)
0916006027
€ 2.00
12
0110706258
ref: 12
BOLT
€ 2.00
13
0831626068
ref: 13
NUT 6MM
0831626068
€ 2.00
14
0930809001
ref: 14
GROMMET
€ 0.00
15
3597049030
ref: 15
REFLEX REFLECTOR,RR
3597049030
€ 27.00
16
0831626058
ref: 16
NUT 5MM
€ 2.00
17
3597438370
ref: 17
BRACKET, REAR RR.
€ 0.00
18
0110705108
ref: 18
BOLT 5X10
0110705108
€ 1.50
19
0831626058
ref: 19
NUT 5MM
€ 2.00
