REAR FENDER

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

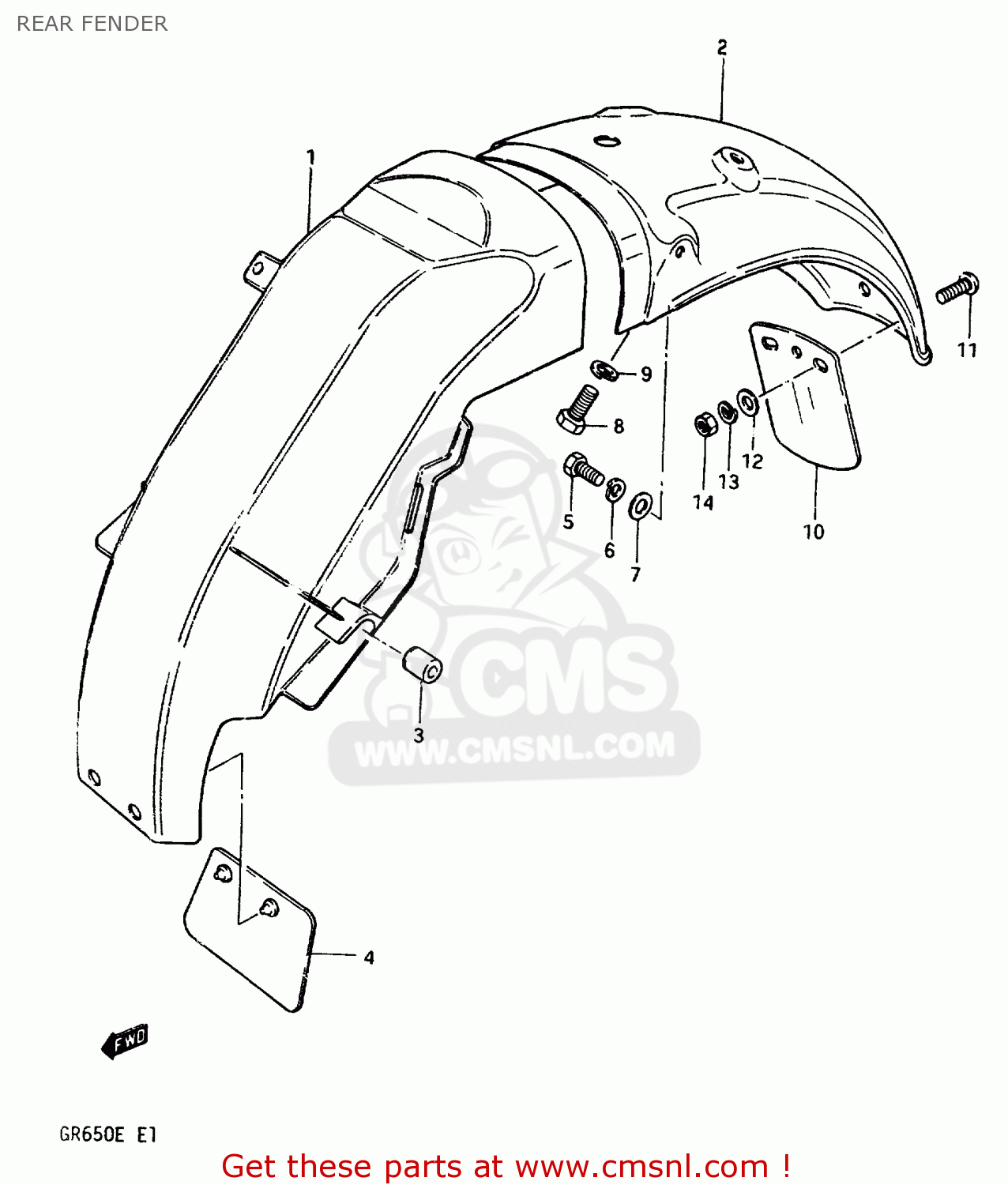

Rear fender diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

REAR FENDER GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

REAR FENDER GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

1

6311215500
ref: 1

BODY,REAR FENDER,FRONT

€ 66.50

2-1

6311015500
ref: 2-1

FENDER,REAR

€ 122.50

2-2

6311015510
ref: 2-2
E16,E24,E26,MODEL D

FENDER, REAR

€ 130.50

2-3

6311015520
ref: 2-3
E17,E22

FENDER, REAR

€ 111.00

2-4

6311015530
ref: 2-4
E15,MODEL D E18

FENDER, REAR

€ 0.00

3

0932905003
ref: 3

CUSHION

€ 4.50

4

6341131900
ref: 4

GUIDE,RR FENDER MUD

€ 8.00

5

0110706168
ref: 5

BOLT, UPPER

€ 3.00

6

0832121068
ref: 6

LOCK WASHER

€ 2.50

7

0832221068
ref: 7

WASHER

€ 2.00

8

0110708258
ref: 8

BOLT

€ 2.50

9

0832121088
ref: 9

LOCK WASHER

€ 2.00

10

6333133601
ref: 10
E15 MODEL D E18

FLAP,RR FENDER MUD

€ 21.50

11

0214206167
ref: 11
E15, MODEL D E18

SCREW

€ 2.00

12

0916006007
ref: 12
E15,MODEL D E18

WASHER

€ 2.00

13

0832121068
ref: 13
E15,MODEL D E18

LOCK WASHER

€ 2.50

14

0831011068
ref: 14
E15, MODEL D E18

NUT

€ 2.50
