FUEL TANK (GR650E)

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

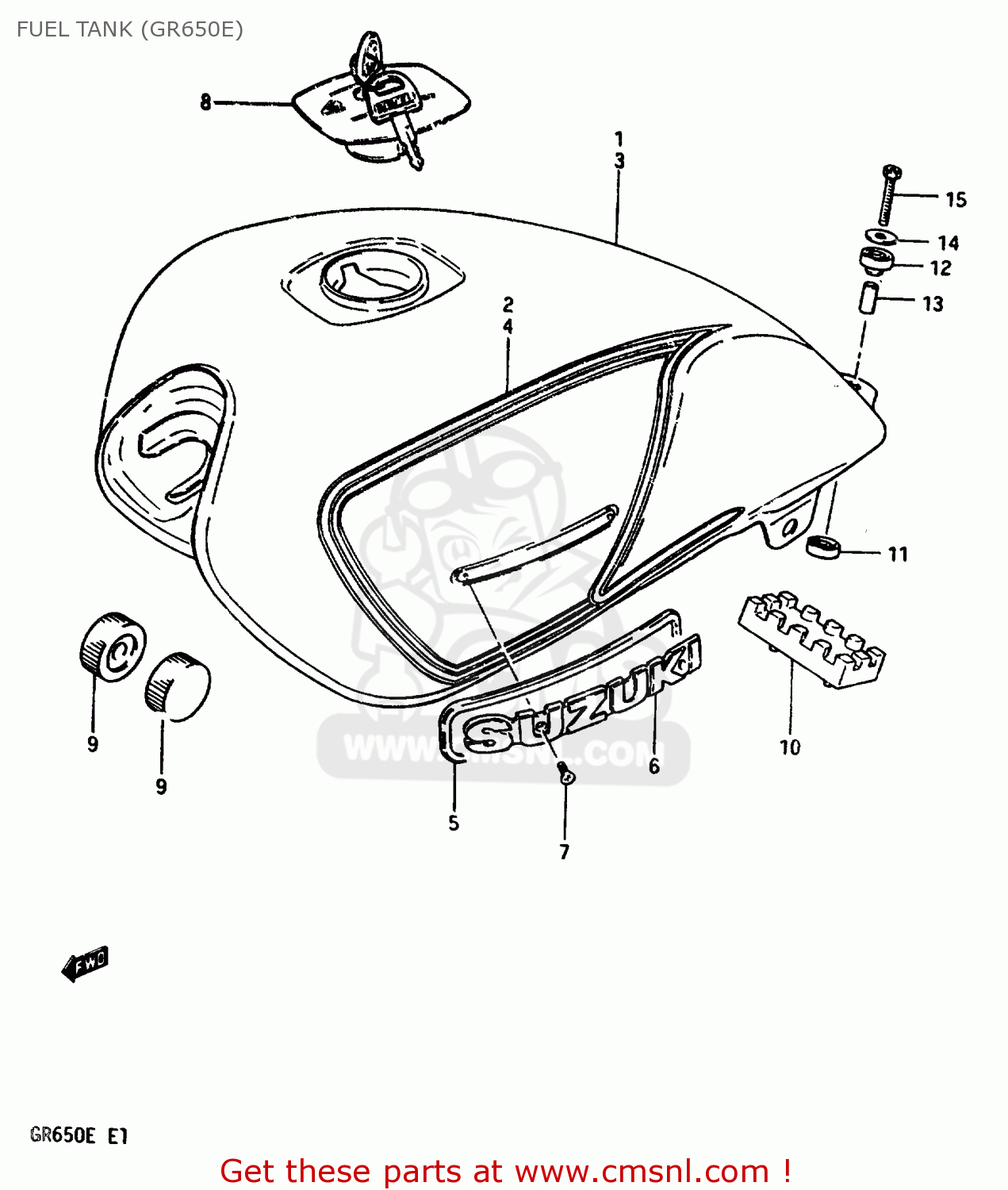

Fuel tank (gr650e) diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

FUEL TANK (GR650E) GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
FUEL TANK (GR650E) GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
FUEL TANK (GR650E) GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1
441001552086M
ref: 1
TANK, FUEL
€ 364.50
2
681101552082S
ref: 2
TAPE SET, FUEL TANK
€ 0.00
3
441001552099A
ref: 3
TANK, FUEL
€ 364.50
4
681101552099C
ref: 4
TAPE SET, FUEL TANK
€ 0.00
5
4417544200
ref: 5
E22
CUSHION
4417544200
€ 5.00
6
6811115500
ref: 6
EMBLEM,FUEL TANK
6811115500
€ 28.50
7
0213203065
ref: 7
SCREW 3X6
0213203065
€ 2.00
8
4420049017KEY
ref: 8
CAP SET,FUEL TANK
€ 121.00
9
0932910016
ref: 9
CUSHION
0932910016
€ 3.00
10
4454134500
ref: 10
CUSHION,FUEL TANK CTR
4454134500
€ 13.00
11
0932014013
ref: 11
CUSHION
0932014013
€ 3.00
12
0932010020
ref: 12
CUSHION
0932010020
€ 4.00
13
0918006107
ref: 13
SPACER (6.4X9X20)
0918006107
€ 3.00
14
0916006004
ref: 14
WASHER (6.5X24X1.6)
0916006004
€ 1.50
15
0110706308
ref: 15
BOLT
0110706308
€ 2.50
