GENERATOR

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

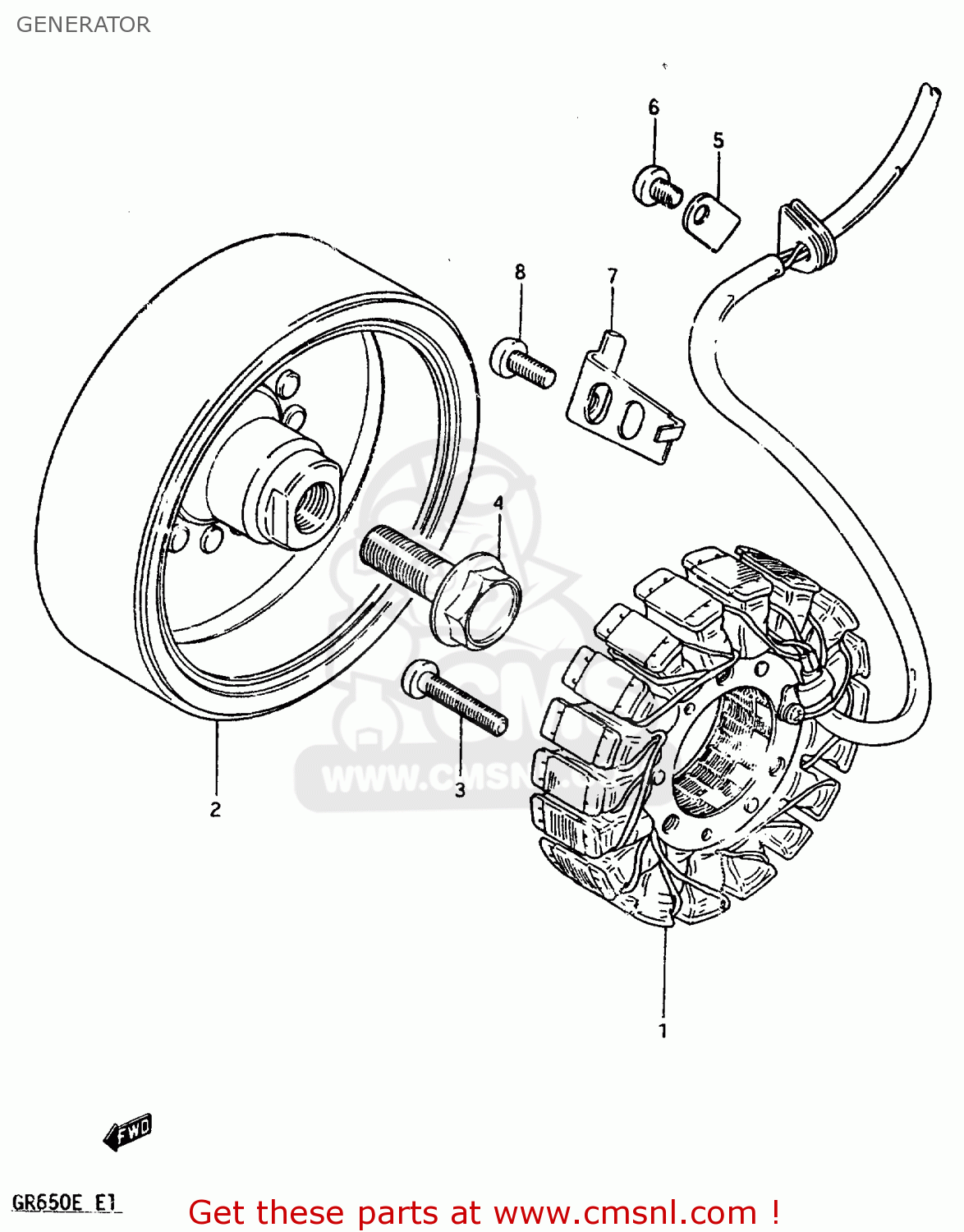

Generator diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

3140115500
ref: 1

STARTER ASSY

€ 372.50

2-1

3140215500
ref: 2-1
E. NO.107495

ROTOR ASSEMBLY

€ 0.00

2-2

3140215501
ref: 2-2
E.NO.107496

ROTOR

€ 244.50

0211205308
ref: 3

SCREW

€ 1.50

0910312004
ref: 4

BOLT(12X40)

€ 3.00

3149715500
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 12.50

0211205108
ref: 6

SCREW

€ 2.00

3149815500
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 0.00

0211206108
ref: 8

SCREW

€ 1.50
