FUEL TANK (GR650XE)

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

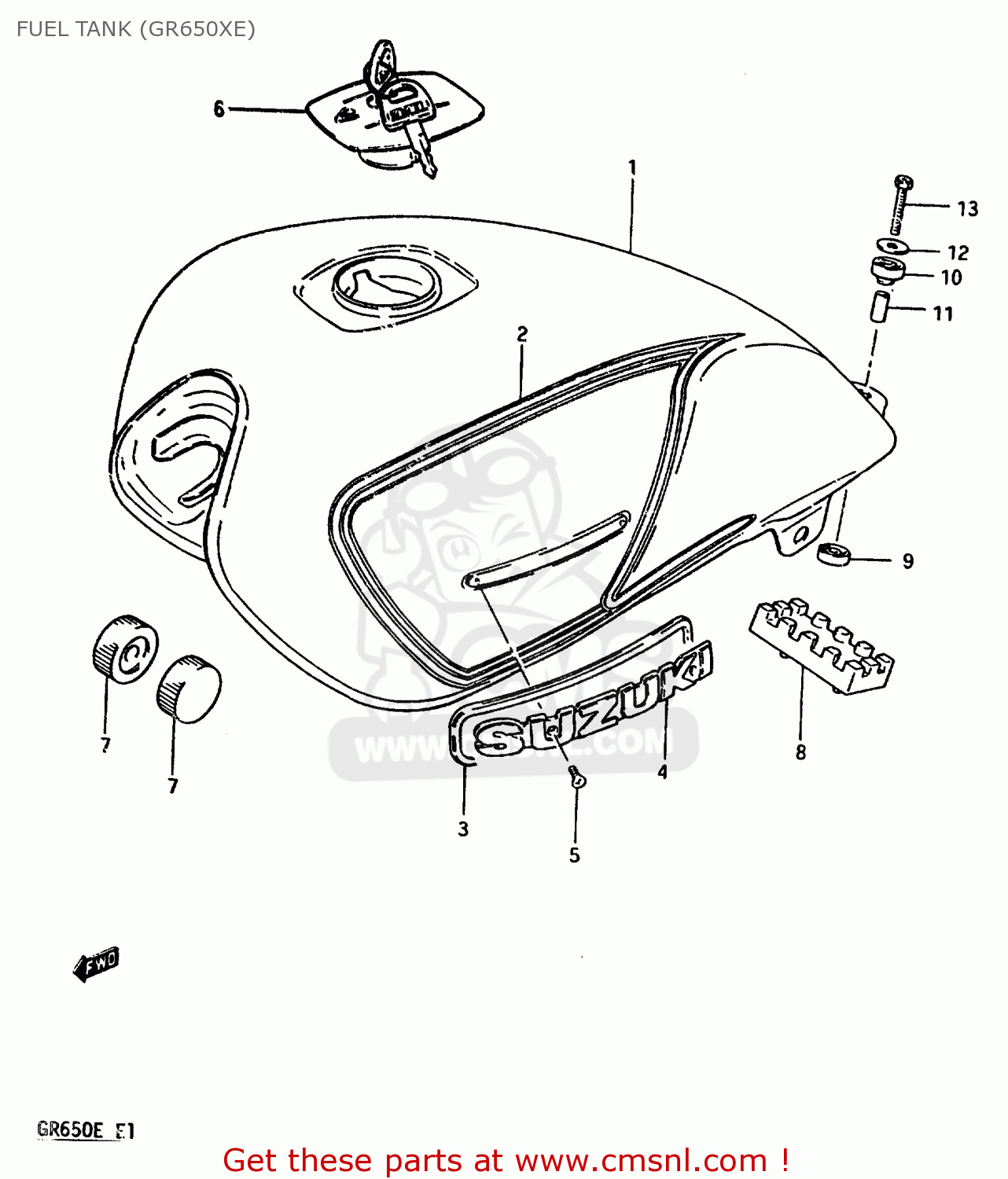

Fuel tank (gr650xe) diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

4410015520OOJ
ref: 1

TANK, FUEL (RED)

€ 0.00

681101552081G
ref: 2

TAPE SET

€ 0.00

4417544200
ref: 3
E22

CUSHION

€ 5.00

6811115500
ref: 4

EMBLEM,FUEL TANK

€ 28.50

0213203065
ref: 5

SCREW 3X6

€ 2.00

4420049017KEY
ref: 6

CAP SET,FUEL TANK

€ 121.00

0932910016
ref: 7

CUSHION

€ 3.00

4454134500
ref: 8

CUSHION,FUEL TANK CTR

€ 13.00

0932014013
ref: 9

CUSHION

€ 3.00

0932010020
ref: 10

CUSHION

€ 4.00

0918006107
ref: 11

SPACER (6.4X9X20)

€ 3.00

0916006004
ref: 12

WASHER (6.5X24X1.6)

€ 1.50

0110706308
ref: 13

BOLT

€ 2.50
