STARTER CLUTCH

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

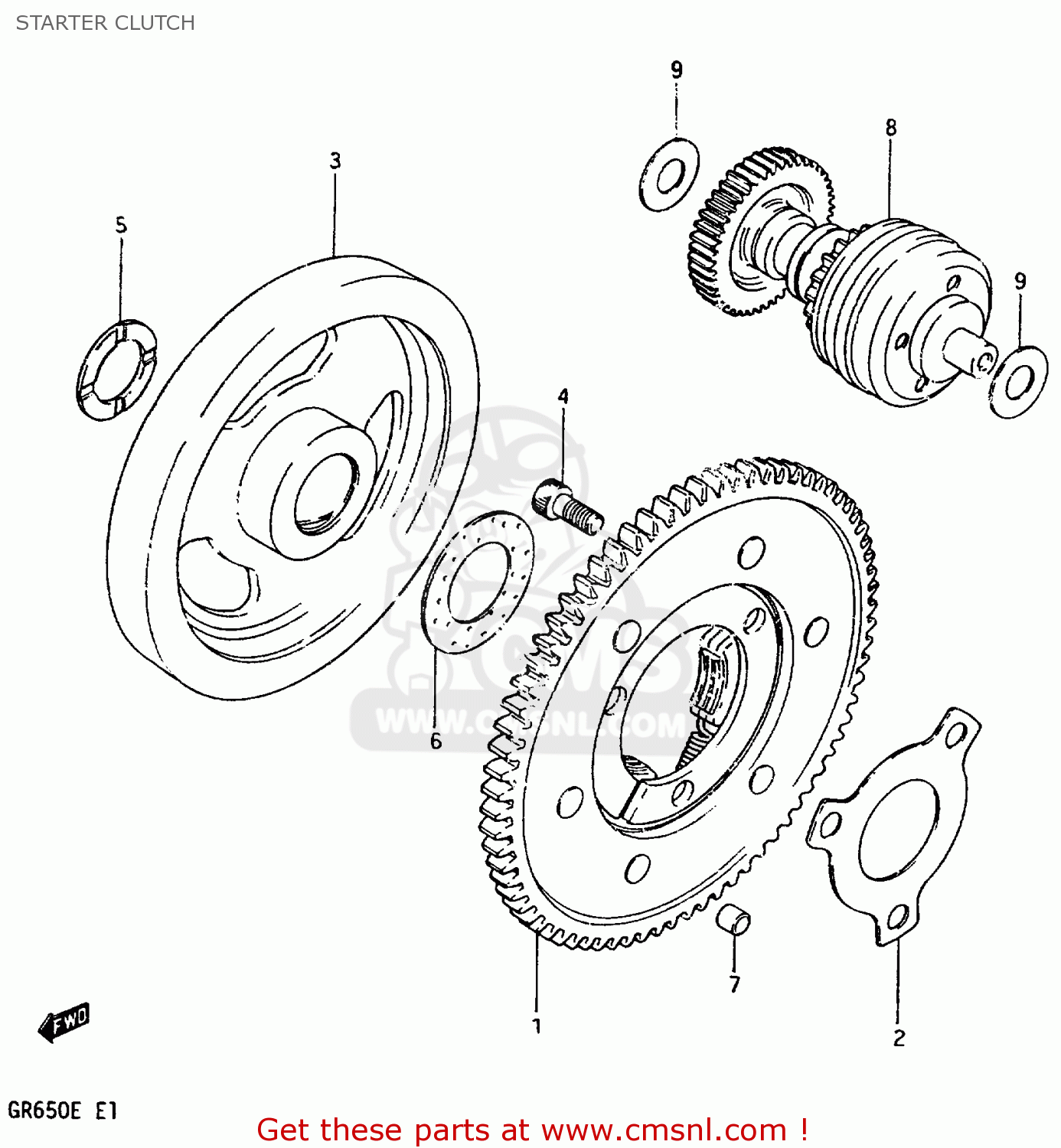

Starter clutch diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

1-1

1262515502
ref: 1-1
E.NO.107495

GEAR,STARTER

€ 181.00

1-2

1262515503
ref: 1-2
E. NO. 107496

GEAR,STARTER

€ 181.00

1264815500
ref: 2

SHIM

€ 0.00

1265515501
ref: 3

FLYWHEEL,CLUTCH

€ 87.00

0910608043
ref: 4

BOLT

€ 3.00

0916027005
ref: 5

WASHER(27X40X2.5)

€ 10.00

0916027006
ref: 6

WASHER (27X48X1)

€ 0.00

7-1

0926106004
ref: 7-1
E. NO. 107495

PIN(6X8.8)

€ 1.50

7-2

0926108004
ref: 7-2
E. NO. 107496

PIN

€ 0.00

3137015510
ref: 8

PINION GEAR ASSEMBLY,STARTER

€ 233.50

3137115510
ref: 9

SHIM

€ 2.00
