FRAME COVER (GR650XD)

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

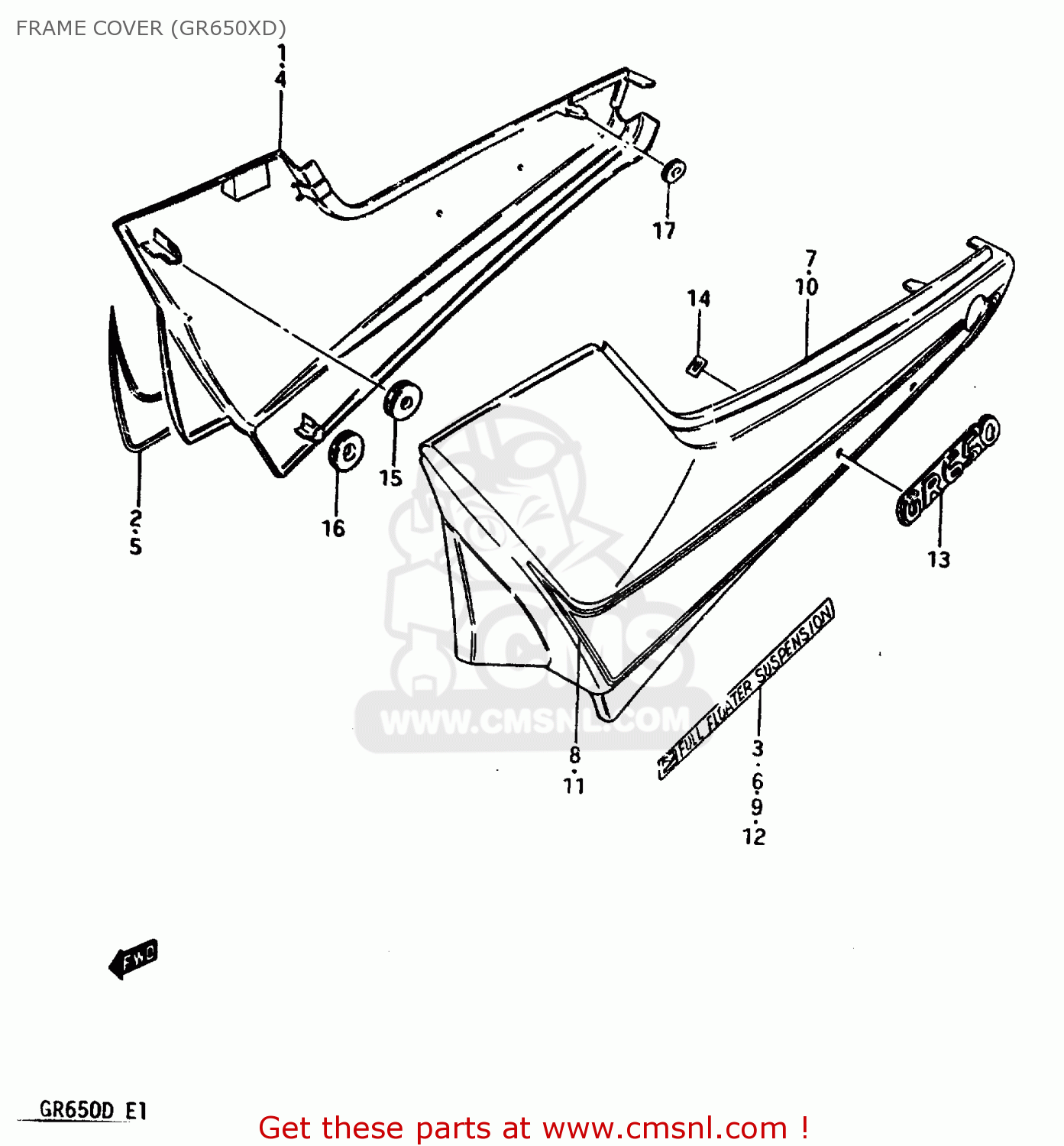

Frame cover (gr650xd) diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

FRAME COVER (GR650XD) GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
FRAME COVER (GR650XD) GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
FRAME COVER (GR650XD) GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1
4711015510OOJ
ref: 1
COVER, FRAME RH (RED)
€ 0.00
2
681301551088L
ref: 2
TAPE SET,FRAME COVER
€ 0.00
3
682350470093W
ref: 3
EMBLEM
€ 0.00
4
4711015510019
ref: 4
COVER, FRAME RH (BLACK)
€ 82.00
5
681301551093B
ref: 5
TAPE SET, FRAME COVER RH
€ 0.00
6
682350470093W
ref: 6
EMBLEM
€ 0.00
7
4721015510OOJ
ref: 7
COVER, FRAME LH (RED)
€ 0.00
8
681401551088L
ref: 8
TAPE, LH
€ 0.00
9
682350470093W
ref: 9
EMBLEM
€ 0.00
10
4721015510019
ref: 10
COVER, FRAME LH (BLACK)
€ 104.50
11
681401551093B
ref: 11
TAPE SET, FRAME COVER LH
€ 0.00
12
682350470093W
ref: 12
EMBLEM
€ 0.00
13
6813115500
ref: 13
EMBLEM,FRAME COVER
6813115500
€ 17.50
14
0914803002
ref: 14
NUT
0914803002
€ 3.00
15
0932008018
ref: 15
CUSHION
0932008018
€ 4.00
16
0932003005
ref: 16
CUSHION
0932003005
€ 2.00
17
0932908003
ref: 17
CUSHION
0932908003
€ 3.50
