STARTING MOTOR

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

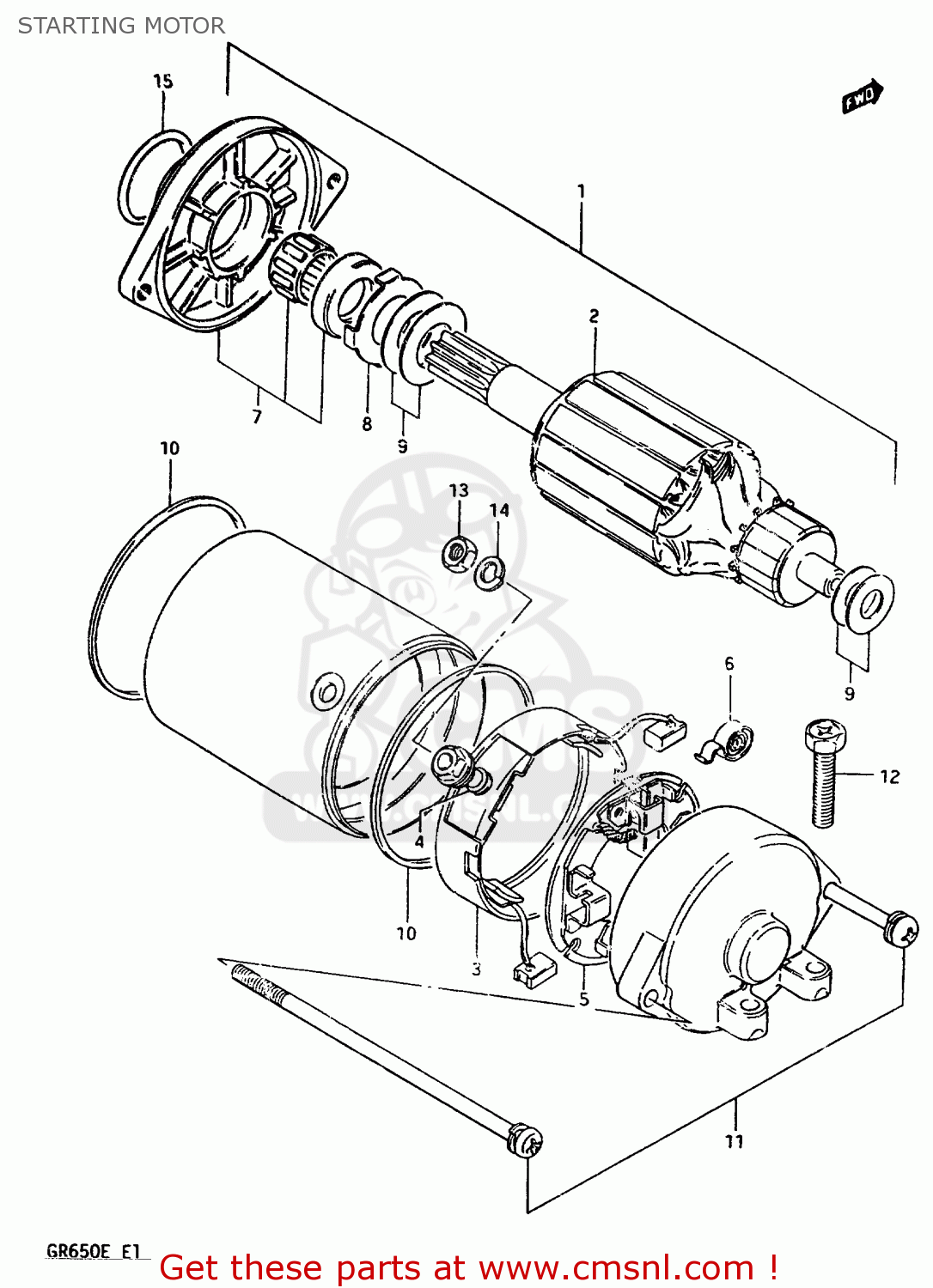

Starting motor diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

3110015510
ref: 1

MOTOR ASSEMBLY,STARTING

€ 766.50

3131115510
ref: 2

ARMATURE

€ 164.00

3113049040
ref: 3

BRUSH TERMINAL SET (+)

€ 54.00

3114349040
ref: 4

O RING

€ 3.00

3113249040
ref: 5

HOLDER,BRUSH

€ 35.50

3113549040
ref: 6

SPRING,BRUSH

€ 5.00

3115015510
ref: 7

BRACKET SET,STARTING MOTOR

€ 89.50

3136049240
ref: 8

SHIM SET

€ 10.50

3136049040
ref: 9

SHIM SET

€ 10.50

3126449040
ref: 10

SEAL,RING

€ 7.50

3128015510
ref: 11

BOLT

€ 10.50

0912806024
ref: 12

SCREW (6X25)

€ 2.50

0831022066
ref: 13

NUT

€ 2.00

0832121066
ref: 14

WASHER,LOCK

€ 2.00

0928024003
ref: 15

O RING(D:3,ID:24.5)

€ 2.00
