TURN SIGNAL LAMP

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

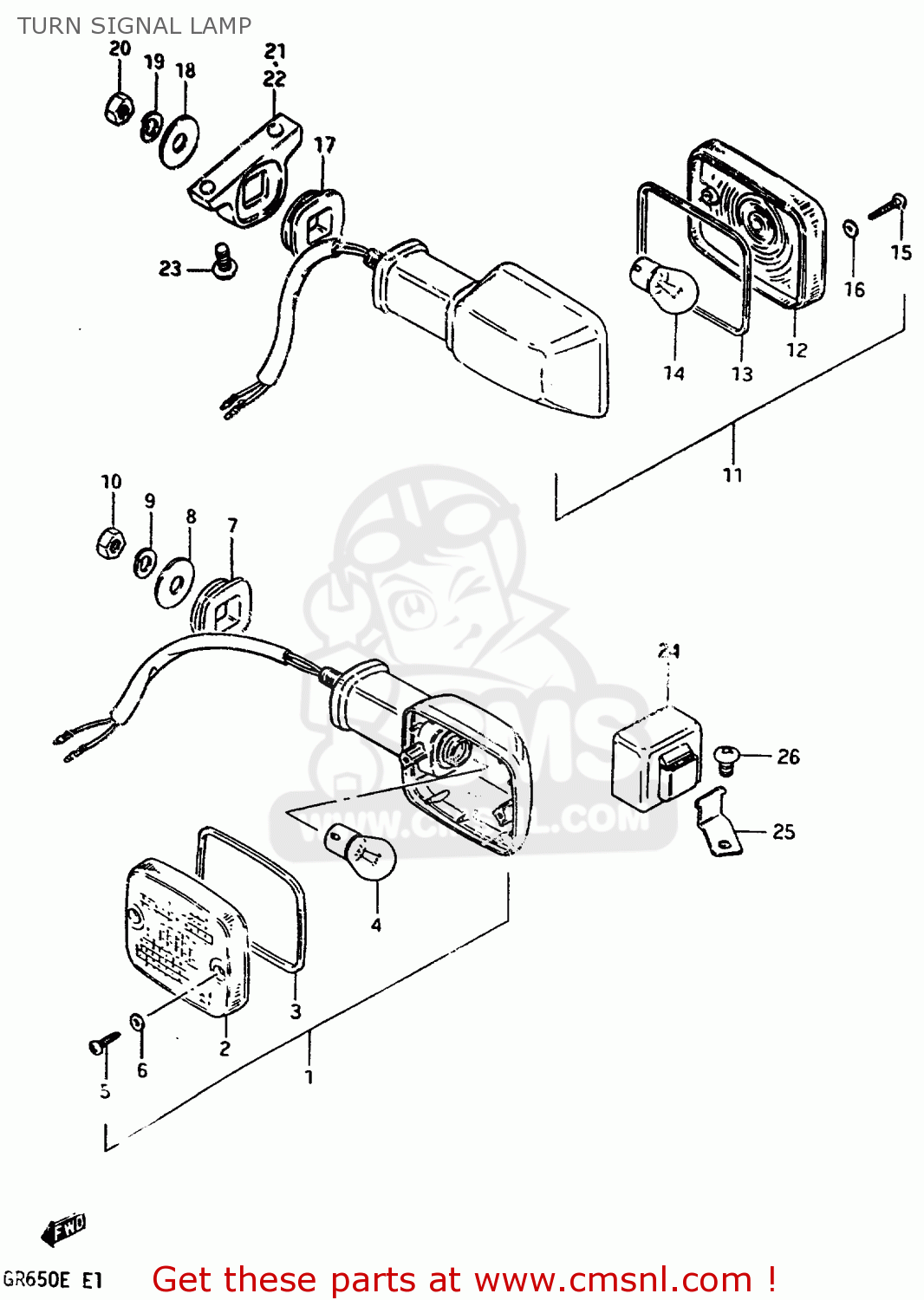

Turn signal lamp diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

TURN SIGNAL LAMP GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
TURN SIGNAL LAMP GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
TURN SIGNAL LAMP GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1
3560145110
ref: 1
LAMP ASSEMBLY,FRONT TURN SIGNAL
3560145110
€ 114.00
2
3561249231
ref: 2
LENS
3561249231
€ 13.00
3
3561349230
ref: 3
GASKET (NAS)
3561349230
€ 5.00
4
0947112006
ref: 4
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
5
0321104208
ref: 5
SCREW
0321104208
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0932015005
ref: 7
CUSHION
0932015005
€ 5.00
8
0916010006
ref: 8
WASHER (10.5X30X2.3)
0916010006
€ 2.50
9
0832121108
ref: 9
LOCK WASHER
0832121108
€ 2.00
10
0831012108
ref: 10
NUT
0831012108
€ 2.50
11
3560345110
ref: 11
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 114.00
12
3561249231
ref: 12
LENS
3561249231
€ 13.00
13
3561349230
ref: 13
GASKET (NAS)
3561349230
€ 5.00
14
0947112006
ref: 14
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
15
0321104208
ref: 15
SCREW
0321104208
€ 1.50
16
3562743010
ref: 16
GASKET (NAS)
3562743010
€ 2.00
17
0932015005
ref: 17
CUSHION
0932015005
€ 5.00
18
0916010006
ref: 18
WASHER (10.5X30X2.3)
0916010006
€ 2.50
19
0832121108
ref: 19
LOCK WASHER
0832121108
€ 2.00
20
0831012108
ref: 20
NUT
0831012108
€ 2.50
21
3562115500
ref: 21
BRACKET,REAR TURN SIGNAL
3562115500
€ 49.00
22
3564115500
ref: 22
BRACKET,REAR TURN SIGNAL
3564115500
€ 31.50
23
0211206168
ref: 23
SCREW
0211206168
€ 2.50
24-1
3861045031
ref: 24-1
MODEL D
RELAY,TURN SIGNAL
3861045031
€ 54.50
24-2
3861031310
ref: 24-2
MODEL E
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
25
3862115500
ref: 25
BRACKET,TURN SIGNAL RELAY
€ 0.00
26
0214206105
ref: 26
SCREW
€ 2.00
