FRONT BRAKE HOSE

GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

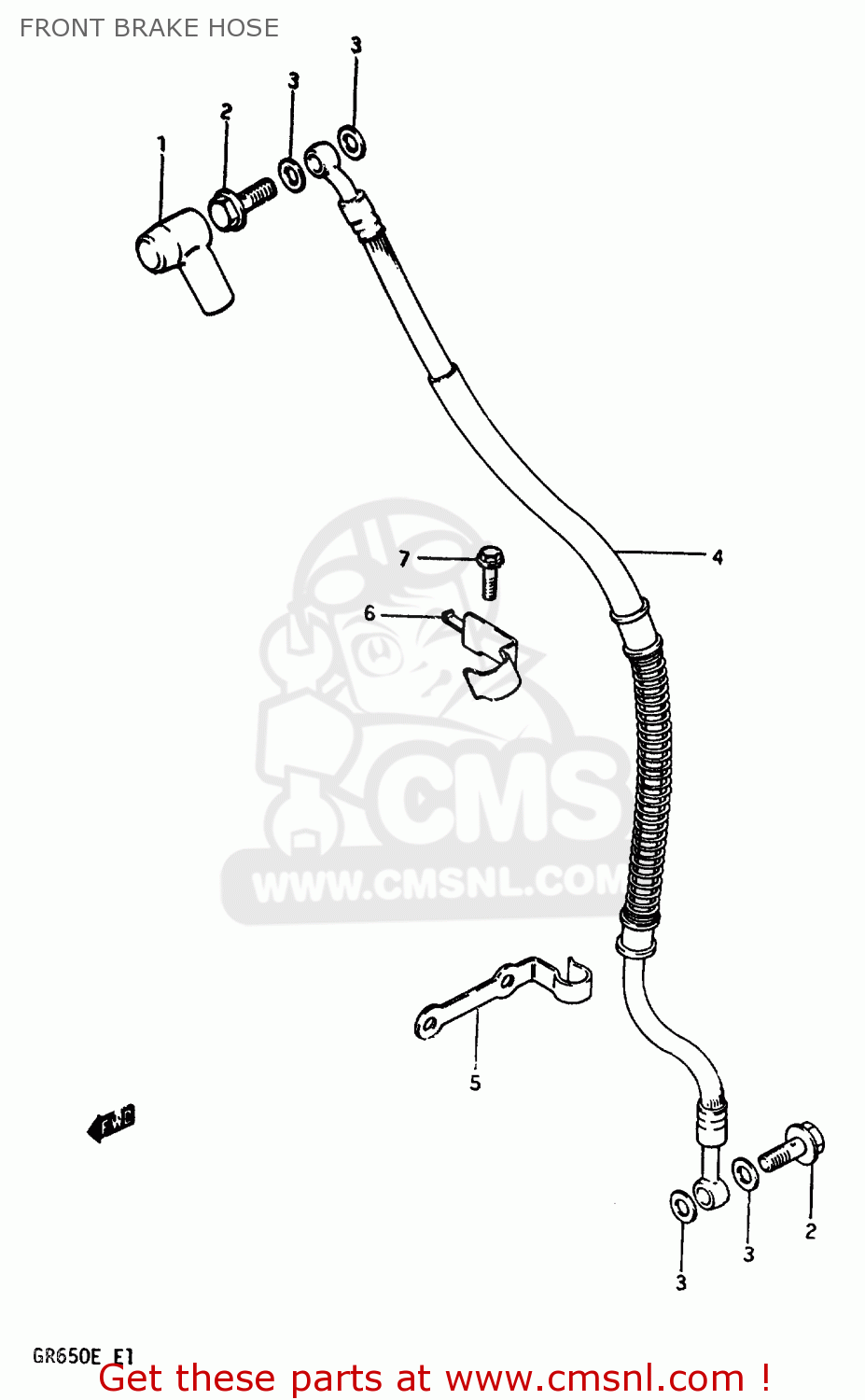

Front brake hose diagram GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

FRONT BRAKE HOSE GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

FRONT BRAKE HOSE GR650 1983 (D) (E01 E02 E04 06 15 16 17 18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

1

5971149001
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

2

0936010009
ref: 2

BOLT UNION

€ 6.50

3

0916110005
ref: 3

WASHER

€ 2.00

4-1

5948015503
ref: 4-1
MODEL D

HOSE,FRONT BRAKE

€ 72.50

4-2

5948015504
ref: 4-2
MODEL E

HOSE,BRAKE

€ 72.50

5

5926849001
ref: 5

GUIDE,BRAKE HOSE NO.2

€ 7.00

6

5924615500
ref: 6

GUIDE

€ 0.00

7

0151706108
ref: 7

BOLT

€ 2.50
