CONTACT BREAKER
GS550 1980 (T) GENERAL EXPORT (E01)

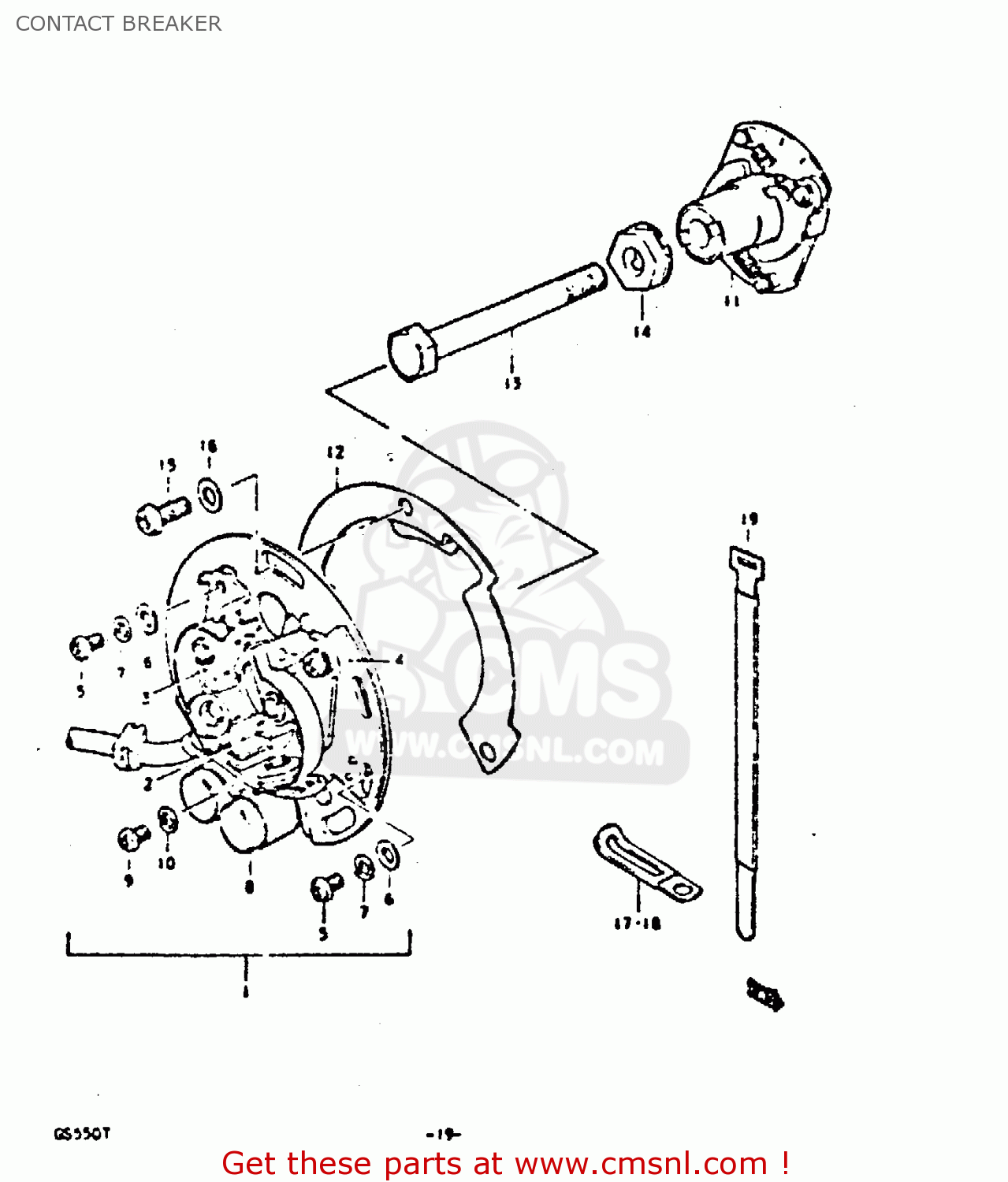

Contact breaker diagram GS550 1980 (T) GENERAL EXPORT (E01)
CONTACT BREAKER GS550 1980 (T) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3311045020
ref: 1
BREAKER ASSEMBLY,CONTACT
€ 568.50
2
3314045020
ref: 2
POINT ASSEMBLY,CONTACT
€ 35.50
3
3316045020
ref: 3
POINT ASSEMBLY,CONTACT
€ 83.00
4
3314345020
ref: 4
PLATE,CONTACT POINT
€ 12.50
5
0211204068
ref: 5
SCREW 4X6
€ 2.00
6
0832221048
ref: 6
WASHER
€ 2.00
7
0832121048
ref: 7
LOCK WASHER
€ 2.00
8
3326145020
ref: 8
CONDENSER
€ 106.00
9
0211204068
ref: 9
SCREW 4X6
€ 2.00
10
0832121048
ref: 10
LOCK WASHER
€ 2.00
11
3312045021
ref: 11
GOVERNOR ASSEMBLY
€ 168.00
12
3337145001
ref: 12
PLATE,IGNITION TIMING
€ 6.50
13
0110708658
ref: 13
BOLT
€ 3.00
14
3346547000
ref: 14
WASHER
€ 19.00
15
0912505024
ref: 15
SCREW(5X12)
€ 2.00
16
0916005027
ref: 16
WASHER
€ 2.50
17
0940406401
ref: 17
CLAMP L:35
€ 2.50
18
0940408401
ref: 18
CLAMP
€ 3.50
19
0940718501
ref: 19
CLAMP
€ 0.00
