FRAME

GS550 1980 (T) GENERAL EXPORT (E01)

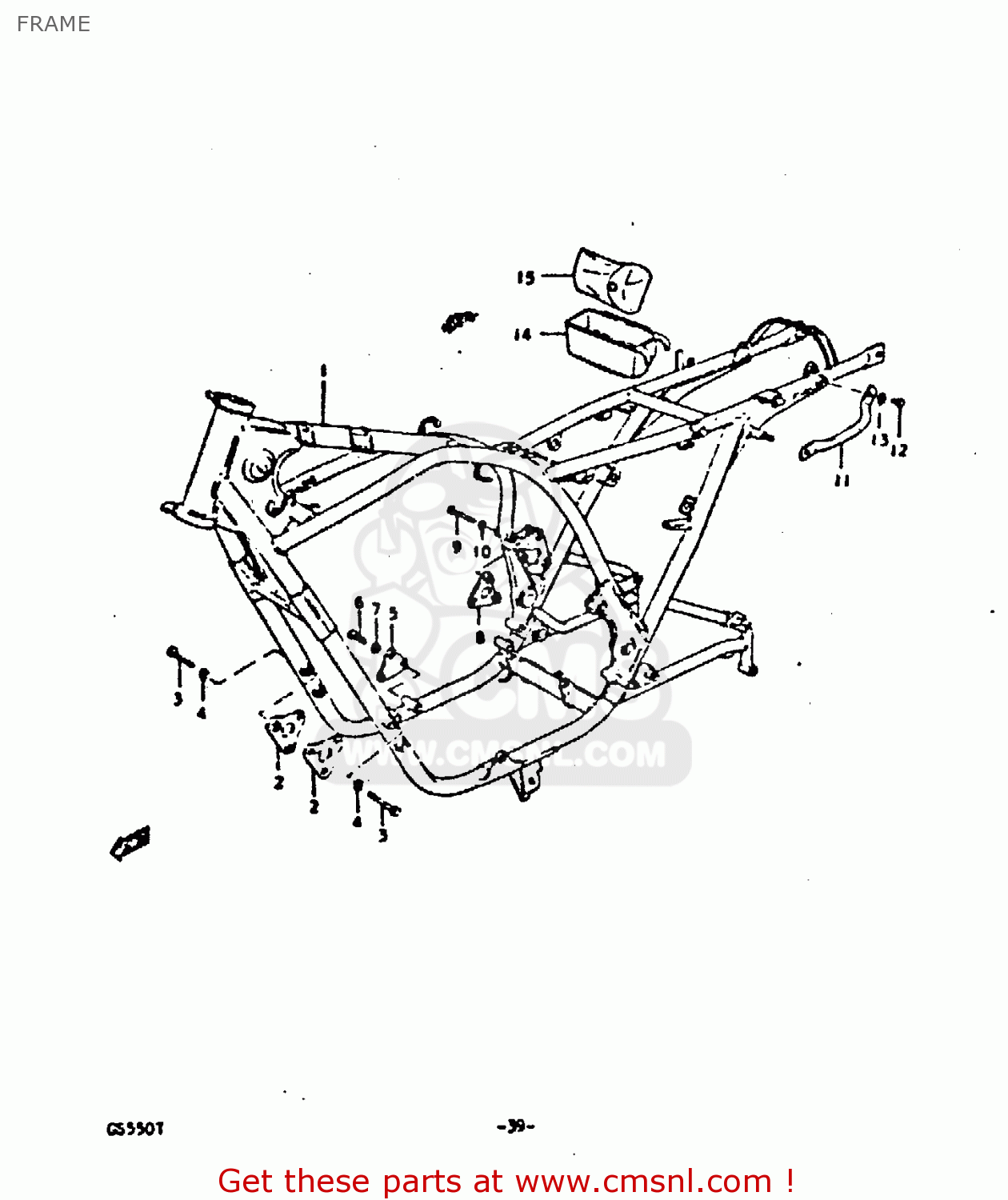

Frame diagram GS550 1980 (T) GENERAL EXPORT (E01)

FRAME GS550 1980 (T) GENERAL EXPORT (E01)

FRAME GS550 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

4110047031019
ref: 1-1

FRAME

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-5

NOTUSED
ref: 1-5

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

4191047000019
ref: 2

PLATE,ENGINE MOUNTING

€ 8.50

3

0110708608
ref: 3

BOLT

€ 2.50

4

0832121088
ref: 4

LOCK WASHER

€ 2.00

5

4199347000019
ref: 5

PLATE,ENGINE MOUNTING

€ 7.50

6

0110708168
ref: 6

BOLT

€ 2.00

7

0832121088
ref: 7

LOCK WASHER

€ 2.00

8

4199047000019
ref: 8

PLATE,ENGINE MOUNTING

€ 8.00

9

0110708558
ref: 9

BOLT 8X55

€ 3.00

10

0832121088
ref: 10

LOCK WASHER

€ 2.00

11

4141139000
ref: 11

GRIP,FRAME HANDLE

€ 56.50

12

0110708168
ref: 12

BOLT

€ 2.00

13

0832211088
ref: 13

WASHER

€ 2.00

14

4155147000
ref: 14

HOLDER,TOOL

€ 0.00

15

0980000193
ref: 15

TOOL SET

€ 52.00
