SEAT
GS550 1980 (T) GENERAL EXPORT (E01)

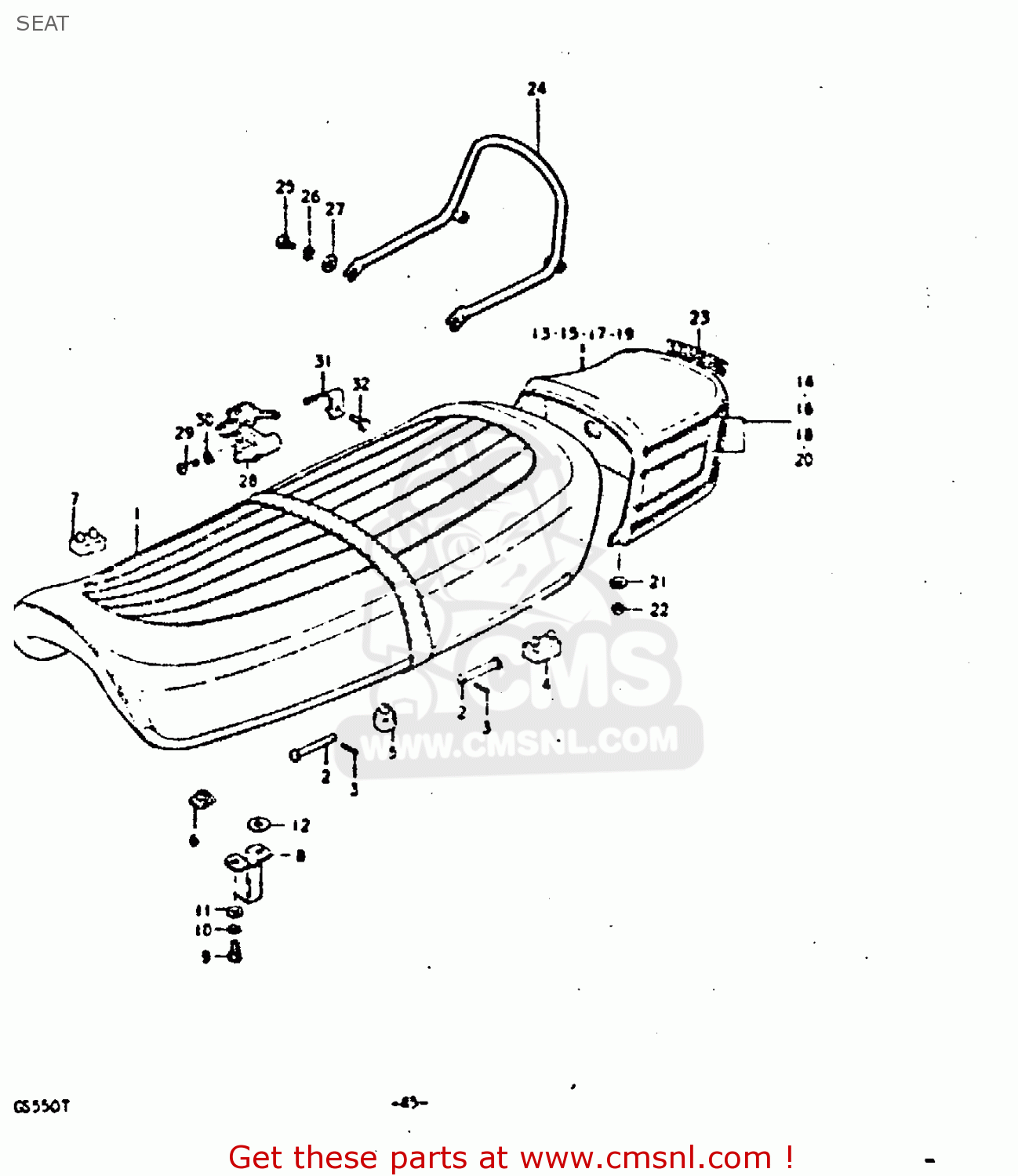

Seat diagram GS550 1980 (T) GENERAL EXPORT (E01)
SEAT GS550 1980 (T) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
NOTUSED
ref: 1-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-2
451004701140P
ref: 1-2
FOR CAST WHEEL E2, E
SEAT ASSEMBLY
€ 381.50
2
0920006018
ref: 2
PIN
€ 2.00
3
0411120158
ref: 3
PIN
€ 1.50
4
0932108006
ref: 4
CUSHION
€ 3.00
5
0932110002
ref: 5
CUSHION(11.5X22X20)
€ 2.00
6
0932910001
ref: 6
CUSHION
€ 2.50
7
0932108010
ref: 7
CUSHION
€ 4.00
8
4521347000
ref: 8
STRIKER,SEAT LOCK
€ 7.00
9
0110706128
ref: 9
BOLT
€ 2.00
10
0832121068
ref: 10
LOCK WASHER
€ 2.50
11
0832211068
ref: 11
WASHER 6MM
€ 2.00
12
0916008043
ref: 12
WASHER(8.5X18X1)
€ 1.50
13
4551045001019
ref: 13
COVER,SEAT TAIL
€ 113.00
14
681604707071V
ref: 14
TAPE SET
€ 0.00
15
455104500105K
ref: 15
COVER, SEAT TAIL
€ 113.00
16
681604707071V
ref: 16
TAPE SET
€ 0.00
17
455104500100J
ref: 17
COVER,SEAT TAIL
€ 113.00
18
681604707071W
ref: 18
TAPE SET
€ 42.00
19
NOTUSED
ref: 19
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
20
NOTUSED
ref: 20
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
21
0916906016
ref: 21
WASHER
€ 1.50
22
0831921068
ref: 22
NUT 6MM
€ 2.00
23-1
6816645010764
ref: 23-1
FOR CAST WHEEL
EMBLEM,SEAT TAIL COVER
€ 3.00
23-2
6816645000
ref: 23-2
FOR SPOKE WHEEL
EMBLEM
€ 5.00
24
4621045000
ref: 24
E2, E4, E15, E18, E2
HANDLE, PILLION RIDER
€ 74.50
25
0120408607
ref: 25
E2, E4, E15, E18, E2
BOLT
€ 2.50
26
0832121088
ref: 26
E2, E4, E15, E18, E2
LOCK WASHER
€ 2.00
27
0832211088
ref: 27
E2, E4, E15, E18, E2
WASHER
€ 2.00
28
9570045813
ref: 28
LOCK ASSY,SEAT
€ 59.50
29
0211205128
ref: 29
SCREW
€ 2.50
30
0832121058
ref: 30
LOCK WASHER
€ 2.00
31
9572245000
ref: 31
SPRING,HELMET HOLDER
€ 8.50
32
0110405088
ref: 32
BOLT 5X16
€ 2.00
