FRONT WHEEL (FOR SPOKE WHEEL/SINGLE DISK)

GS550 1980 (T) GENERAL EXPORT (E01)

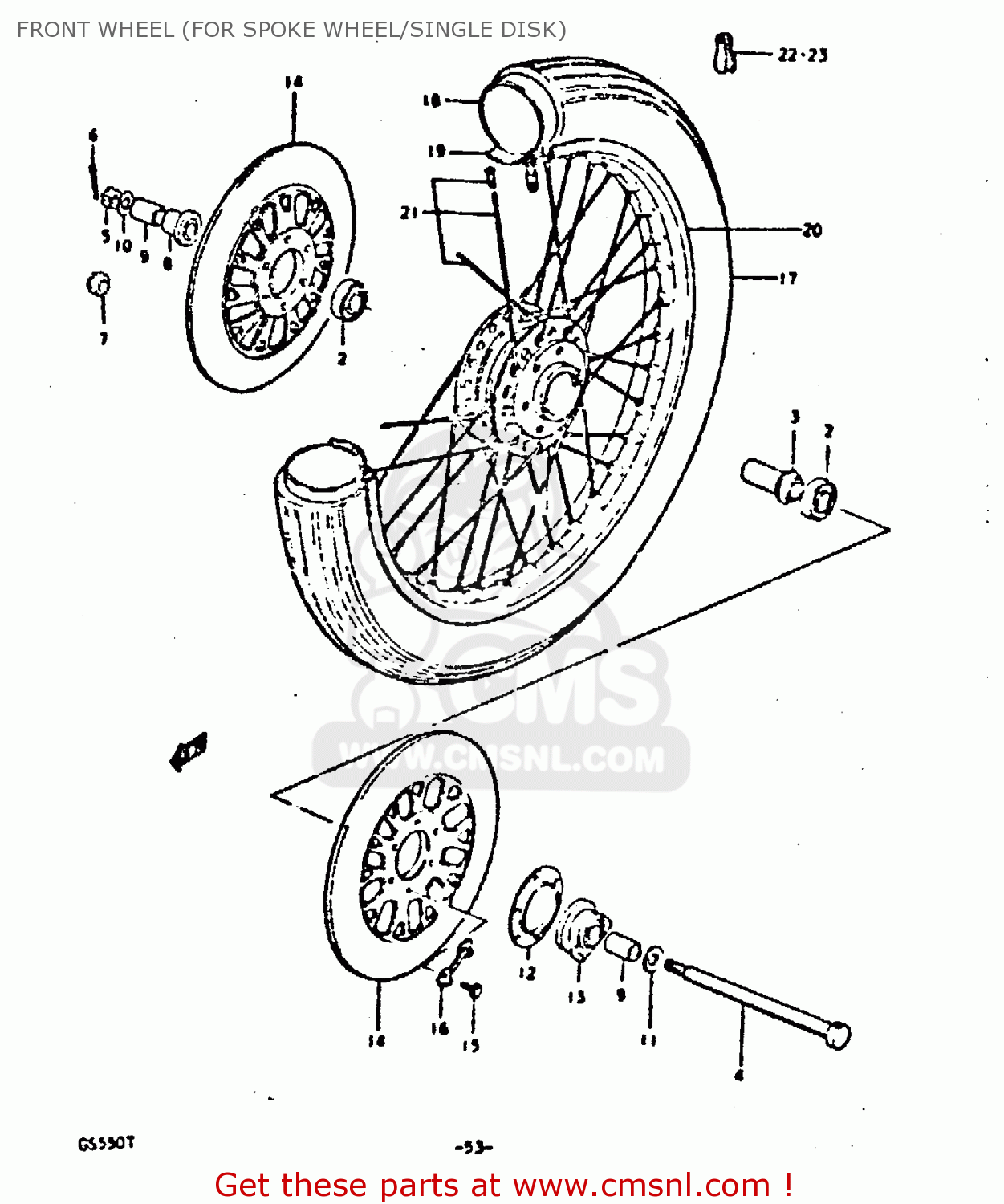

Front wheel (for spoke wheel/single disk) diagram GS550 1980 (T) GENERAL EXPORT (E01)

FRONT WHEEL (FOR SPOKE WHEEL/SINGLE DISK) GS550 1980 (T) GENERAL EXPORT (E01)

FRONT WHEEL (FOR SPOKE WHEEL/SINGLE DISK) GS550 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5411147001
ref: 1

DRUM,FRONT HUB

€ 194.50

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

4

5471133002
ref: 4

AXLE,FRONT

€ 41.00

5

0831431128
ref: 5

NUT 12MM

€ 2.00

6

0411130308
ref: 6

COTTER PIN

€ 1.50

7

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

5474018402
ref: 8

SPACER,FR AXLE,R

€ 18.50

9

0918015034
ref: 9

SPACER(15X22X30)

€ 7.00

10

0832221128
ref: 10

WASHER

€ 2.00

11

NOTUSED
ref: 11

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12

5427145010
ref: 12

COVER, LH

€ 0.00

13

5460018401
ref: 13

BOX ASSEMBLY,SPEEDOMETER GEAR

€ 90.50

14

5921145200
ref: 14

DISC,FR BRAKE

€ 144.00

15

0910008140
ref: 15

BOLT(8X25)

€ 2.00

16

0916908016
ref: 16

WASHER

€ 3.50

17-1

5510047615
ref: 17-1
E2

TIRE,FRONT

€ 0.00

17-2

NOTUSED
ref: 17-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

18

5520015010
ref: 18

TUBE,INNER

€ 41.00

19

5526115010
ref: 19

PROTECTOR,WHL INR TUBE

€ 2.50

20

5531134020
ref: 20

RIM,FR WHEEL

€ 144.00

21

5532034805
ref: 21

SPOKE SET,FRONT

€ 71.00

22

5541111000
ref: 22

BALANCER,WHEEL (B)

€ 4.50

23

5541211000
ref: 23

BALANCER,WHEEL (30G)

€ 8.00
