RIGHT HANDLE SWITCH (E4, E15, E18, E22, E25, E26, E34)

GS550 1980 (T) GENERAL EXPORT (E01)

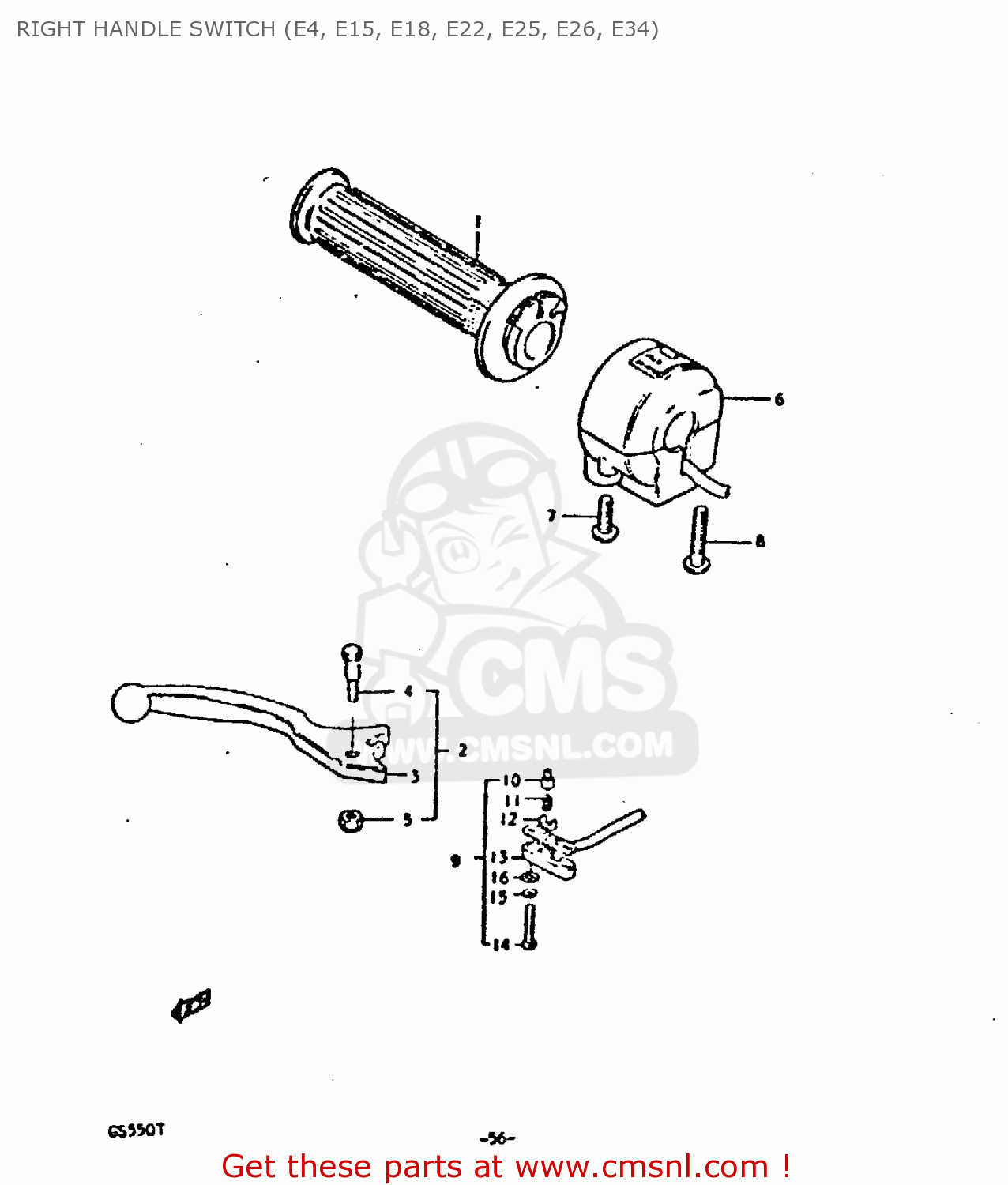

Right handle switch (e4, e15, e18, e22, e25, e26, e34) diagram GS550 1980 (T) GENERAL EXPORT (E01)

RIGHT HANDLE SWITCH (E4, E15, E18, E22, E25, E26, E34) GS550 1980 (T) GENERAL EXPORT (E01)
RIGHT HANDLE SWITCH (E4, E15, E18, E22, E25, E26, E34) GS550 1980 (T) GENERAL EXPORT (E01)
RIGHT HANDLE SWITCH (E4, E15, E18, E22, E25, E26, E34) GS550 1980 (T) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5711044011
ref: 1
GRIP,THROTTLE
5711044011
€ 33.00
2
5730049100
ref: 2
LEVER ASSEMBLY,BRAKE
5730049100
€ 36.50
3
5742049100
ref: 3
LEVER,BRAKE
€ 36.50
4
5743118621
ref: 4
BOLT
5743118621
€ 8.00
5
0831921068
ref: 5
NUT 6MM
0831921068
€ 2.00
6
3720045220
ref: 6
SWITCH ASSY, HANDLE RH
3720045220
€ 118.50
7
0211205258
ref: 7
SCREW
0211205258
€ 2.00
8
0211205358
ref: 8
SCREW
€ 1.50
9
5746049100
ref: 9
SWITCH ASSEMBLY
€ 40.00
10
5746118600
ref: 10
HOLDER
€ 4.50
11
5746218600
ref: 11
SPRING
€ 4.50
12
5746318600
ref: 12
PLATE
5746318600
€ 4.50
13
5748133010
ref: 13
COVER,FR BK TERMINAL BASE
5748133010
€ 19.50
14
0912503105
ref: 14
SCREW
0912503105
€ 2.50
15
0832121038
ref: 15
LOCK WASHER
€ 1.50
16
0832221038
ref: 16
WASHER
0832221038
€ 2.00
