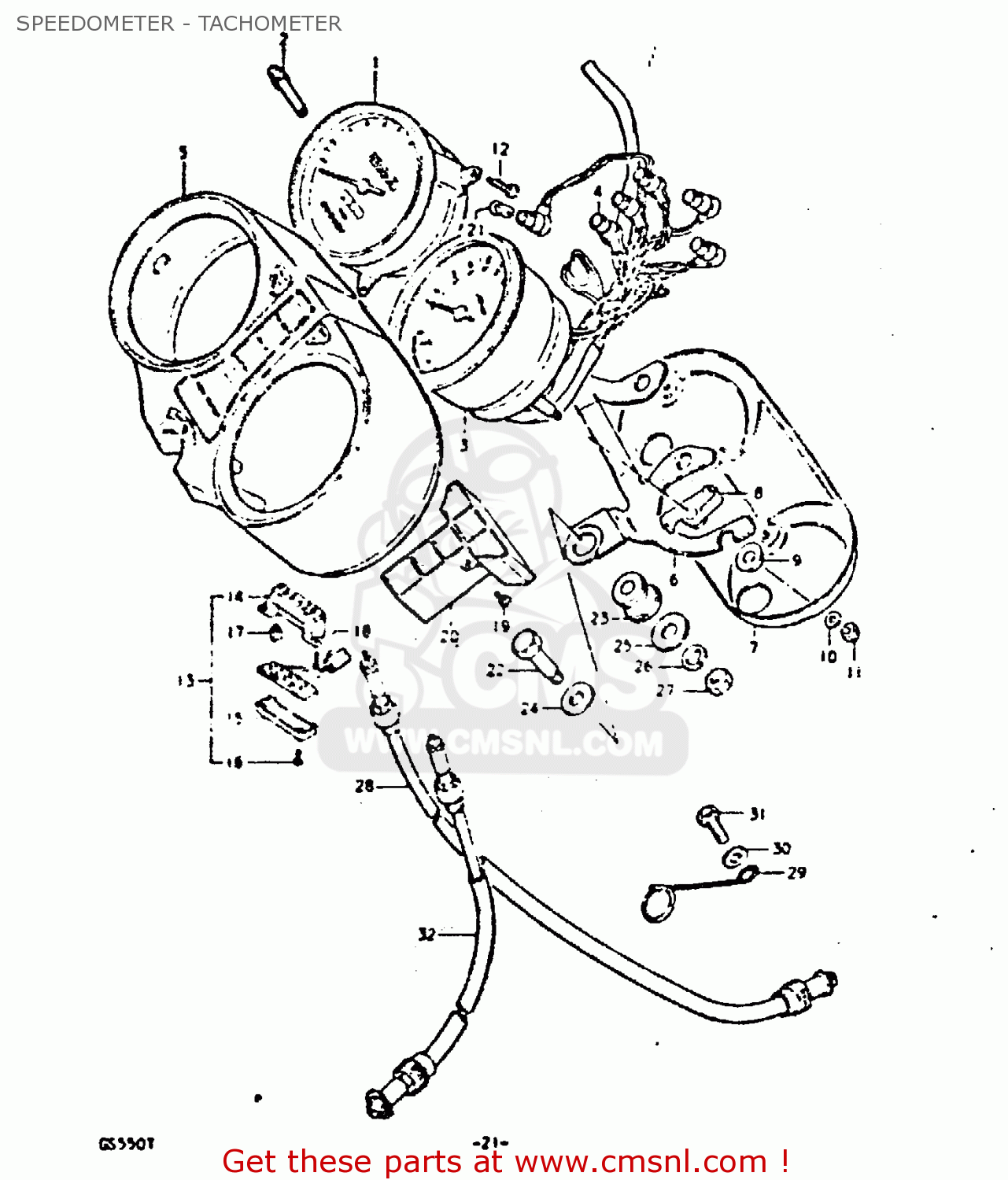

SPEEDOMETER - TACHOMETER - GS550 1980 (T) GENERAL EXPORT (E01)

ref

part #

description

quantity

1-1

3411047130
ref: 1-1

METER,SPEEDOMETER (KM/MPH)

€ 89.50

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

3498045020
ref: 2

KNOB

€ 4.50

3-1

3421047110
ref: 3-1

TACHOMETER

€ 223.50

3-2

NOTUSED
ref: 3-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4

3417345621
ref: 4

SOCKET,METER

€ 48.50

5

3415045100
ref: 5

CASE

€ 99.50

6

3495147020
ref: 6

BRACKET,COMBINATION METER

€ 23.50

7

3496145021
ref: 7

COVER,UNDER

€ 99.00

8

3495545020
ref: 8

CUSHION,METER (B)

€ 2.50

9

3495645020
ref: 9

CUSHION,METER (A)

€ 3.00

10

0832221058
ref: 10

WASHER

€ 2.50

11

0831311057
ref: 11

NUT

€ 1.50

12

3418345100
ref: 12

SCREW

€ 2.00

13

3645047622
ref: 13

INDICATOR ASSEMBLY,GEAR POSITION

€ 112.00

14

3645245100
ref: 14

CASE,GEAR INDICATOR

€ 14.50

15

3645445100
ref: 15

COVER,LWR

€ 7.00

16

3645645100
ref: 16

SCREW,GEAR INDICATOR

€ 2.00

17

0947112071
ref: 17

BULB(14V1.12W)

€ 5.00

18

3645745100
ref: 18

SCREW

€ 2.00

19

3649247020
ref: 19

SCREW

€ 1.50

20

0947112001
ref: 20

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

21

3638245100
ref: 21

CASE,PILOT BULB

€ 10.00

22

0911108031
ref: 22

BOLT(8X31)

€ 4.00

23

3495631000
ref: 23

CUSHION,METER

€ 4.50

24

0832221108
ref: 24

WASHER

€ 2.50

25

0916008002
ref: 25

WASHER (8.5X29X1.6)

€ 2.00

26

0832121088
ref: 26

LOCK WASHER

€ 2.00

27

0831012088
ref: 27

NUT

€ 2.00

28

3491045230
ref: 28

CABLE ASSEMBLY,SPEEDOMETER

€ 29.00

29

3493837000
ref: 29

GUIDE,SPEEDOMETER CABLE

€ 14.50

30

0832221068
ref: 30

WASHER

€ 2.00

31

0110706168
ref: 31

BOLT, UPPER

€ 3.00

32

3494047030
ref: 32

CABLE ASSEMBLY,TACHOMETER

€ 20.50

SPEEDOMETER - TACHOMETER

all assemblies
