FRONT BRAKE HOSE (SINGLE DISK)

GS550 1980 (T) GENERAL EXPORT (E01)

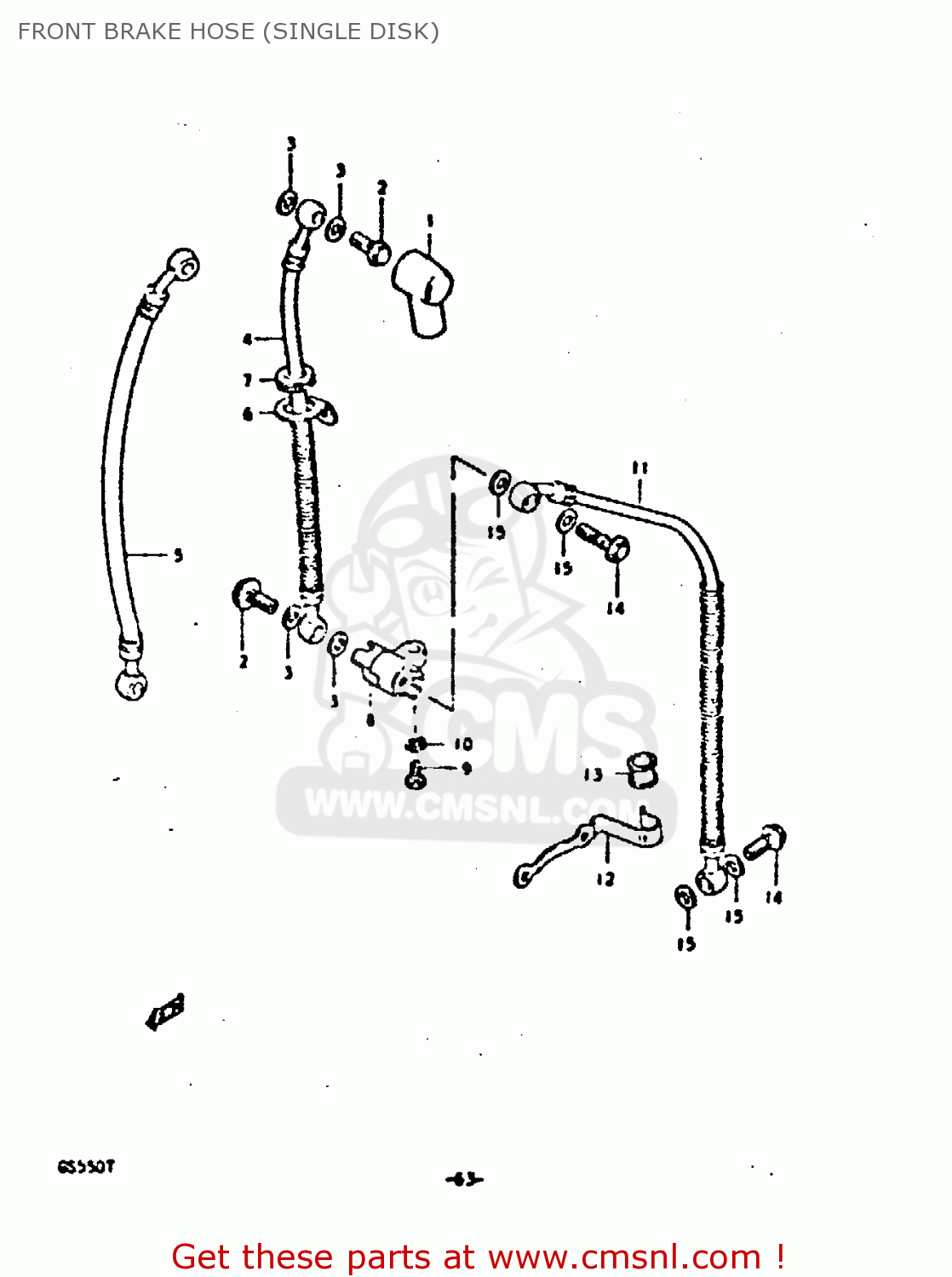

Front brake hose (single disk) diagram GS550 1980 (T) GENERAL EXPORT (E01)

FRONT BRAKE HOSE (SINGLE DISK) GS550 1980 (T) GENERAL EXPORT (E01)
FRONT BRAKE HOSE (SINGLE DISK) GS550 1980 (T) GENERAL EXPORT (E01)
FRONT BRAKE HOSE (SINGLE DISK) GS550 1980 (T) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5971149001
ref: 1
BOOT,MASTER CYLINDER
5971149001
€ 8.50
2
0936010007
ref: 2
BOLT,UNION
0936010007
€ 6.50
3
0916110005
ref: 3
WASHER
0916110005
€ 2.00
4
5948037013
ref: 4
HOSE,BRAKE NO.1
5948037013
€ 52.00
5
5948045621
ref: 5
HOSE,FRONT BRAKE
€ 56.50
6-1
5924331000
ref: 6-1
GUIDE,BRAKE HOSE
5924331000
€ 11.50
6-2
5924331010
ref: 6-2
GUIDE,BRAKE HOSE NO.1
€ 3.00
7
0930814007
ref: 7
GROMMET
0930814007
€ 4.00
8
5949145000
ref: 8
JOINT,BRAKE HOSE
5949145000
€ 29.00
9
0110706208
ref: 9
BOLT
0110706208
€ 2.00
10
0832121068
ref: 10
LOCK WASHER
0832121068
€ 2.50
11
5924044001
ref: 11
HOSE,BRAKE NO.2
5924044001
€ 64.50
12
5926849001
ref: 12
GUIDE,BRAKE HOSE NO.2
5926849001
€ 7.00
13
5924449000
ref: 13
BUSH,BRAKE HOSE GUIDE,NO.2
5924449000
€ 4.50
14
0936010007
ref: 14
BOLT,UNION
0936010007
€ 6.50
15
0916110005
ref: 15
WASHER
0916110005
€ 2.00
