OIL PUMP - OIL FILTER

GS550 1980 (T) GENERAL EXPORT (E01)

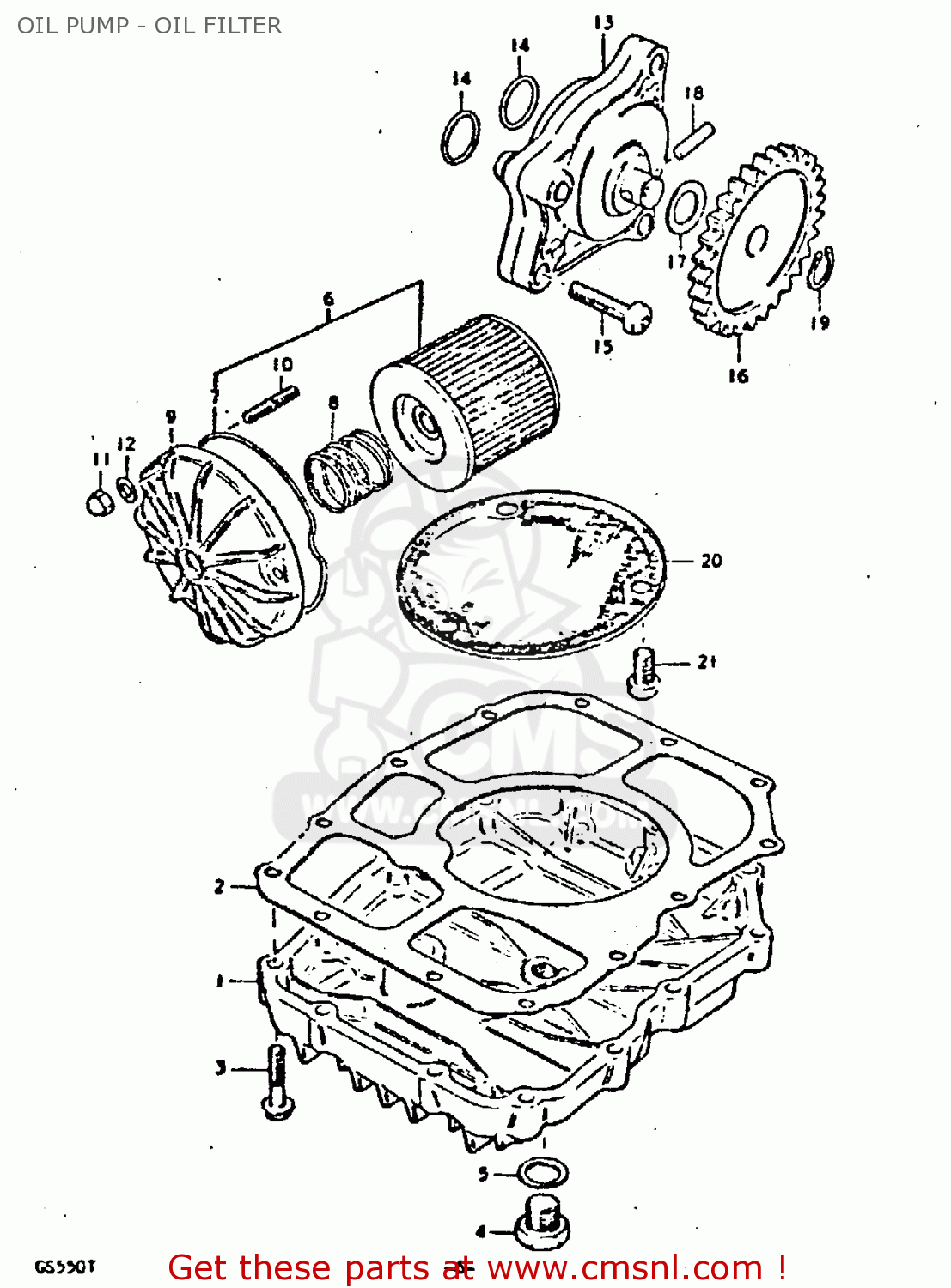

Oil pump - oil filter diagram GS550 1980 (T) GENERAL EXPORT (E01)

OIL PUMP - OIL FILTER GS550 1980 (T) GENERAL EXPORT (E01)

OIL PUMP - OIL FILTER GS550 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1151147000
ref: 1

PAN,OIL

€ 77.50

2

1148947000
ref: 2

GASKET,OIL PAN (MCA)

€ 14.00

3

0151706308
ref: 3

BOLT

€ 2.00

4

0924714001
ref: 4

PLUG

€ 5.00

5

0916814004
ref: 5

GASKET(14X19.2X2) (NAS)

€ 2.50

6

1650045810
ref: 6

ENGINE OIL FILTER SET

€ 11.50

7

1651845000
ref: 7

O RING,OIL FILTER CHAMBER CAP

€ 7.50

8

0944032004
ref: 8

SPRING

€ 13.50

9

1651245100
ref: 9

CAP,OIL FILTER

€ 37.50

10

0142106208
ref: 10

STUD 6X20

€ 2.50

11

0831311068
ref: 11

NUT

€ 2.00

12

0832221068
ref: 12

WASHER

€ 2.00

13

1640045013
ref: 13

PUMP ASSEMBLY,OIL

€ 185.00

14

0928013004
ref: 14

O RING(D:1.9,ID:13)

€ 2.50

15

0211206258
ref: 15

SCREW

€ 2.00

16

1633147000
ref: 16

GEAR,OIL PUMP DRIVEN

€ 25.00

17

0822110185
ref: 17

SHIM

€ 2.00

18

0926104009
ref: 18

PIN(4X15.8)

€ 1.50

19

0833131109
ref: 19

CIRCLIP

€ 2.00

20

1652045000
ref: 20

STRAINER,ENGINE OIL

€ 12.00

21

0211206128
ref: 21

SCREW 6X12

€ 2.00
