FRONT FORK (SINGLE DISK)

GS550 1980 (T) GENERAL EXPORT (E01)

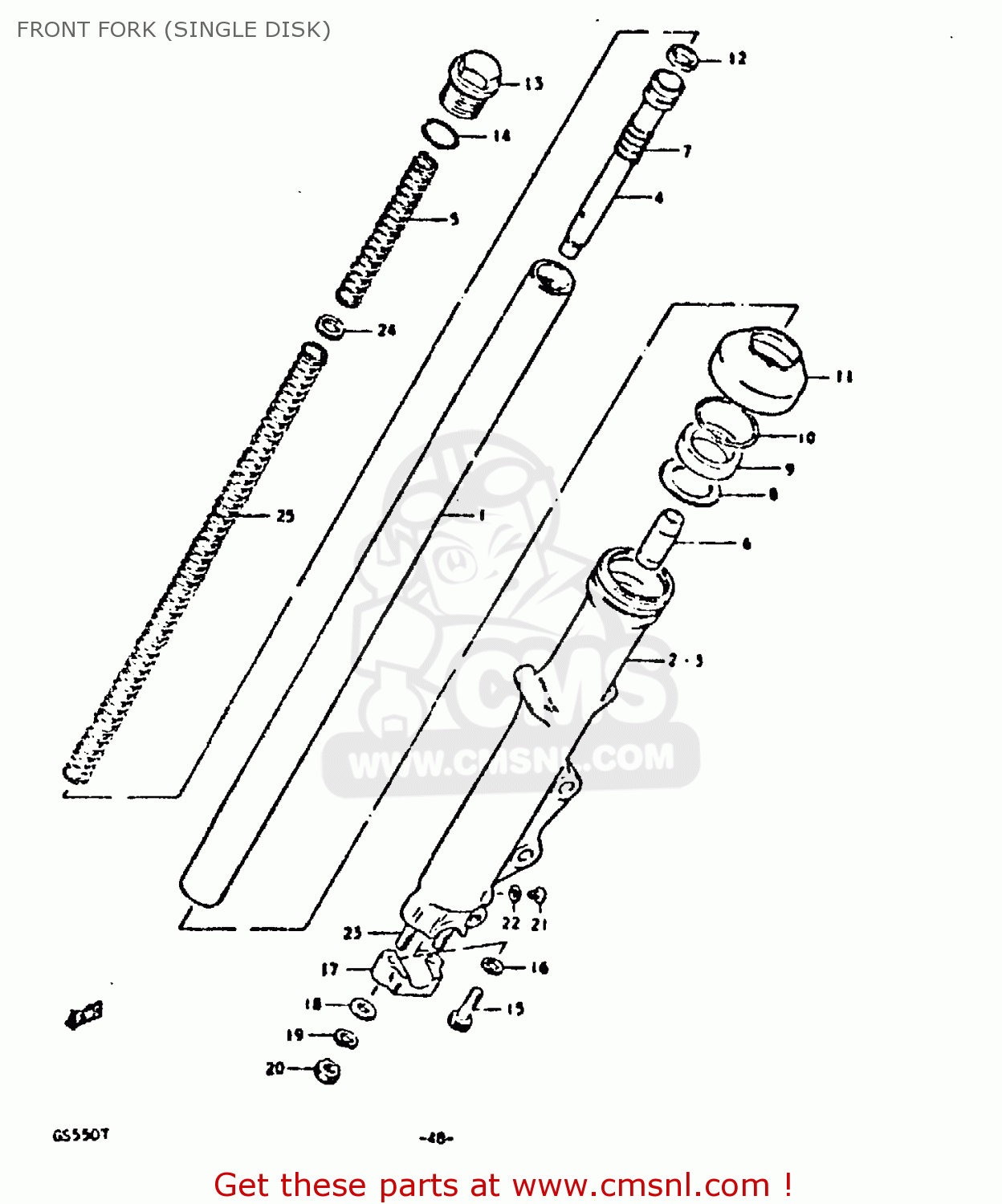

Front fork (single disk) diagram GS550 1980 (T) GENERAL EXPORT (E01)

FRONT FORK (SINGLE DISK) GS550 1980 (T) GENERAL EXPORT (E01)

FRONT FORK (SINGLE DISK) GS550 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

5110347031
ref: 0

DAMPER ASSEMBLY,RIGHT

€ 239.50

0

5110447031
ref: 0

DAMPER ASSEMBLY,LEFT

€ 239.50

1

5111047030
ref: 1

TUBE,FORK,INNER

€ 203.50

2

5113045032
ref: 2

TUBE,FORK,OUTER,RIGHT

€ 220.50

3

5114045032
ref: 3

TUBE,FORK,LEFT,OUTER

€ 211.50

4

5114647600
ref: 4

SEAT,FRONT FORK,UNDER

€ 14.50

5

5117147030
ref: 5

SPRING

€ 0.00

6

5119545030
ref: 6

PIECE,OIL LOCK

€ 16.00

7

5117745030
ref: 7

SPRING,FORK REBOUND

€ 4.00

8

5116845031
ref: 8

SPACER,SEAL

€ 5.00

9

5115345030
ref: 9

OIL SEAL,FRONT FORK

€ 14.00

10

5115631231
ref: 10

CIRCLIP,FORK OIL SEAL

€ 3.50

11

5157131232
ref: 11

BOOT

€ 19.50

12

5119631230
ref: 12

RING

€ 7.50

13

5135131030
ref: 13

CAP,INNER TUBE

€ 34.50

14

5118131030
ref: 14

O RING

€ 3.50

15

5114748130
ref: 15

BOLT(8X27)

€ 3.50

16

5114831030
ref: 16

GASKET (NAS)

€ 4.00

17

5113231030
ref: 17

HOLDER,AXLE

€ 31.50

18

0832221088
ref: 18

WASHER

€ 2.00

19

0832121088
ref: 19

LOCK WASHER

€ 2.00

20

0831012088
ref: 20

NUT

€ 2.00

21

0211204068
ref: 21

SCREW 4X6

€ 2.00

22

5118333030
ref: 22

GASKET (NAS)

€ 6.50

23

0142108258
ref: 23

STUD 8X25

€ 2.50

24

5119245030
ref: 24

WASHER

€ 2.50

25

511844703C
ref: 25

SPRING, MAIN LOWER (L:411.5)

€ 0.00
