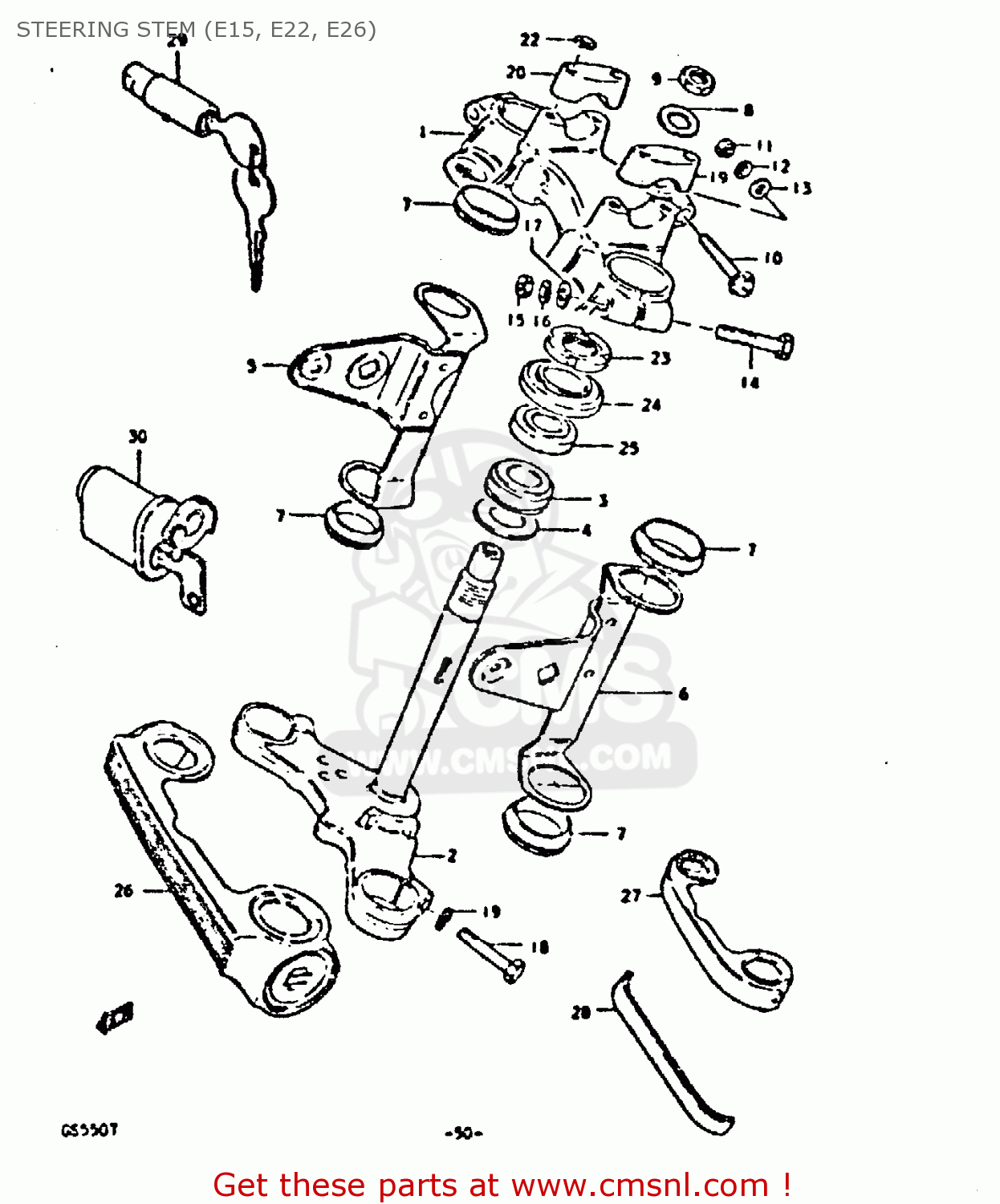

STEERING STEM (E15, E22, E26)

ref

part #

description

quantity

1

5131147000291
ref: 1

HEAD,STEERING STEM

€ 111.50

2-1

5140045821
ref: 2-1
E22, E26

STEERING STEM SET

€ 0.00

2-2

5140045831
ref: 2-2
E15

STEM,STEERING

€ 178.50

3

0926530005
ref: 3

BEARING

€ 49.50

4

0821130402
ref: 4

WASHER,THRUST

€ 4.00

5

5153047001291
ref: 5

BRACKET,HEADLAMP,RIGHT

€ 58.00

6

5154047001291
ref: 6

BRACKET,HEADLAMP,LEFT

€ 34.00

7

5155345000
ref: 7

CUSHION,HEADLAMP BRACKET

€ 3.50

8

5135631700
ref: 8

WASHER

€ 9.50

9

5135345000
ref: 9

NUT,FR FORK UPR BRACKET

€ 10.50

10

0151708508
ref: 10

BOLT

€ 3.50

11

0831012088
ref: 11

NUT

€ 2.00

12

0832121088
ref: 12

LOCK WASHER

€ 2.00

13

0832211088
ref: 13

WASHER

€ 2.00

14

0110710558
ref: 14

BOLT 10X55

€ 3.50

15

0831011108
ref: 15

NUT

€ 2.50

16

0832131108
ref: 16

LOCK WASHER

€ 2.00

17

0832211108
ref: 17

WASHER

€ 2.50

18

0110710408
ref: 18

BOLT 10X40

€ 3.00

19

0832121108
ref: 19

LOCK WASHER

€ 2.00

20

5621127200291
ref: 20

HOLDER,HANDLE UPR

€ 13.50

21

0120408357
ref: 21

BOLT

€ 3.50

22

0832121088
ref: 22

LOCK WASHER

€ 2.00

23

5163128000
ref: 23

NUT,STEERING STEM(25X44X10)

€ 12.50

24

5164349001
ref: 24

DUST SEAL,STEERING,UPPER

€ 7.50

25

0926525008
ref: 25

TAPER,ROLLER BEARING

€ 48.50

26

5187147000
ref: 26
E15, E26

COVER, FRONT FORK

€ 28.50

27

5187045000
ref: 27
E22

COVER,FRONT FORK

€ 54.00

28

5187447000
ref: 28
E22

PROTECTOR, FRONT FORK COVER

€ 4.00

29

5190022662
ref: 29
E22, E26

LOCK ASSEMBLY,STEERING (NEI

€ 168.50

30

5190045400
ref: 30
E15

LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE

€ 0.00

all assemblies
