STEERING STEM
GS550 1980 (T) GENERAL EXPORT (E01)

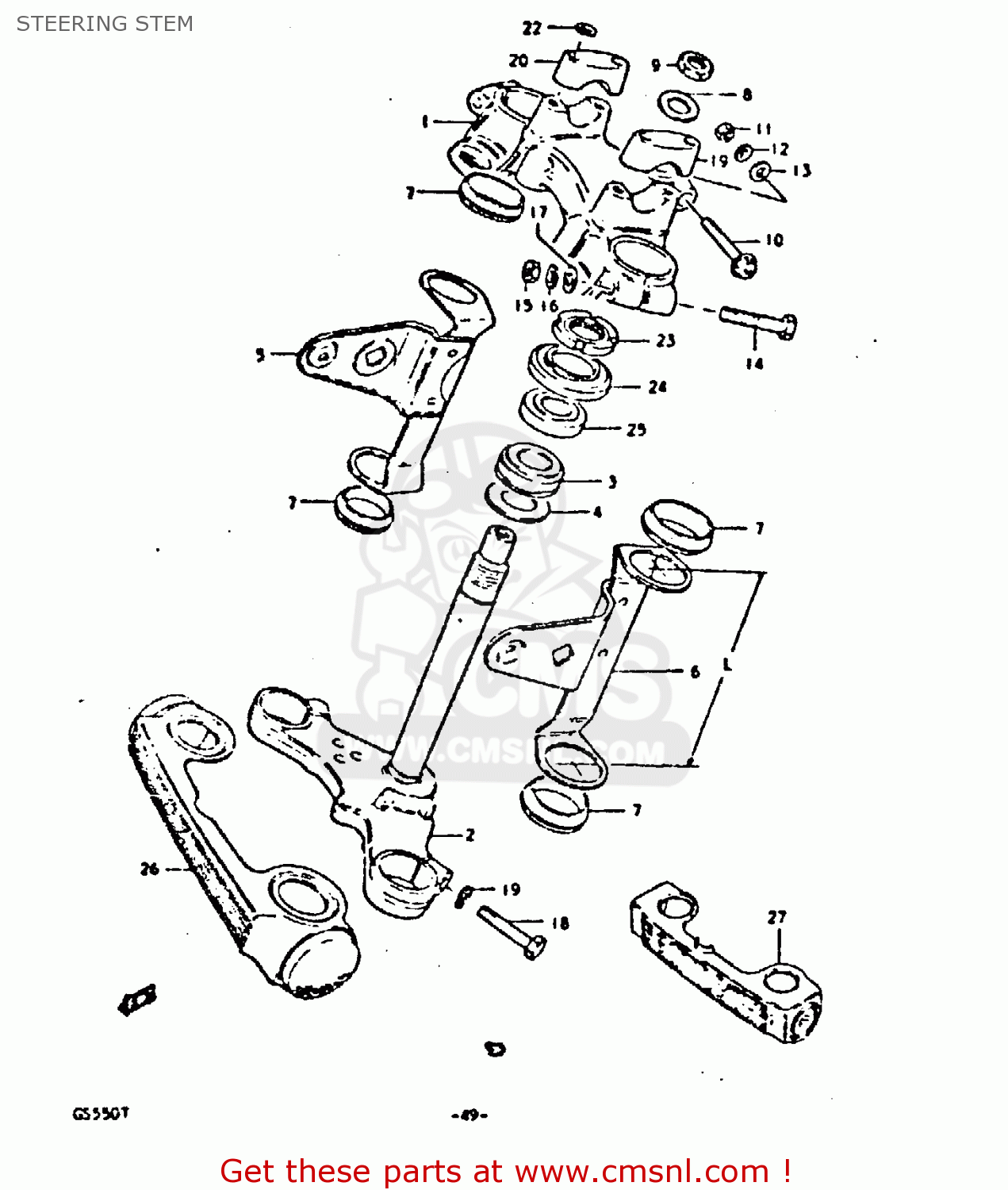

Steering stem diagram GS550 1980 (T) GENERAL EXPORT (E01)
STEERING STEM GS550 1980 (T) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
5131147000291
ref: 1
HEAD,STEERING STEM
€ 111.50
2
5140045811
ref: 2
STEM,STEERING
€ 178.50
3
0926530005
ref: 3
BEARING
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
€ 4.00
5
5153047001291
ref: 5
BRACKET,HEADLAMP,RIGHT
€ 58.00
6
5154047001291
ref: 6
BRACKET,HEADLAMP,LEFT
€ 34.00
7
5155347000
ref: 7
CUSHION,HEADLAMP BRACKET
€ 3.50
8
5135631700
ref: 8
WASHER
€ 9.50
9
5135345000
ref: 9
NUT,FR FORK UPR BRACKET
€ 10.50
10
0151708508
ref: 10
BOLT
€ 3.50
11
0831012088
ref: 11
NUT
€ 2.00
12
0832121088
ref: 12
LOCK WASHER
€ 2.00
13
0832211088
ref: 13
WASHER
€ 2.00
14
0110710558
ref: 14
BOLT 10X55
€ 3.50
15
0831011108
ref: 15
NUT
€ 2.50
16
0832131108
ref: 16
LOCK WASHER
€ 2.00
17
0832211108
ref: 17
WASHER
€ 2.50
18
0110710408
ref: 18
BOLT 10X40
€ 3.00
19
0832121108
ref: 19
LOCK WASHER
€ 2.00
20
5621127200291
ref: 20
HOLDER,HANDLE UPR
€ 13.50
21
0120408357
ref: 21
BOLT
€ 3.50
22
0832121088
ref: 22
LOCK WASHER
€ 2.00
23
5163128000
ref: 23
NUT,STEERING STEM(25X44X10)
€ 12.50
24
5164349001
ref: 24
DUST SEAL,STEERING,UPPER
€ 7.50
25
0926525008
ref: 25
TAPER,ROLLER BEARING
€ 48.50
26
5187047000
ref: 26
COVER,FR FORK
€ 42.00
27
NOTUSED
ref: 27
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
