WIRING HARNESS
GS550 1980 (T) GENERAL EXPORT (E01)

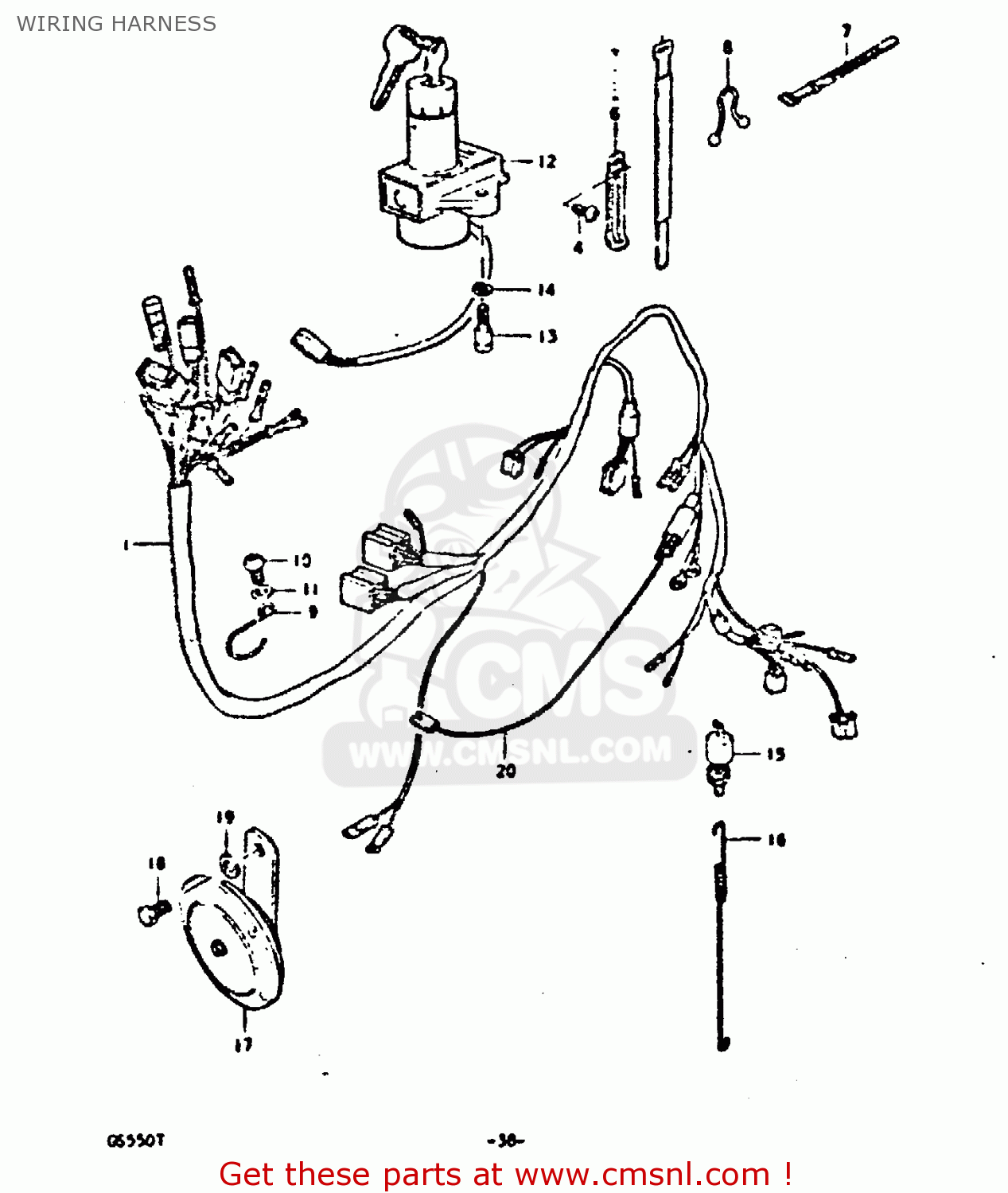

Wiring harness diagram GS550 1980 (T) GENERAL EXPORT (E01)
WIRING HARNESS GS550 1980 (T) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
NOTUSED
ref: 1-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-2
3661047040
ref: 1-2
E2
WIRING HARNESS
€ 181.50
2
0940718301
ref: 2
CLAMP
€ 6.00
3
0940406415
ref: 3
CLAMP
€ 3.00
4
0211206108
ref: 4
SCREW
€ 1.50
5
0940406414
ref: 5
CLAMP
€ 3.00
6
0940406402
ref: 6
CLAMP
€ 2.50
7
0940712402
ref: 7
CLAMP(L:120)
€ 3.00
8
0940800011
ref: 8
CLAMP
€ 2.00
9
3661944000
ref: 9
GUIDE,WIRING HARNESS
€ 2.50
10
0211206128
ref: 10
SCREW 6X12
€ 2.00
11
0832221068
ref: 11
WASHER
€ 2.00
12-1
3710047010
ref: 12-1
LOCK ASSEMBLY,STEERING
€ 127.50
12-2
NOTUSED
ref: 12-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
13
3715247010
ref: 13
BOLT
€ 3.00
14
0832121068
ref: 14
LOCK WASHER
€ 2.50
15
3761053011
ref: 15
SWITCH ASSY,BRAKE LAMP
€ 34.50
16-1
0944306021
ref: 16-1
FOR CAST WHEELS
SPRING
€ 5.50
16-2
0944306018
ref: 16-2
FOR SPOK WHEELS
SPRING
€ 4.50
17
3850247000
ref: 17
HORN ASSEMBLY,LOW PITCH
€ 77.00
18
0110708128
ref: 18
BOLT 8X12
€ 2.50
19
0832211088
ref: 19
WASHER
€ 2.00
20
3685345000
ref: 20
WIRE
€ 9.50
