REAR MASTER CYLINDER
GS550 1980 (T) GENERAL EXPORT (E01)

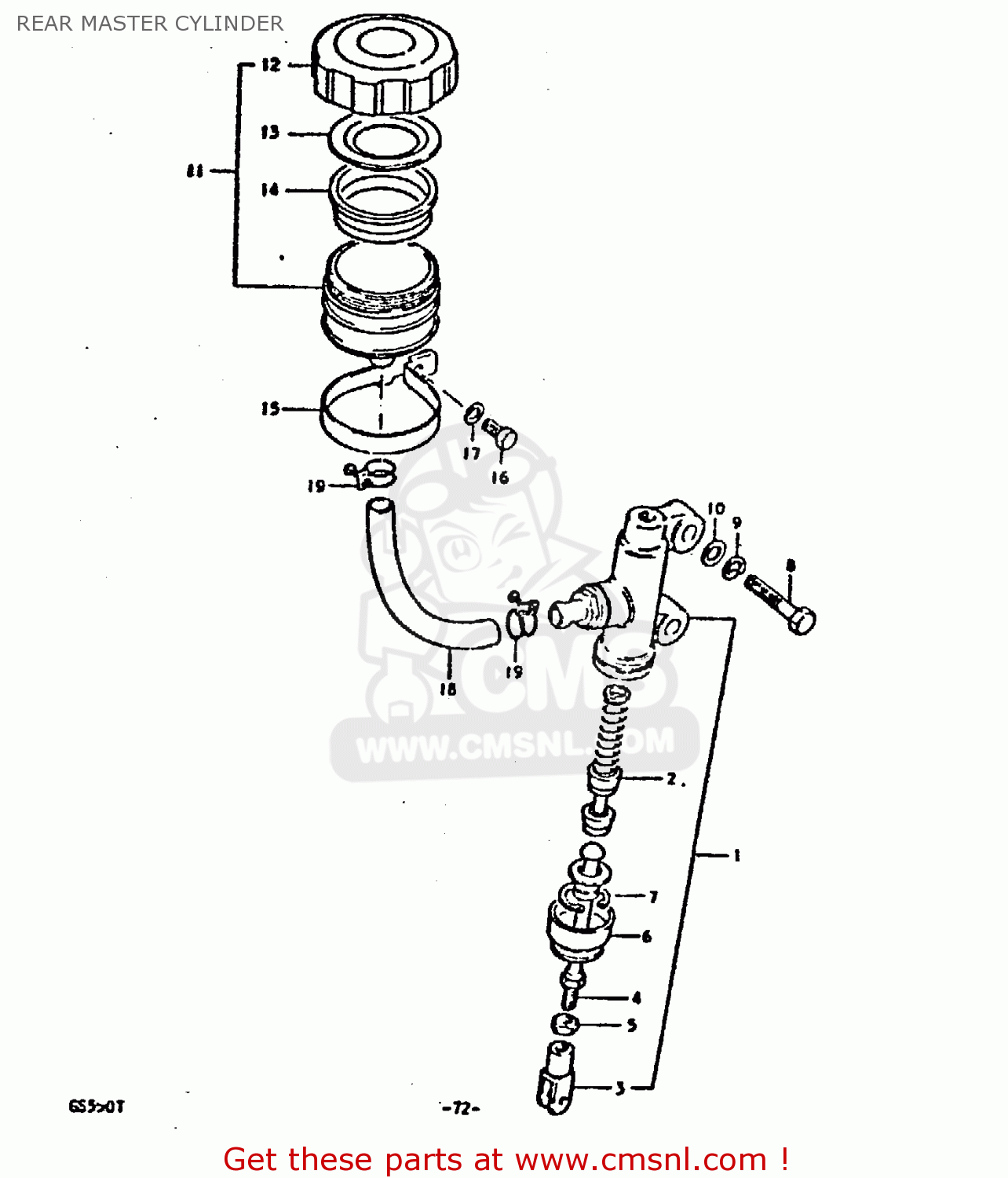

Rear master cylinder diagram GS550 1980 (T) GENERAL EXPORT (E01)
REAR MASTER CYLINDER GS550 1980 (T) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
6960047001
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
€ 182.00
2
6960045810
ref: 2
PISTON/CUP SET
€ 53.00
3
6969245001
ref: 3
YOKE
€ 11.00
4
6967045000
ref: 4
ROD,PUSH
€ 18.50
5
0831012088
ref: 5
NUT
€ 2.00
6
6969145001
ref: 6
BOOT
€ 6.50
7
5116270040
ref: 7
CIRCLIP
€ 3.00
8
0110708308
ref: 8
BOLT (8X30)
€ 2.50
9
0832121088
ref: 9
LOCK WASHER
€ 2.00
10
0832211088
ref: 10
WASHER
€ 2.00
11
6974047001
ref: 11
TANK ASSEMBLY,RESERVOIR
€ 41.00
12
5966918605
ref: 12
CAP
€ 16.50
13
5966818441
ref: 13
PLATE,DIAPHRAGM
€ 3.50
14
5966718441
ref: 14
DIAPHRAGM
€ 8.50
15
0940251001
ref: 15
CLAMP
€ 6.50
16
0110706168
ref: 16
BOLT, UPPER
€ 3.00
17
0832121068
ref: 17
LOCK WASHER
€ 2.50
18
6973147000
ref: 18
HOSE,RESERVOIR TANK
€ 34.00
19
0940016301
ref: 19
CLAMP
€ 4.50
