FRONT CALIPERS (SINGLE DISK)

GS550 1980 (T) GENERAL EXPORT (E01)

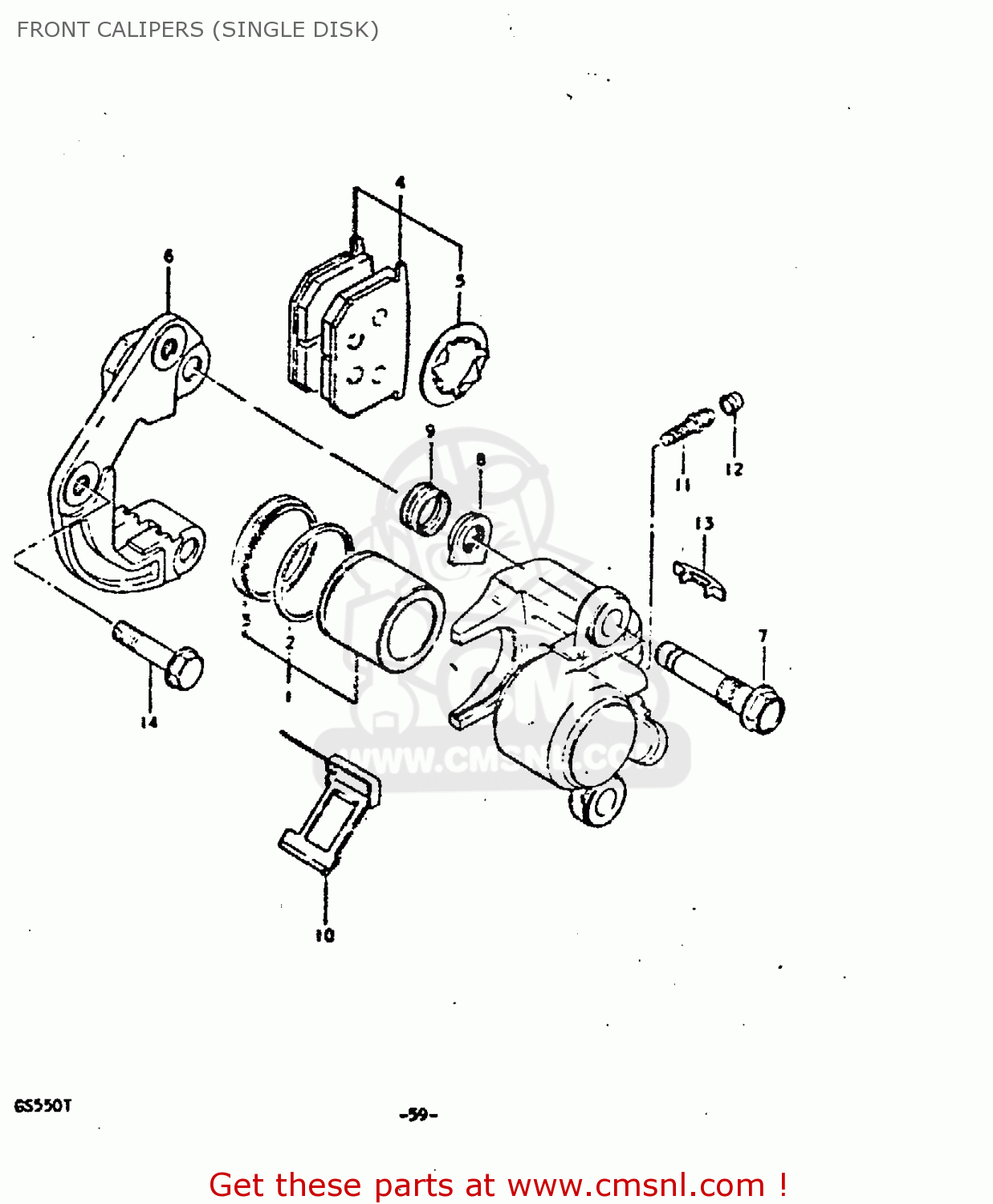

Front calipers (single disk) diagram GS550 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

5930049050
ref: 0

CALIPERS ASSY, LH

€ 142.00

5930049830
ref: 1

PISTON SET

€ 35.00

5930745020
ref: 2

SEAL,PISTON

€ 8.50

5930849050
ref: 3

BOOT,PISTON

€ 7.50

5930049820
ref: 4

PAD & SHIM SET (MCA)

€ 91.00

5937149000
ref: 5

SHIM,PAD

€ 7.00

5935149000
ref: 6

BRACKET

€ 83.50

5930549000
ref: 7

AXLE,CALIPER

€ 42.00

5931749000
ref: 8

NUT,CALIPER AXLE

€ 14.00

5931249000
ref: 9

BOOT

€ 30.00

5931549000
ref: 10

SPRING

€ 9.50

5912147050
ref: 11

BREATHER

€ 11.50

5247460020
ref: 12

CAP,BLEEDER PL

€ 6.00

5932449000
ref: 13

COVER,INDICATOR

€ 12.50

0910310019
ref: 14

BOLT(10X37)

€ 2.50
