REAR BRAKE
GS550 1980 (T) GENERAL EXPORT (E01)

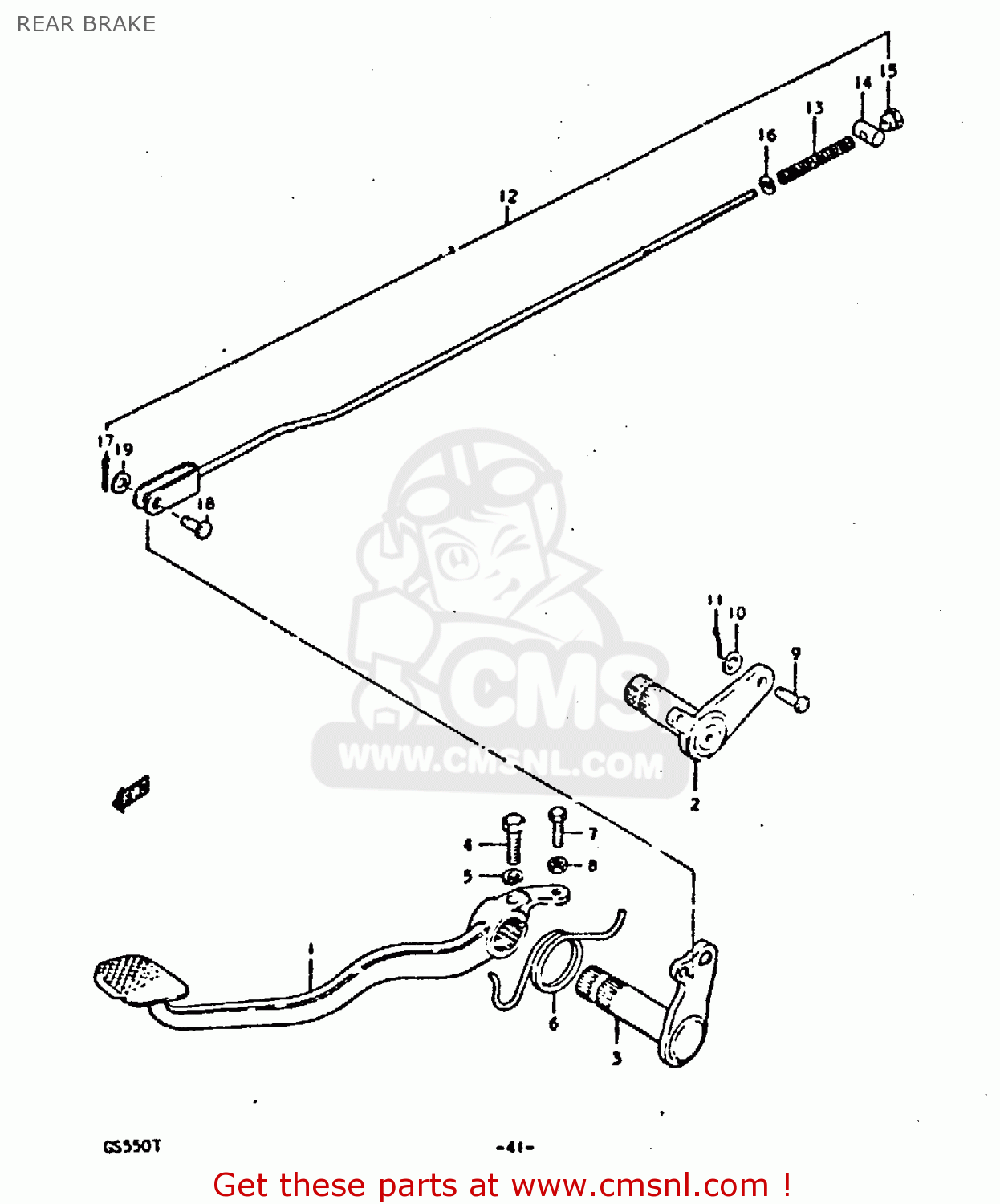

Rear brake diagram GS550 1980 (T) GENERAL EXPORT (E01)
REAR BRAKE GS550 1980 (T) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4311047000
ref: 1
PEDAL,BRAKE
€ 60.50
2
4312047600
ref: 2
FOR CAST WHEEL
ARM,BRAKE PEDAL ROD
€ 31.00
3
4312047000
ref: 3
FOR SPOKE WHEEL
ARM,BRAKE PEDAL
€ 41.50
4
0110708258
ref: 4
BOLT
€ 2.50
5
0832121088
ref: 5
LOCK WASHER
€ 2.00
6
0944837002
ref: 6
SPRING
€ 5.50
7
0110706208
ref: 7
BOLT
€ 2.00
8
0831011068
ref: 8
NUT
€ 2.50
9
0920006029
ref: 9
FOR CAST WHEEL
PIN
€ 1.50
10
0832221068
ref: 10
FOR CAST WHEEL
WASHER
€ 2.00
11
0411120158
ref: 11
FOR CAST WHEEL
PIN
€ 1.50
12
4330047000
ref: 12
FOR SPOKE WHEEL
ROD ASSEMBLY,REAR BRAKE
€ 15.50
13
0944009004
ref: 13
FOR SPOKE WHEEL
SPRING
€ 2.00
14
0920913003
ref: 14
FOR SPOKE WHEEL
PIN
€ 3.50
15
0915006001
ref: 15
FOR SPOKE WHEEL
NUT
€ 3.50
16
0832221068
ref: 16
FOR SPOKE WHEEL
WASHER
€ 2.00
17
0411120208
ref: 17
FOR SPOKE WHEEL
PIN 20X20
€ 1.50
18
0920006013
ref: 18
FOR SPOKE WHEEL
PIN(L:13.5)
€ 2.00
19
0832221068
ref: 19
FOR SPOKE WHEEL
WASHER
€ 2.00
