FRONT WHEEL (FOR CAST WHEEL)

GS550 1980 (T) GENERAL EXPORT (E01)

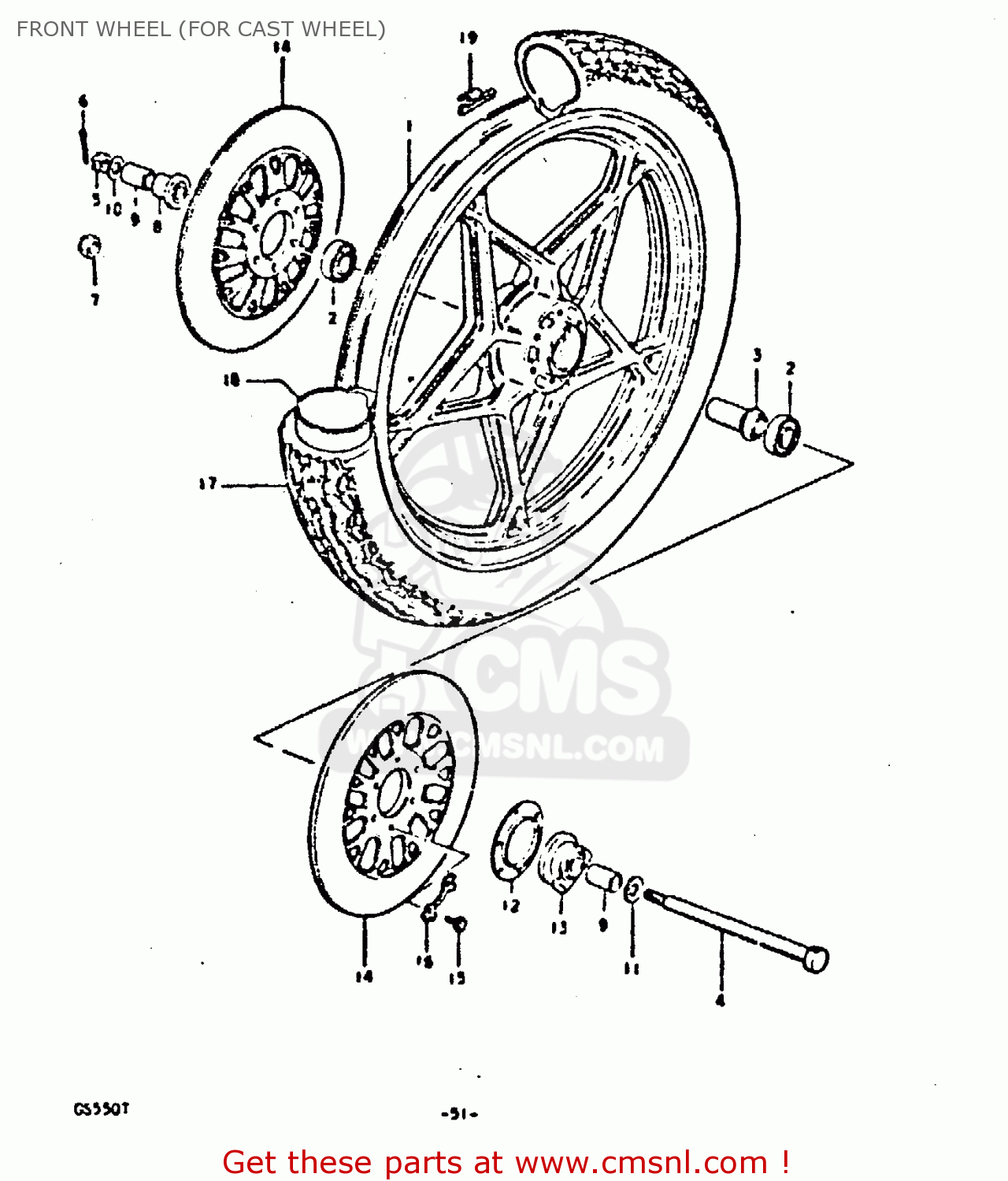

Front wheel (for cast wheel) diagram GS550 1980 (T) GENERAL EXPORT (E01)

FRONT WHEEL (FOR CAST WHEEL) GS550 1980 (T) GENERAL EXPORT (E01)

FRONT WHEEL (FOR CAST WHEEL) GS550 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5411147604
ref: 1

WHEEL, FRONT

€ 491.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

4

5471133002
ref: 4

AXLE,FRONT

€ 41.00

5

0831431128
ref: 5

NUT 12MM

€ 2.00

6

0411130308
ref: 6

COTTER PIN

€ 1.50

7

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

5474018402
ref: 8

SPACER,FR AXLE,R

€ 18.50

9

0918015034
ref: 9

SPACER(15X22X30)

€ 7.00

10

0832221128
ref: 10

WASHER

€ 2.00

11

NOTUSED
ref: 11

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12

5487145010
ref: 12

DUST SEAL,SPEEDOMETER GEAR BOX

€ 21.00

13

5460018401
ref: 13

BOX ASSEMBLY,SPEEDOMETER GEAR

€ 90.50

14

5921145200
ref: 14

DISC,FR BRAKE

€ 144.00

15

0910008140
ref: 15

BOLT(8X25)

€ 2.00

16

0916908016
ref: 16

WASHER

€ 3.50

17-1

NOTUSED
ref: 17-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

17-2

5510047615
ref: 17-2
E2

TIRE,FRONT

€ 0.00

18

5520015010
ref: 18

TUBE,INNER

€ 41.00

19-1

5541147001
ref: 19-1

BALANCER,WHEEL

€ 4.00

19-2

5541247001
ref: 19-2

BALANCER,WHEEL

€ 3.50
