OPTIONAL

GS550 1980 (T) GENERAL EXPORT (E01)

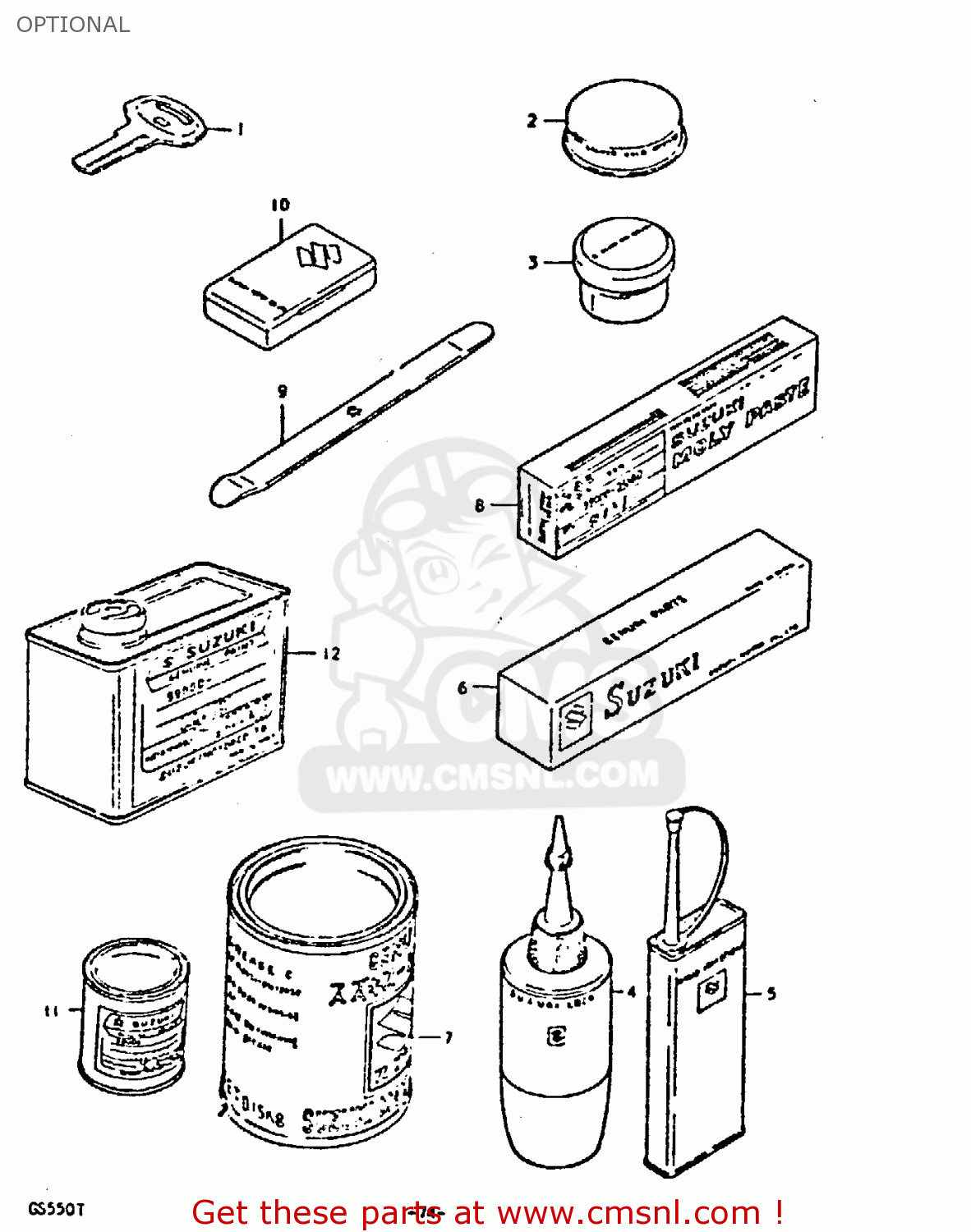

Optional diagram GS550 1980 (T) GENERAL EXPORT (E01)

OPTIONAL GS550 1980 (T) GENERAL EXPORT (E01)

OPTIONAL GS550 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3714647010
ref: 1

KEY,BLANK

€ 15.00

2

9900025100
ref: 2

GREASE,SILICON 20G

€ 11.50

3

9900025110
ref: 3

GREASE,PBC FOR BRK PAD 20G

€ 44.00

4

9900032030
ref: 4
NET:50G

THREAD LOCK NO.1303B PURPL 50G

€ 40.00

5

9900032040
ref: 5
NET:200G

THREAD LOCK NO.1401 CLEAR 200G

€ 92.50

6

9900031030
ref: 6
NET:100G

BOND 1104

€ 92.50

7

9900025030
ref: 7
NET:150G

GREASE(C)EP2 LITHIUM 150G

€ 8.00

8

9900025140
ref: 8
NET:50G

SUZUKI MOLY PASTE

€ 12.00

9

0982500002
ref: 9

LEVER,TIRE

€ 16.50

10

0982600001
ref: 10

TUBE REPARING TOOL

€ 6.50

11-1

9900010109019
ref: 11-1
NET:90G

PAINT,BLACK

€ 16.00

11-2

9900010109291
ref: 11-2
NET:90G

PAINT,BLACK

€ 9.00

11-3

9900010209712
ref: 11-3
NET:90G

PAINT (CANDY GYPSY RED)

€ 39.00

11-4

990001020905K
ref: 11-4
NET:90G

PAINT (MARBLE CANADIAN BLUE)

€ 0.00

12-1

9900010105019
ref: 12-1
NET:500G

PAINT (BLACK)

€ 9.00

12-2

9900010105291
ref: 12-2
NET:500G

PAINT (BLACK SEMI-GLOSS)

€ 9.00

12-3

9900010205712
ref: 12-3
NET:500G

PAINT (CANDY GYPSY RED)

€ 0.00

12-4

990001020505K
ref: 12-4
NET:500G

PAINT (MARBLE CAADIAN BLUE)

€ 0.00

13-1

1140047819
ref: 13-1
NOT SHOWN

GASKET SET

€ 202.00

13-2

1140047840
ref: 13-2
E22

GASKET SET

€ 202.00
