CHAIN CASE - SHOCK ABSORBER

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

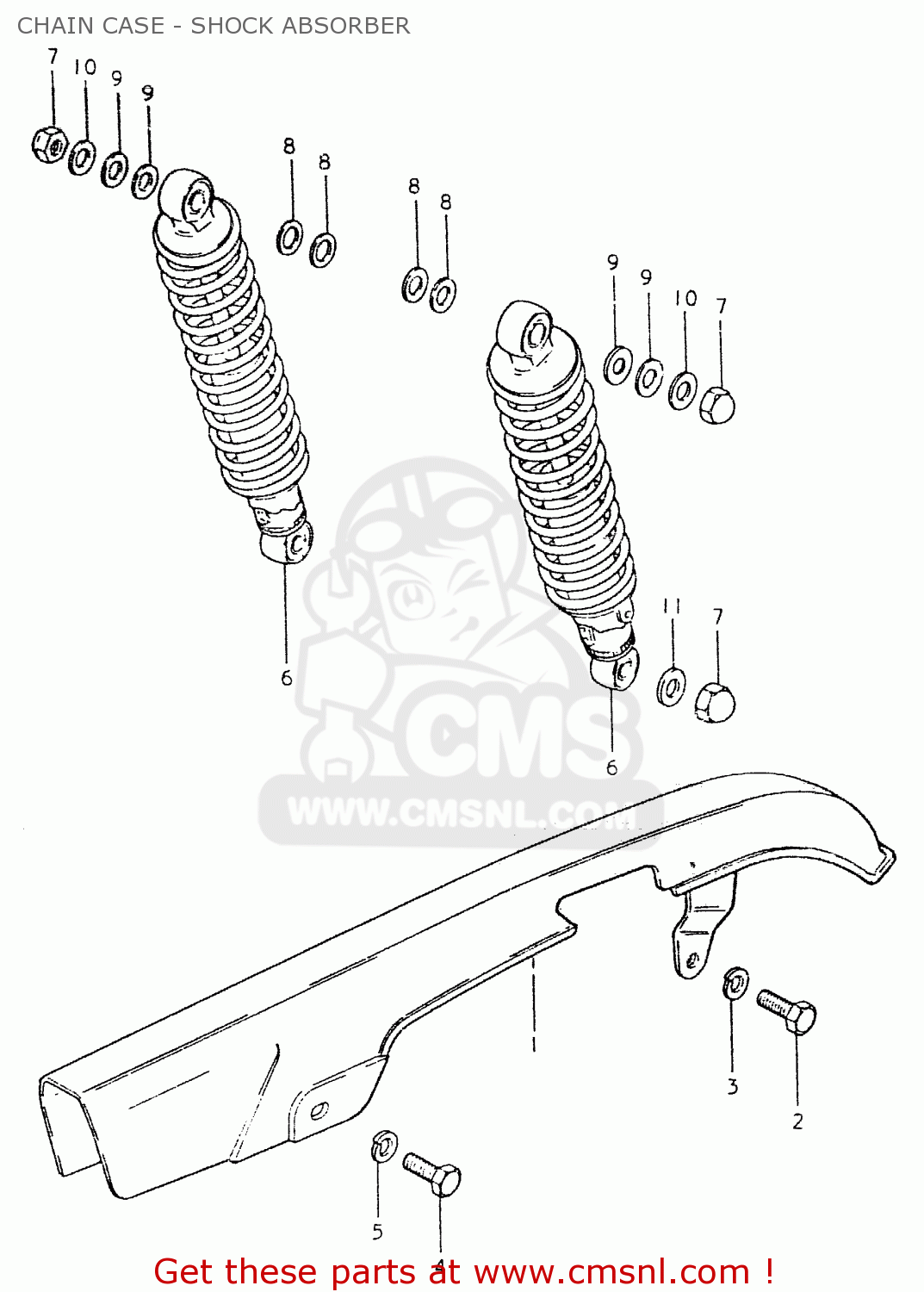

Chain case - shock absorber diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

CHAIN CASE - SHOCK ABSORBER GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

CHAIN CASE - SHOCK ABSORBER GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

6131047201
ref: 1
TO 61310-47202

CASE,CHAIN

€ 70.50

2

0110706128
ref: 2

BOLT

€ 2.00

3

0832121068
ref: 3

LOCK WASHER

€ 2.50

4

0110706108
ref: 4

BOLT

€ 2.00

5

0832121068
ref: 5

LOCK WASHER

€ 2.50

6

6210047220
ref: 6

ABSORBER ASSEMBLY,REAR SHOCK

€ 0.00

7

0831311108
ref: 7

NUT, LOWER LH

€ 2.50

8

0832211128
ref: 8

WASHER

€ 2.00

9

0916010001
ref: 9

WASHER

€ 2.00

10

0916010033
ref: 10

WASHER(10.5X24X3.2)

€ 2.00

11

0916010001
ref: 11

WASHER

€ 2.00
