WIRING HARNESS

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

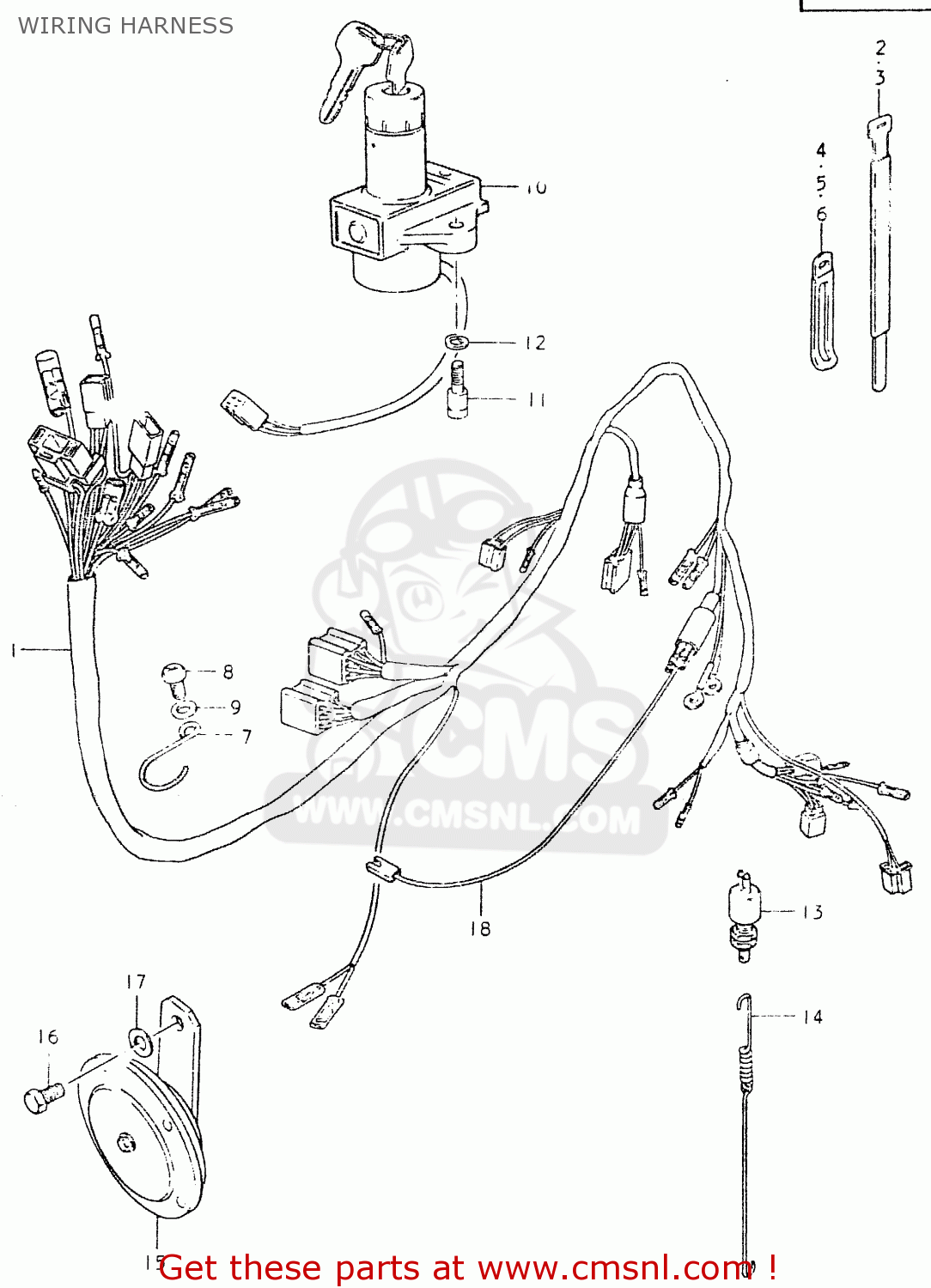

Wiring harness diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

3661047220
ref: 1

WIRING HARNESS

€ 159.50

0940718301
ref: 2

CLAMP

€ 6.00

0940712402
ref: 3

CLAMP(L:120)

€ 3.00

0940406415
ref: 4

CLAMP

€ 3.00

0940406414
ref: 5

CLAMP

€ 3.00

0940406402
ref: 6

CLAMP

€ 2.50

3661944000
ref: 7

GUIDE,WIRING HARNESS

€ 2.50

0211206128
ref: 8

SCREW 6X12

€ 2.00

0832211068
ref: 9

WASHER 6MM

€ 2.00

3710047010
ref: 10

LOCK ASSEMBLY,STEERING

€ 127.50

3711047000
ref: 10
E22,E26

SWITCH ASSEMBLY,IGNITION

€ 119.50

3715247010
ref: 11

BOLT

€ 3.00

0832121068
ref: 12

LOCK WASHER

€ 2.50

3761053011
ref: 13

SWITCH ASSY,BRAKE LAMP

€ 34.50

0944306021
ref: 14

SPRING

€ 5.50

3850247000
ref: 15

HORN ASSEMBLY,LOW PITCH

€ 77.00

0110708128
ref: 16

BOLT 8X12

€ 2.50

0832211088
ref: 17

WASHER

€ 2.00

3685345000
ref: 18

WIRE

€ 9.50
