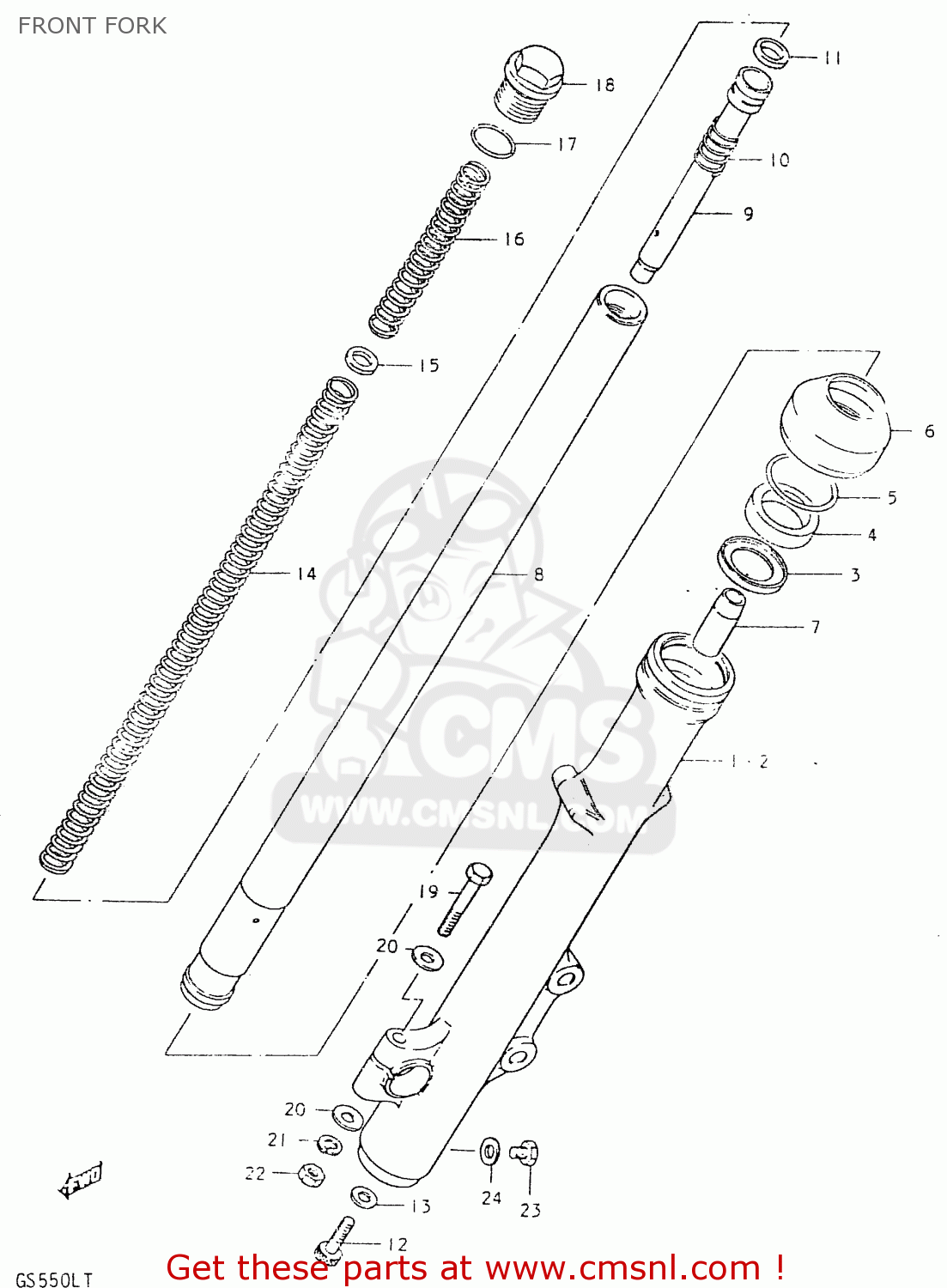

FRONT FORK

ref

part #

description

quantity

0

5110347210
ref: 0

DAMPER ASSY, RH

€ 209.50

0

5110447211
ref: 0

DAMPER ASSY, LH

€ 209.50

1

5113047210
ref: 1

OUTER TUBE, RH

€ 0.00

2

5114047211
ref: 2

OUTER TUBE, LH

€ 0.00

3

5116845031
ref: 3

SPACER,SEAL

€ 5.00

4

5115345030
ref: 4

OIL SEAL,FRONT FORK

€ 14.00

5

5115631231
ref: 5

CIRCLIP,FORK OIL SEAL

€ 3.50

6

5157131232
ref: 6

BOOT

€ 19.50

7

5119545030
ref: 7

PIECE,OIL LOCK

€ 16.00

8

5111047200
ref: 8

TUBE,FORK,INNER

€ 59.50

9

5114647200
ref: 9

CYLINDER,FRONT FORK

€ 0.00

10

5117745030
ref: 10

SPRING,FORK REBOUND

€ 4.00

11

5119631230
ref: 11

RING

€ 7.50

12

5114748130
ref: 12

BOLT(8X27)

€ 3.50

13

5114831030
ref: 13

GASKET (NAS)

€ 4.00

14

5118447200
ref: 14

SPRING,FRONT FORK MAIN,LOWER

€ 26.50

15

5119247200
ref: 15

WASHER,SPRING

€ 2.50

16

5117145030
ref: 16

SPRING,FRONT FORK,UPPER

€ 9.50

17

5111731030
ref: 17

O-RING

€ 3.50

18

5135131030
ref: 18

CAP,INNER TUBE

€ 34.50

19

0110708508
ref: 19

BOLT 8X50

€ 3.00

20

0832221088
ref: 20

WASHER

€ 2.00

21

0832121088
ref: 21

LOCK WASHER

€ 2.00

22

0831012088
ref: 22

NUT

€ 2.00

23

0110706108
ref: 23

BOLT

€ 2.00

24

5118331030
ref: 24

GASKET,DRAIN,PLUG (NAS)

€ 4.00

all assemblies
