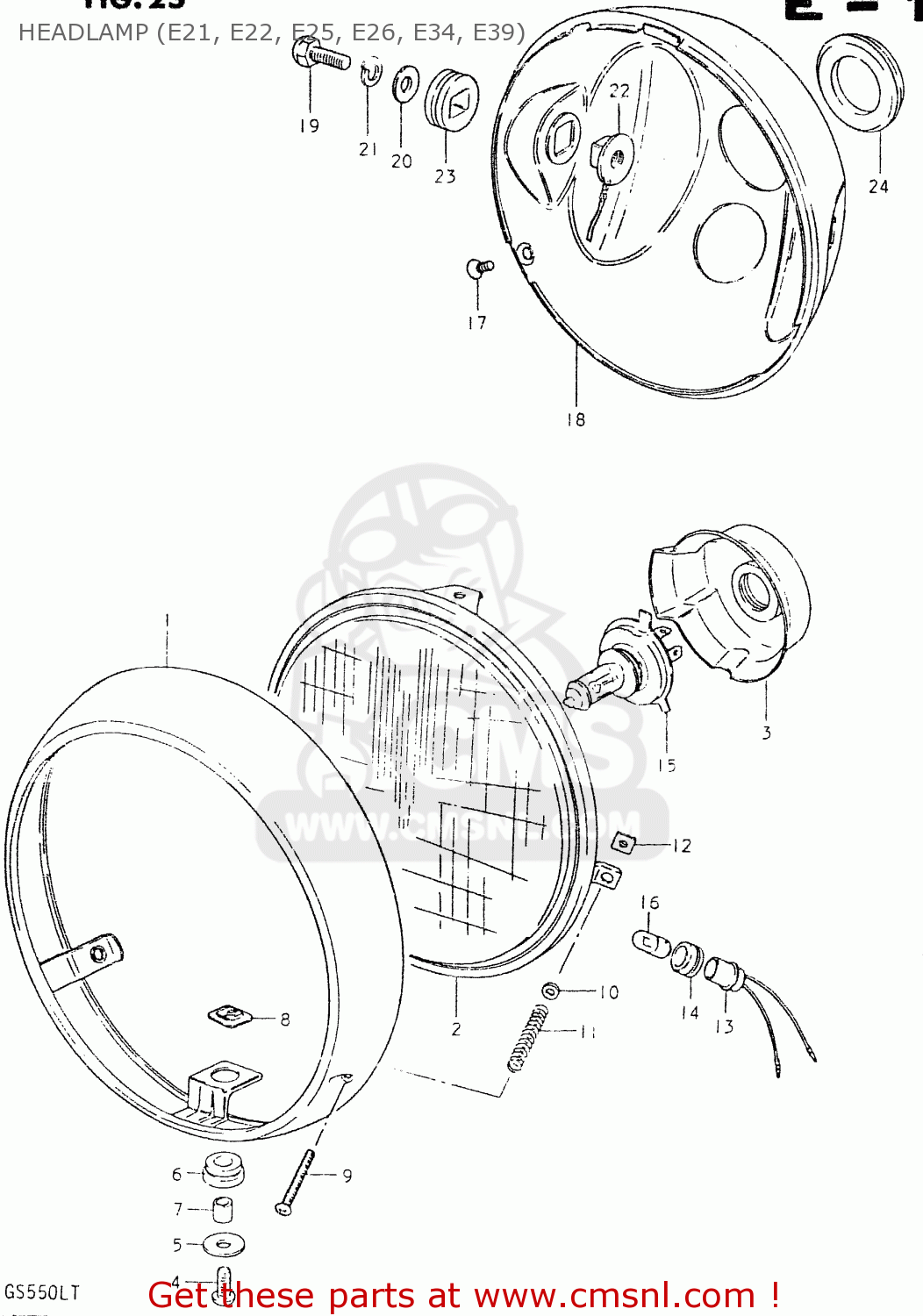

HEADLAMP (E21, E22, E25, E26, E34, E39)

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

Headlamp (e21, e22, e25, e26, e34, e39) diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

3510045260999
ref: 0

HEADLAMP ASSY

€ 249.00

3511145221
ref: 1

RIM

€ 50.50

3512145260
ref: 2

LAMP UNIT

€ 141.50

3517345230
ref: 3

COVER,HEADLAMP SOCKET

€ 13.00

0211205168
ref: 4

SCREW

€ 2.50

3513845230
ref: 5

WASHER

€ 2.00

3513945230
ref: 6

CUSHION

€ 1.50

3513345230
ref: 7

SPACER

€ 2.00

3515548510
ref: 8

NUT

€ 2.00

3515148510
ref: 9

SCREW,HEADLAMP ADJUST

€ 3.50

3515748510
ref: 10

WASHER

€ 2.50

3515445230
ref: 11

SPRING,HEADLAMP ADJUST

€ 3.00

3515248510
ref: 12

NUT,HEADLAMP ADJUSTER

€ 3.00

3611830691
ref: 13

SOCKET

€ 12.00

3611622630
ref: 14

JOINT,RUBBER

€ 5.00

0947112060
ref: 15
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

0947112032
ref: 16
EXECUTED LOCALLY

BULB

€ 6.00

0213205108
ref: 17

SCREW

€ 1.00

5181033600
ref: 18

HOUSING,HEADLAMP

€ 72.00

0120408207
ref: 19

BOLT

€ 3.00

0832211088
ref: 20

WASHER

€ 2.00

0832121088
ref: 21

LOCK WASHER

€ 2.00

5182136200
ref: 22

SPACER,HEADLAMP HOUSING

€ 7.50

5182727302
ref: 23

CUSHION,HEADLAMP HOUSING

€ 3.00

5184531031
ref: 24

GROMMET,HEADLAMP HOUSING

€ 4.00

HEADLAMP (E21, E22, E25, E26, E34, E39)

all assemblies
