CYLINDER HEAD

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

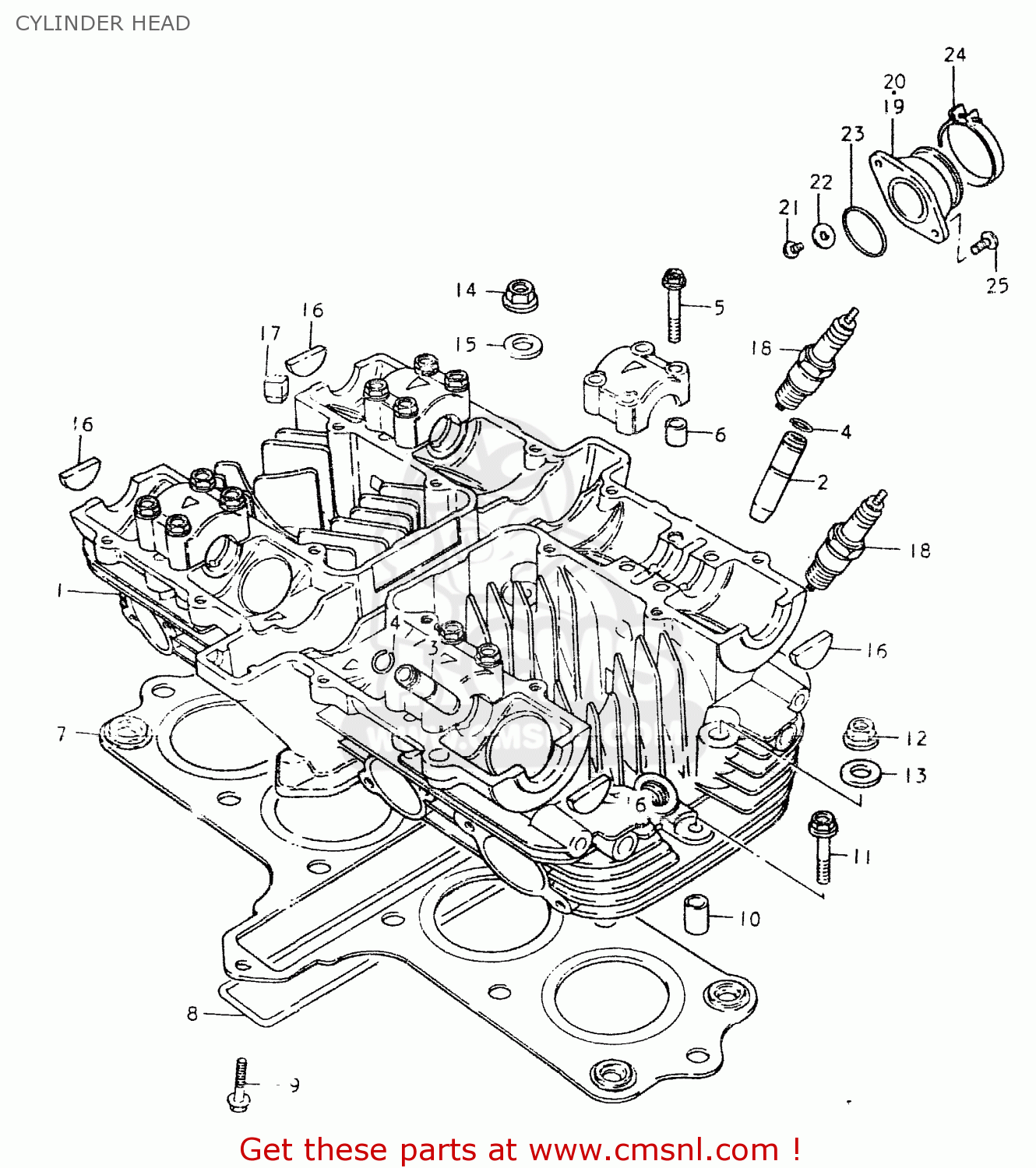

Cylinder head diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

CYLINDER HEAD GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)
CYLINDER HEAD GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)
CYLINDER HEAD GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1110047870
ref: 1
HEAD ASSEMBLY,CYLINDER
€ 458.00
2
1111547730
ref: 2
TO 11115-47740
GUIDE,VALVE
1111547730
€ 18.50
3
1111647740
ref: 3
FROM 11116-47730
GUIDE,EXHAUST VALVE
1111647740
€ 17.50
4
0938110003
ref: 4
RING,SNAP
0938110003
€ 2.50
5
0910306026
ref: 5
BOLT(6X39)
0910306026
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7
1114147084
ref: 7
GASKET,CYLINDER HEAD (MCA)
1114147084
€ 118.00
8
0928099003
ref: 8
O RING(D:3,ID:26X157)
0928099003
€ 34.00
9
0151706308
ref: 9
BOLT
€ 2.00
10
0421111189
ref: 10
PIN
0421111189
€ 2.00
11
0151706458
ref: 11
BOLT,UNDER
0151706458
€ 2.50
12
0915908029
ref: 12
NUT
0915908029
€ 6.00
13
0916808009
ref: 13
GASKET (NAS)
0916808009
€ 4.50
14
0915908031
ref: 14
NUT
0915908031
€ 2.00
15
0916008039
ref: 15
WASHER(8.5X19X2.3)
0916008039
€ 2.00
16
0924123002
ref: 16
PLUG
0924123002
€ 8.50
17
1115245000
ref: 17
PAD
1115245000
€ 3.50
18
0948200225
ref: 18
SPARK PLUG
€ 3.00
18
0948200196
ref: 18
SPARK PLUG W24ES-U
€ 3.50
19
1311047010
ref: 19
PIPE,INTAKE,R
1311047010
€ 40.00
20
1312047010
ref: 20
PIPE,INTAKE,L
1312047010
€ 38.00
21
0910605006
ref: 21
BOLT
0910605006
€ 2.00
22
0916805010
ref: 22
GASKET(5.3X9.3X1.2) (NAS)
0916805010
€ 2.00
23
0928038003
ref: 23
O-RING
0928038003
€ 4.50
24
0940250306
ref: 24
CLAMP
0940250306
€ 6.00
25
0211206168
ref: 25
SCREW
0211206168
€ 2.50
